IJNSA 01

Classification of Source Code Vulnerabilities and Analysis of Detection Methods: Evaluation, Comparison, and Proposed
Approaches

Nin Ho Le Viet ^1,2 , Chieu Ta Quang ² , Cuong Nguyen Van ³ and Tuan Nguyen Kim ³ , ¹Duy Tan University, Vietnam,
²Thuyloi University, Vietnam, ³Phenikaa University, Vietnam

ABSTRACT

Source code vulnerabilities are an important cause leading to many information security incidents in modern software systems. Due to the diversity of causes and technical characteristics, source code vulnerability detection is difficult to be effectively addressed by a single method. This paper focuses on classifying, evaluating, and comparing source code vulnerability detection methods in order to provide a systematic view of this problem. The first contribution of the paper is to develop a classification approach for source code vulnerabilities based on causes and technical characteristics, thereby clarifying the nature of each vulnerability group. Next, the paper analyzes and evaluates common detection method categories, including static analysis, dynamic analysis, and machine learning and deep learning based methods, with consideration of the application scope and characteristic limitations of each approach. On that basis, the paper conducts an overall comparison among the methods to indicate that there does not exist a single technique that can effectively detect every type of source code vulnerability. Finally, the paper proposes a combined approach to leverage the advantages of different methods in source code vulnerability detection. The results and analyses in the paper are expected to support researchers and software engineers in evaluating, selecting, and orienting the development of vulnerability detection solutions in the future.

KEYWORDS
Source code vulnerabilities, Software security, Vulnerability detection, Static and dynamic analysis, Machine learning

1. INTRODUCTION

In modern information systems, software plays a central role in delivering services across critical domains such as e-government, finance, healthcare, cloud computing, and artificial intelligence. As software systems become larger and more interconnected, source code vulnerabilities have remained a major root cause of security incidents, leading to system compromise, data leakage, and service disruption. In practice, vulnerabilities may arise from diverse causes and manifest in different technical forms, ranging from memory management errors such as buffer overflow [1], out-of-bounds access [2], and use-after-free [3], to input handling flaws such as SQL injection [4], command injection [5], and format string vulnerabilities [6]. Many vulnerabilities, especially those depending on program logic and context, may not trigger immediate runtime failures and only appear under specific execution scenarios, which makes detection particularly difficult.

Static analysis inspects programs without execution, leveraging syntactic rules and program analysis techniques to identify suspicious patterns early in the development process. While widely adopted, static analysis often suffers from high false positives and limited capability in handling context-dependent vulnerabilities. Dynamic analysis and fuzzing, in contrast, focus on runtime behaviors and input-driven testing to uncover vulnerabilities that only manifest during execution. Although such techniques can provide stronger evidence of exploitability, their effectiveness depends heavily on test coverage and the diversity of generated inputs. More recently, machine learning and deep learning based methods have been proposed to exploit statistical and structural features of source code for automated vulnerability detection [7]. These learning-based approaches reduce reliance on handcrafted rules, yet their performance still depends on the quality of training data, feature representation, and generalization capability.

Despite notable progress, source code vulnerability detection remains a complex problem in which no single technique can reliably detect all vulnerability types across real-world settings. Many existing works focus on improving individual detection methods or reporting performance on limited vulnerability sets, while the relationship between vulnerability characteristics and method suitability is often not made explicit. As a result, selecting appropriate detection techniques for complex, multi-language software systems remains challenging. This observation motivates the need for a systematic perspective that (i) Clarifies vulnerability categories, (ii) Analyzes detection methods under consistent criteria, and (iii) Supports hybrid-oriented thinking, where complementary methods can be combined to mitigate individual limitations.

To address this need, this paper adopts a structured and analytical viewpoint on source code vulnerability detection. Rather than proposing a single algorithm and claiming universal superiority, the paper focuses on organizing the problem space and providing a coherent comparison that supports both research understanding and practical decision making. The main contributions of this paper are threefold:

(i) Vulnerability classification by causes and technical characteristics: The paper develops a classification approach that groups vulnerabilities according to their causes and technical manifestations, thereby clarifying the nature and detection challenges of each group, including memory-related vulnerabilities[8] and input handling vulnerabilities [9].

(ii) Evaluation and comparison of major detection method categories: The paper analyzes representative method groups, static analysis, dynamic analysis/fuzzing [10], and learning-based approaches [11], and compares them using consistent qualitative criteria, highlighting their strengths, limitations, and applicability boundaries across vulnerability types.

(iii) Hybrid-oriented direction and proposed approach discussion: Based on the comparative findings, the paper discusses a combined approach that leverages complementary advantages of different techniques, aligning with recent hybridoriented research trends [12]. The experimental part is used to illustrate feasibility and to support the evaluation and comparison statements, rather than aiming at large-scale optimization or state-of-the-art claims.

2. SOURCE CODE VULNERABILITY CLASSIFICATION

Source code vulnerabilities appear in diverse forms due to differences in causes, technical characteristics, and exploitation contexts. Since each type exhibits distinct structural and behavioral properties, treating vulnerabilities as a homogeneous group limits effective analysis and evaluation of detection methods. Vulnerability classification clarifies the relationship between vulnerability characteristics and detection capabilities, providing a structured basis for comparing different approaches. It therefore serves as a foundational step for the analytical and comparative discussions presented in this paper.

2.1. Classification Based on Causes and Technical Characteristics

Classifying source code vulnerabilities by their causes and technical characteristics is a common approach in software security research. This perspective clarifies the relationship between code structure, runtime behavior, and exploitability, allowing vulnerabilities to be grouped into several main categories as follows: Memory management related vulnerabilities [13]: Memory management vulnerabilities occur when a program performs unsafe operations on memory regions, leading to data overwriting or unauthorized memory access. Common forms Include buffer overflow, out-of-bounds access, and use-after-free. This group of vulnerabilities is frequently encountered in programming languages that allow manual memory management, such as C and C++. The following example illustrates a buffer overflow case caused by the lack of input length control:

void copy(char *input) {
char buf[16];
strcpy(buf, input);}

In the above code snippet, if the input data exceeds the size of buf, adjacent memory regions may be overwritten. Detecting this type of vulnerability becomes difficult when the program contains multiple conditional branches or depends on dynamic input data, making it challenging for conventional testing techniques to achieve sufficient coverage.

2.2. Classification Based on Stages in The Software Development Life Cycle

In addition to cause-based classification, source code vulnerabilities can be analyzed according to the stage of the software development life cycle at which they arise. This perspective helps link vulnerabilities to appropriate detection methods and supports more effective method selection and evaluation.

Design-level vulnerabilities [17]:

Design-level vulnerabilities emerge at the early stages of the software development life cycle, when system architecture, authorization models, or business process flows are defined. Vulnerabilities in this group are typically related to inadequately designed authentication and authorization mechanisms, improper functional separation, or the lack of security constraints at the architectural level. Since they exist before concrete source code is implemented, design-level vulnerabilities are often difficult to identify through pure source code inspection. Detecting vulnerabilities at the design level requires analyzing system architecture and initial
security assumptions, rather than relying solely on program syntax or structure. If not identified early, these vulnerabilities may propagate into the implementation stage and become more difficult to remediate in later phases of the software life cycle.

Implementation-level vulnerabilities [18]:

Implementation-level vulnerabilities arise during the programming phase, when designs are translated into concrete source code. This group includes common issues such as unsafe memory management, insufficient input validation, errors in condition checking, and improper use of APIs and libraries. It is the most extensively studied group of vulnerabilities and is often directly related to the structure and content of source code. Because they occur at the implementation level, these vulnerabilities can be detected through source code inspection techniques or by observing program execution behavior. However, the effectiveness of detection strongly depends on the characteristics of each vulnerability type, as
well as the coverage capability of the applied method.

Vulnerabilities in cloud services and microservices architectures [22]:

In cloud and microservices environments, vulnerabilities may arise not only within individual services but also from their interactions. Inconsistent authentication or authorization assumptions across components can create weaknesses that are difficult to detect. For example:
@app.route(“/internal/data”)
def get_data():
return sensitive_data
While this code may appear safe in isolation, it can become vulnerable when exposed beyond its intended scope within a distributed system. Detecting such issues requires considering deployment architecture, communication flows, and configuration settings rather than evaluating services independently.
These examples show that vulnerability risk and detection requirements depend heavily on deployment context, emphasizing the need to select and combine appropriate detection methods in modern systems.

3. VULNERABILITY DETECTION METHODS

3.1. Static Analysis (SAST)

Static Application Security Testing (SAST) [24] is a widely used approach that analyzes source or intermediate code without execution, relying on predefined rules and vulnerability patterns to Overall, SAST is well suited for structure-related vulnerabilities such as memory errors and unsafe API usage, but limited for context-dependent flaws, highlighting the need for complementary methods.

3.2. Dynamic Analysis (DAST, Fuzzing)

Dynamic Application Security Testing (DAST) [25] is a group of vulnerability detection methods based on observing program behavior during execution. Unlike static analysis, DAST does not directly inspect source code structure but instead focuses on evaluating program responses to different inputs and usage scenarios. This approach is particularly suitable for vulnerabilities that only manifest when the program is executed under specific conditions. detect weaknesses early in development.

3.3. Machine Learning-based Vulnerability Detection

Traditional machine learning approaches for source code vulnerability detection [28] aim to overcome the limitations of rule-based analysis by learning from labeled source code data. Instead of relying solely on predefined patterns, these models distinguish between secure and vulnerable code through data-driven training, enabling better adaptation to diverse vulnerabilities encountered in practice.

3.5. LLM-based/Hybrid Approaches

LLM-based approaches [38] and hybrid models [39] aim to leverage large-scale semantic reasoning capabilities while addressing the limitations of individual detection methods. Rather than treating vulnerability detection purely as a classification task, these approaches integrate multiple techniques within a unified pipeline.

Representative source-code-oriented models include CodeLLaMA [40], StarCoder [41], and GPT-4 [42]. CodeLLaMA is suitable for research due to its specialization and independent deployment capability; StarCoder provides an open-source multilingual alternative; GPT-4 serves as a reasoning benchmark despite cost and reproducibility limitations.

LLM-based methods utilize pre-trained models to analyze and reason about code, either directly or through task-specific fine-tuning. In hybrid systems, LLMs are typically integrated with static analysis, dynamic analysis, or machine learning. Alerts generated by SAST or ML models can be further examined by LLMs to reassess severity and reduce false positives. Unlike earlier deep learning models, LLMs capture syntax, semantics, and global context simultaneously. For example, suspicious access-control code identified by static analysis can be re-evaluated by an LLM to determine whether it represents a genuine vulnerability or a legitimate usage pattern.

The main advantage of LLM-based and hybrid approaches lies in their semantic reasoning capability, particularly for logic and context-dependent vulnerabilities. However, high computational cost, deployment complexity, and stability concerns limit their standalone use. Therefore, LLMs are most effective as complementary components within a broader detection architecture rather than as full replacements for traditional methods.

3.6. Proposed Source Code Vulnerability Detection Architecture

The analyses in Sections 3.1-3.5 indicate that each detection method is effective only within certain scopes. Static analysis provides early detection but often generates high false positives; dynamic analysis and fuzzing validate runtime behavior but depend on test coverage; machine learning and deep learning improve detection of complex patterns but rely on data quality and
computational resources; large language models offer strong semantic reasoning but face challenges in stability and deployment efficiency. These limitations suggest that no single method can fully satisfy practical detection requirements.

Based on this insight, a hybrid-oriented architecture is proposed, organizing complementary methods into functional layers rather than replacing existing techniques.

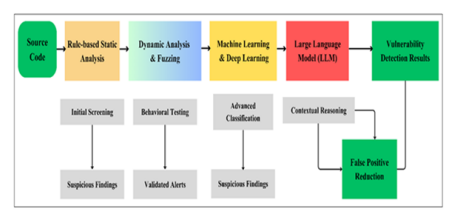

As illustrated in Figure 1, the pipeline includes:
(i) Static analysis for early-stage screening and broad coverage;
(ii) Dynamic analysis and fuzzing to validate execution-level vulnerabilities and reduce false positives;
(iii) Machine learning/deep learning models to analyze syntactic and structural patterns, particularly for complex or logic-related vulnerabilities;
(iv) Large language model-based reasoning for semantic reassessment and alert consolidation, helping reduce noise in final results.
