AN INTERACTIVE VISUALIZATION TOOL FOR ANIMATING BEHAVIOR OF CRYPTOGRAPHIC PROTOCOLS
Mabroka Maeref1, Fatma Algali2, Ahmed Patel3 and Zarina Shukur4
1Department of Computer Science, Sebha University, Sebha, Libya
2Department of Computer Science, Sebha University, Sebha, Libya
3Faculty of Technology and Information Science, The National University of Malaysia, Kuala Lumpur, Malaysia
4Faculty of Technology and Information Science, The National University of Malaysia, Kuala Lumpur, Malaysia
Cryptography and Network Security is a difficult subject to understand, mainly because of the complexity of security protocols and the mathematical rigour required to understand encryption algorithms. Realizing the need for an interactive visualization tool to facilitate the understanding of cryptographic concepts and protocols, several tools had been developed. However, these tools cannot be easily adapted to animate different protocols. The aim of this paper is to propose an interactive visualization tool, called the Cryptographic Protocol Animator (CPAnim). The tool enables a student to specify a protocol and gain knowledge about the impact of its behavior. The protocol is specified by using a scenario-based approach and it is demonstrated as a number of scenes displaying a complete scenario. The effectiveness of this tool was tested using an empirical evaluation method. The results show that this tool was effective in meeting its learning objectives.
Cryptographic Protocols, Visualization and Animation, Scenario-based Approach, Empirical Evaluation
The visualization and animation approach is increasingly being adopted in Computer Science education with the promise of enhancing student understanding of complex concepts. Using this approach, tools were developed using visualization and animation techniques to interactively help students gain knowledge and acquire skills about a subject. If these tools are exploited efficiently, they can facilitate the education process, thus minimizing the learning/teaching time for both lecturers and students.
In the area of network security, fundamental security principles and security practice skills are both required for a student to understand the subject matter. Instructors have to emphasize both the theoretical and practical aspects of security. However, this area poses a challenge for instructors to teach and for students to learn. For this reason, researchers have been eager to support lectures by offering interactive visualization and animation tools that facilitate student understanding and shorten the time consumed in long-term teaching [1-8].
In response to the rising number of security crimes and attacks, specific security courses have been developed by colleges and universities. Although the Model Curricula for Computing CC-2008 describes a cryptographic algorithm as an elective unit with topics that include private and public key cryptography, key exchanges, digital signatures and security protocols security experts, including Bishop, Hoglund and Howard , emphasize the need to incorporate security into the undergraduate curriculum.
Cryptographic protocols mostly combine both theory and practice[14,15] and as such, interactive visualization tools are essential [7,8] to support a student’s understanding of the subject matter. In fact, Adding reality, with the help of realistic images and colors, offers a better chance of enhancing student understanding of protocol behavior. If objects in the animation can be moved and transferred around, this would ensure better understanding and knowledge retention [16,17]. This feature is missing in most current interactive visualization tools and the quest for the appropriate tool is still open to research.
In this paper, we propose an interactive visualization tool called CPAnim which uses visual images from the real world to reflect the object characteristics. It also describes the protocol behavior as a scenario to enable students to formalize the given protocol behavior. The tool is evaluated using an empirical evaluation approach and compared with another chosen tool called a CrypTool 2  to determine the quality of both tools. The following section describes the most related works to our paper while section 3 explains the proposed CPAnim tool. Tools evaluation and results are described in section 4. Section 5 describes the comparison between CrypTool and CPAnim tools. A discussion of this paper is explained in section 6 and the conclusion is provided in section 7.
2. RELATED WORK
Researchers have developed various kinds of interactive visualization tools for teaching/learning cryptographic protocol behaviour and concepts. One of these tools is the Kerberos tool, which developed for visualizing one specific protocol: Kerberos protocol. Another tool is the GRACE tool , the Game tool , GRASP tool  and crypTool[22,23]. CrypTool is a freeware Program with graphical user interface for applying and analyzing cryptographic algorithms with extensive online help. Literature on related visualization tools, together with comparisons between them, is available in our papers  and .
The main goal of this paper is to propose an interactive visualization tool (CPAnim) and to evaluate quantitatively the effectiveness of this tool and other chosen tool which is CrypTool. For the purpose of this paper, effectiveness refers to the ability of these tools in enhancing student’s understanding. This goal is evaluated using an empirical evaluation approach (without animation vs. animation with CPAnim tool vs. animation with CrypTool tool). We have chosen this tool for comparison because it covers the most aspects of computer security. With respect to this chosen tool, the questions are, “Is teaching using interactive visualization tools more effective than traditional teaching medium?” and “Is teaching using CPAnim tool more effective than CrpTool tool?”.
Various studies have been carried out for evaluating interactive mediums. From the literature, a study conducted by Kehoe et al. used an interactive animation to teach algorithm animation and data structure. Their results showed in scores on a post-test used to evaluate the understanding with 12 students divided into two groups. The results showed that the animation group significantly outperformed the non animation group. Moreover, Yuan et al. used Kerberos as an interactive animation tool to teach Kerberos protocol. His results showed in scores on pre-post tests used to evaluate the understanding with 16 students. The t-test results show that the improvement from pre-test to post-test is statistically significant. Hundhausen et al.  also considered 24 experiments used different concept of animation to teach algorithm animation and data structures. Twenty two of the experiments used post-test or pre-post tests to evaluate the understanding. Their results are various according to the interactivity of animation.
3. THE PROPOSED CPANIM TOOL
Our objectives of evaluating the CPAnim visualization tool are:
 To minimize protocol complexity by separating the mathematical part from the protocol behavior. A student should feel how the protocol works, thus increasing student’s ability to understand and to gain confidence in accepting more complicated information, as well as to generate interest to know about other more complex protocol concepts.
 To improve student comprehension of cryptographic protocol concepts and behavior. Animation can make such concepts appear more structured and realistic.
 To enhance student understanding of the foundation of cryptographic protocols. This foundation can be used to better understand modern cryptographic protocol concepts, and how these protocols work.
 To increase student retention of knowledge by providing the same concepts both textually and visually. Experiencing two different learning approaches to the same subject can improve student understanding. The CPAnim tool provides a high degree of interactivity by enabling these features:
The CPAnim tool provides a high degree of interactivity by enabling these features:
3.1. Example Interaction
This section describes Diffie-Hellman protocol . In this protocol, two parties create a symmetric session key. Before doing so, they need to choose two numbers, p and g, which do not need to be confidential. These numbers can be sent through the internet and can be made public. The steps are as follows:
1. Alice chooses a large random number, x, such that 0=< x <=p-1, and calculates R1= gx mod p. 2. Bob chooses another large random number, y, such that 0=< y <=p-1, and calculates R2= gy mod p. 3. Alice sends R1 to Bob. Note that Alice does not send the value of x; she sends only R1. 4. Bob sends R2 to Alice. Note that Bob does not send the value of y; he sends only R2.
3.2. Visualization of Diffie-Hellman Protocol

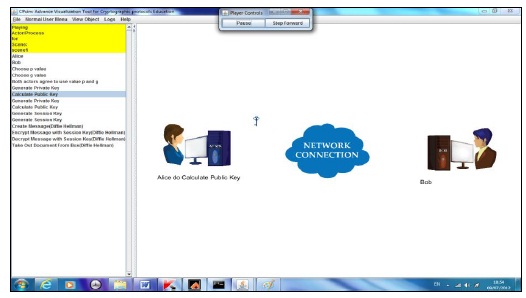

In order to visualize the Diffie-Hellman protocol using CPAnim tool, the user has to first select the two actors (Alice and Bob) designated to run the key agreement protocol. Each actor has a unique color code (Alice is blue and Bob is brown). Then, the user constructs the scenes by choosing the processes that are related to the Diffie-Hellman protocol under the process options. Any generated key has the same color as the creator of this key. For example: Alice’s private and public keys are blue. Finally, an actor can swap his/her own public keys with those of the other actor, or get a copy of the public key which belongs to any other actor and combines it with his/her own private key. The combination of the two keys will result in the generation of a new secret key (black key). Once generated, the new symmetric key can be used by the actor to encrypt a message and send it to another actor.
The idea behind the CPAnim visualization of the Diffie-Hellman protocol lies in separating the mathematical part from the protocol behavior in order to minimize protocol complexity, thereby making the steps easier to understand. A student should feel how the protocol works, thus increasing his/her ability to understand it and to gain confidence in accepting more complex information. Below are the important parts of CPAnim’s Diffie-Hellman protocol demonstration (Figures 1, 2, 3 and 4).
4. TOOLS EVALUATION
The effectiveness of the CPAnim tool is evaluated using an empirical evaluation method[8,26-28] and comparing the CPAnim tool against another existing tool, namely CrypTool. Two experiments were conducted to compare the two tools. The mathematical element of cryptography is not evaluated in this paper, as our focus is on the visualization and animation of protocols behaviors. This section defines the tools descriptions including the guidelines for selecting the chosen tool to be compared with, the subject of the lesson used in the experiments, and the experiments results.
4.1. CrypTool Description

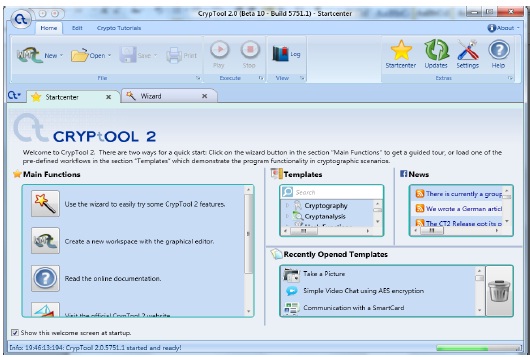

Cryptool is a freeware Program with graphical user interface for applying and analysing cryptographic algorithms with extensive online help. It can be understandable without deep crypto knowledge. It contains nearly all state of the art crypto algorithms with “playful” introduction to modern and classical cryptography. Learning through CrypTool is almost can be done by everyone either through the internet or by download and install the tool from the website (www.cryptool.org). The features of CrypTool include cryptography and cryptanalysis. Both of them constitute the science of cryptology. Figure 5 shows the main menu of the tool.
In selecting the tool for comparison, two issues had to be considered. The first issue was, “Is the tool intended for the same type of application?” It may be unfair to compare tools that are specific to different domains of application, since they may be approaching the matter from different perspectives. The second issue was, “Does the tool have similar goals?” Comparing tools with different goals does not do justice to the true ability of each tool to perform and may consequently lead to an unfair judgment. Based on that, it’s clear that CrypTool tool intends for the same type of application which is computer security and cryptography and it has the same goal which is enhancing the student understanding of the same subjects
4.2. CrypTool Evaluation
We carried out the first experiment consists of one group of the same lesson taught to the undergraduate Computer Science students of the Network Security course at Sebha University of Libya during the semester II of 2013-2014 year. The experiment was conducted in two stages where each stage uses a different learning medium approach; the first stage uses only text-based materials (no animation), the second stage uses CrypTool in the final part of the lesson. The student will be given a same test throughout the two stages. They are allowed to improve their answer after each stage. The results of the tests after each stage of the medium approach are compared.
The same topics of the lessons are given during all of the two stages. These topics are: symmetric-key and Asymmetric-key cryptographic protocol, Diffie-Hellman protocol with respect to the possible attack to Diffie-Hellman protocol, the concept of hash function, digital signature and digital certificate.
In this experiment, the tool SPSS  is used to statistically evaluate the effectiveness of CrypTool using t-test and p-value.
4.2.1. Experimental Procedure
A total of 20 students participated in the experiment. The students are final year of Computer Science students (undergraduate students) at Sebha University of Libya. We follow the pre-test to post-test accuracy [8,27,30] in order to evaluate the effectiveness of CrypTool. The same students were given the same lesson but using different medium each time. The experiment was conducted using the learning medium approach (no animation vs. animation with CrypTool). The students were given the lesson using only text-based materials followed by a pre-test, then, the same students were introduced to CrypTool followed by a post-test.
The experiment was controlled by delivering the same lesson to all of the students by the same teacher during the two consecutive sessions. The topics were: symmetric-key and Asymmetric-key cryptographic protocol, Diffie-Hellman protocol with respect to the possible attack to Diffie-Hellman protocol and the concept of hash function, digital signature and digital certificate.
In the first session of the three hours, only text-based materials were used during the lesson time with the help of electronic slides. At the end of the session, the students were given a pre-test of ten multiple choice questions with a time limit of 30 minutes to answer them.
In the second session, after the pre-test, students were introduced to CrypTool and to its visual interface. They were asked to experiment with simple symmetric and asymmetric-key cryptographic protocols and to recreate Diffie-Hellman protocol. They were also asked to experiment with the concepts of hash function, digital signature, digital certificate and their usages of avoiding possible attack. At the end of the session, the students were given a post-test of the same questions as in the first session with a time limit of 30 minutes to answer them.
Again, to control the tasks performance, the same test of ten multiple questions were given to all students with a specific time. During the test, the students were not allowed to consult books or use any materials. Then the results of pre-test and post-tests were compared. The following points describe the details of the ten multiple questions:
4.2.2. Experimental Results
To determine the effectiveness of CrypTool, a pre-test and post-test accuracy is used. Table 1 describes the students’ scores for the pre-test and post-tests. Notice that the maximum score for each student is 10. In the other side, the Table 2 describes the mean of the group tested and Figure 6 explains the idea.
The adopted statistical analysis of this experiment is that:

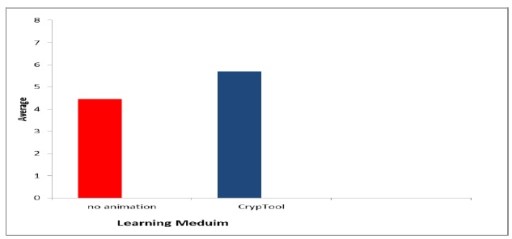

The test shows that there is a difference between no animation and CrypTool based on the p-value which equal to 0.0. The p-value is less than the significance level (0.05) and that means the improvement from pre-test to post-test is statistically significant.
4.3. CPAnim Tool Evaluation
The second experiment procedure is the same as the first experiment but with different group of students at the same University and same course and semester. The tested tool in this second experiment is CPAnim tool.
4.3.1. Experimental Procedure
The same procedure of the first experiment is followed in the second experiment with different group of 20 students. The students are final year of Computer Science students (undergraduate students) at Sebha University of Libya. We follow the same statistical procedure of the first experiment to evaluate the effectiveness of CPAnim Tool.
4.3.2. Experimental Results
To determine the effectiveness of CPAnim Tool, a pre-test and post-test accuracy is used. Table 4 describes the students’ scores for the pre-test and post-tests. Notice that the maximum score for each student is 10. In the other side, the Table 5 describes the mean of the group tested and Figure 7 explains the idea.
The adopted statistical analysis of this experiment is same as the first experiment. Table 6 shows the result of t-test.
The test shows that there is a difference between no animation and CPAnim Tool based on the p-value which equal to 0.0. The p-value is less than the significance level (0.05) and that means the improvement from pre-test to post-test is statistically significant.
5. THE COMPARISON BETWEEN THE FIRST AND SECOND EXPERIMENT

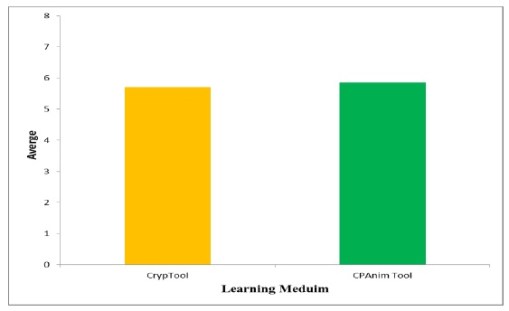

In order to determine whether there is a difference in the effectiveness of the CrypTool tool and the CPAnim tool between the students of the first experiment and the students of the second experiment, we ran t-test again on the post-test results of the two experiments. The t-test results show that there is no difference between them, based on the p-value of 0.678. The p-value, which is greater than the significance level 0.05, indicates that no significant difference was found. Table 7 shows the scores of the post-tests of the first and second experiments whilst Table 8 shows means. The results of t-test are shown in Table 9 and Figure 8 illustrates the result graphically.
The results of the first and second experiments prove that the CrypTool and CPAnim tools are more effective than the traditional teaching/learning (no animation). Based on our test of the two hypotheses, there are indeed significant differences between using interactive visualization tools (CrypTool and CPAnim tools) and no animation. In the other side, there is no significant difference between the two tools. both tools contributed positively to learning. Other existing tools could not be evaluated in this paper due to their non-availability and/or difficulty in getting the correct version. The overall improvement of enhancing the students’ ability for understanding the cryptographic protocols and computer security concepts using CrypTool and CPAnim tools is demonstrated and achieved.
Regardless of the advancement in the area of educational techniques, the area needs to be further tested with more empirical evaluation, especially of using the teaching/learning interactive visualization and animation tools. Currently, a few researches dealt with the problem of the lack of using these kinds of tools. The missing of a clear and complete principle design for interactive tools is seldom discussed and yet plays a crucial role in the tool development. The principle design is important because a tool without a base is inadequate even if it is supplied with good structures. Furthermore, studies have shown that visualization and animation educationally enhanced students’ understanding if they were supported by active learning. This paper was motivated by these observations. In particular, this paper suggested more experiments of other interactive visualization tools through empirical evaluation in order to improve their effectiveness and teaching/learning support.
 M. S. Asseisah, H. M. Bahig, and S. S. Daoud, Interactive Visualization System for DES. Berlin Heidelberg: Springer-Verlag 2010.
 R. Catrambone and A. F. Seay, “Using Animation to Help Students Learn Computer Algorithms,” The Journal of the Human Factors and Ergonomics Society, vol. 44, pp. 495-511, 2002.
 G. Cattaneo, A. D. Santis, and U. F. Petrillo, “Visualization of cryptographic protocols with GRACE,” Journal of Visual Languages and Computing, vol. 19 pp. 258-290, 2008.
 M. A. Holliday, “Animation of computer networking concepts,” ACM Journal on Educational Resources in Computing (JERIC), vol. 3, pp. 1-26, 2003
 N. Kazemi and S. Azadegan, “IPsecLite: a tool for teaching security concepts,” in SIGCSE ’10 Proceedings of the 41st ACM technical symposium on Computer science education NY, USA, 2010.
 A. Kerren and J. T. Stasko, “Algorithm animation,” Software Visualization, LNCS 2269, pp. 1-15, 2002.
 D. Schweitzer and W. Brown, “Using Visualization to Teach Security,” JCSC, vol. 24, pp. 143-150, 2009.
 X. Yuan, P. Vega, Y. Qadah, R. Archer, H. Yu, and J. Xu, “Visualization Tools for Teaching Computer Security,” ACM Transactions on Computing Education, vol. 9, pp. 147-155, 2010.
 B. Taylor and S. Azadegan, “Moving Beyond Security Tracks: Integrating Security in CS0 and CS1,” in SIGCSE ’08: Proceedings of the 39th SIGCSE technical symposium on Computer science education, 2008, pp. 320-324.
 CC2008, “Computer Science 2008, An Interim Revision of CS 2001.”
 M. Bishop and D. Frincke, “Teaching Secure Programming,” IEEE Security and Privacy, vol. 3, pp. 54-56, 2005.
 G. Hoglund and G. McGraw, Exploiting Software:How to Break Code. Boston: Addison-Wesley, 2004.
 M. Howard and D. LeBlanc, Writing Secure Code. Redmund, WA: Microsoft Press, 2003.
 W. Stallings, Cryptography and Network Security: Principles and Practices, 4 ed. Upper Saddle River, NJ: Prentice Hall, 2006.
 B. A. Forouzan, Cryptography and Network Security, 1 ed. New York, NY: McGraw-Hill Higher Education, 2008.
 L. Lin and R. K. Atkinson, “Using animations and visual cueing to support learning of scientific concepts and processes,” Computers & Education, vol. 56, pp. 650-658, 2011.
 D. Matthew, H. Timothy, and R. Ingrid, “Using simulation across the curriculum,” J. Comput. Small Coll., vol. 16, pp. 56-64, 2000.
 A. Deutsche, “CrypTool,” 2009.
 X. Yuan, Y. Qadah, J. Xu, H. Yu, R. Archer, and B. Chu, “An animated learning tool for Kerberos authentication architecture,” Journal of Computing Sciences in Colleges, the twelfth annual CCSC Northeastern Conference, vol. 22, pp. 147 – 155, June 2007 2007.
 L. G. C. Hamey, “Teaching Secure Communication Protocols Using a Game Representation,” in Australasian Computing Education Conference (ACE2003), Adelaide, Australia, 2002.
 D. Schweitzer, L. Baird, M. Collins, W. Brown, and M. Sherman, “GRASP: a visualization tool for teaching security protocols,” in the Tenth Colloquium for Information Systems Security Education, Adelphi, MD, 2006, pp. 1-7.
 C. Eckert, T. Clausius, B. Esslinger, J. Schneider, and H. Koy, “CrypTool,” 2003.
 B. Esslinger, “The CrypTool Script: Cryptography, Mathematics, and More,” 10 ed: Frankfurt am Main, Germany, 2010.
 M. A. Mayouf and Z. Shukur, “Animation of Natural Language Specifications of Authentication Protocol,” Journal of Computer Science, vol. 4, pp. 503-508 2008.
 M. A. Mayouf and Z. Shukur, “Using Animation in Active Learning Tool to Detect Possible Attacks in Cryptographic Protocols,” LNCS 5857, pp. 510-520, 2009.
 C. Kehoe, J. Stasko, and A. Taylor, “Rethinking the evaluation of algorithm animations as learning aids: an observational study,” International Journal of Human Computer Studies, vol. 54, pp. 265-284, 2001.
 C. D. Hundhausen, S. A. Douglas, and A. T. Stasko, “A meta-study of algorithm visualization effectiveness,” Journal of Visual Languages and Computing, vol. 13, pp. 259-290, 2002.
 J. Urquiza-Fuentes and J. A. VelAzquez-Iturbide, “A Survey of Successful Evaluations of Program Visualization and Algorithm Animation Systems,” ACM Transactions on Computing Education, vol. 9, pp. 1-21, 2009.
 J. Pallant, SPSS Survival Manual: A step by step guide to data analysis using SPSS. Berkshire UK: McGraw-Hill Education, 2010.
 S. R. Hansen, N. H. Narayanan, and S. Douglas, “Helping Learners Visualize and Comprehend Algorithms Interactive Multimedia Electronic ” Interactive Multimedia Electronic Journal of Computer-Enhanced Learning, vol. 2, 2000.
