**C****ASCADE**** B****LOCK**** C****IPHER**** U****SING B****RAIDING****/E****NTANGLEMENT OF**** S****PIN M****ATRICES AND**** B****IT**** R****OTATION**

Sravana Kumar^{1}, P. Sirisha^{2} and CH. Suneetha^{3}

^{1}Reader in Physics, Dr. V.S. Krishna Government Degree College, Visakhapatnam ^{2}Faculty in Mathematics, Indian Maritime University, Visakhapatnam

^{3}Assistant Professor in Mathematics, GITAM University, Visakhapatnam

*A**BSTRACT*

*Secure communication of the sensitive information in disguised form to the genuine recipient so that an intended recipient alone can remove the disguise and recover the original message is the essence of Cryptography. Encrypting the message two or more times with different encryption techniques and with different keys increases the security levels than the single encryption. A cascade cipher is stronger than the first component. This paper presents multiple encryption schemes using different encryption techniques Braiding/Entanglement of Pauli Spin 3/2 matrices and Rotation of the bits with independent secret keys.*

*K**EYWORDS*

*Multiple Encryption, Braiding/Entanglement, Rotation of the bits, Encryption and Decryption.*

** 1. I****NTRODUCTION**

As the internet is the basic means of communication nowadays secure transmission of the sensitive information has become a Herculean task. A practical cryptosystem that encrypts the message several times with independent secret keys and with distinct encryption schemes enhances the confidentiality of the message. Multiple encryptions provide better security [1] because even if some of the components of the cipher are broken or some of the secret keys are broken, the confidentiality can still be maintained by the remaining encryptions. Historically, sudden emergence of efficient attacks against the elliptic curve cryptosystem on super singular curves [2, 3] and on prime-field anomalous curves [ 4 ] have already reminded us the necessity to do multiple encryptions.

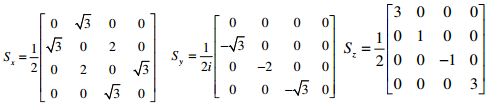

**1.1 Pauli Spin 3/2 Matrices**

In Quantum Mechanics a very class of dynamical problems arises with central forces. These forces are derivable from a potential that depends on the distance (r) of the moving particle from a fixed point, the origin of the co-ordinate system (O). Since central forces produce no torque about the origin, the angular momentum L = rxp is constant of motion where p is a constant of motion the momentum of the particle. In addition to the dynamical variables x,y,z to describe the position of the vector there is another fourth variable , called the *spin angular momentum* *variable *required to describe the dynamical state of fundamental particles. In 1920’s, in the study of the spectra of alkali atoms, some troublesome features were observed which could not be explained on the basis of orbital quantum properties [5]. The energy levels corresponding to the n, l and m_{l} quantum numbers were found to be further split up. Uhlenbeck and Goudsmit [6,7] in 1925 attributed these difficulties due to the fact that the electron has an additional property of intrinsic angular momentum and magnetic momentum. Pauli was the first to propose a non-relativistic wave equation, which takes into account the intrinsic magnetic moment of the electron. To describe the electron spin he used spin ½ , spin 3/2, spin 5/2 matrices. The spin-3/2 matrices are

**1.2 Braiding/Entanglement of Matrices**

Entanglement [8] is a term used in quantum theory to describe the way that particles of energy/matter can become *correlated* to predictably interact with each other regardless of how far apart they are. Braiding/Entanglement of matrices is a technique of generating higher order non-singular matrices from simple lower order non-singular matrices.

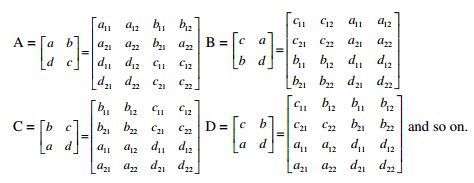

singular matrices of order 2×2 then these four non-singular matrices are braided/entangled to get higher order 4×4 matrices as

These matrices are further braided /entangled to get higher order 16×16 matrices like

and so on. Non-Singular matrices from the set of these matrices can be selected for the process of encryption/decryption.

**1.3 Literature on Golden Matrices**

In the last decades the theory of Fibonacci numbers [9, 10] was complemented by the theory of the so-called Fibonacci Q – matrix. Stakhov [11] developed a theory of the golden matrices that are a generalization of the matrix Q* ^{n}* for continuous domain. He defined the golden matrices in the terms of the symmetrical hyperbolic Fibonacci functions. B.Vellainkann et.al

**1.4 Rotation of the Bits**

The bitwise rotation operation operates on one or more bit patterns of binary numerals at the level of their individual bits. This is used directly at the digital hardware level as well as in microcode, machine code and certain kinds of high level languages. The *bit shifts* are bitwise operations because they operate on the binary representation of an integer instead of its numerical value. In these operations the digits are moved or shifted to the left or right. Registers in a computer processor have a fixed width, so some bits will be *shifted out* of the register at one end, while the same numbers of bits are *shifted in* from the other end and the difference between bit shifts operators lie in how they determine the values of the shifted-in bits.

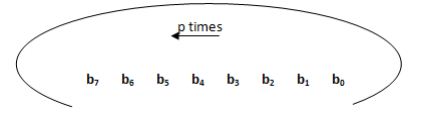

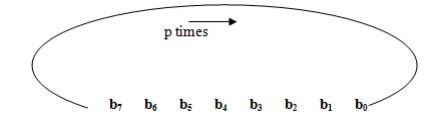

Another form of shifting is the *circular shift* or *bit rotation*. In this operation the bits are rotated as if the left and right ends of the register were joined. The value that is shifted in on the right during a left-shift is whatever the value was shifted out on the left, and vice versa. This operation is frequently used in cryptography. Previously Several cryptographers [17,19] used bit rotation of for designing cryptographic algorithm.

**2. P****ROPOSED**** M****ETHOD**

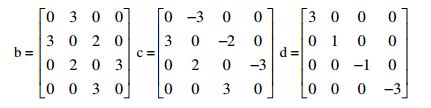

The above set of Pauli Spin 3/2 matrices with some elementary transformations are reduced to the matrices

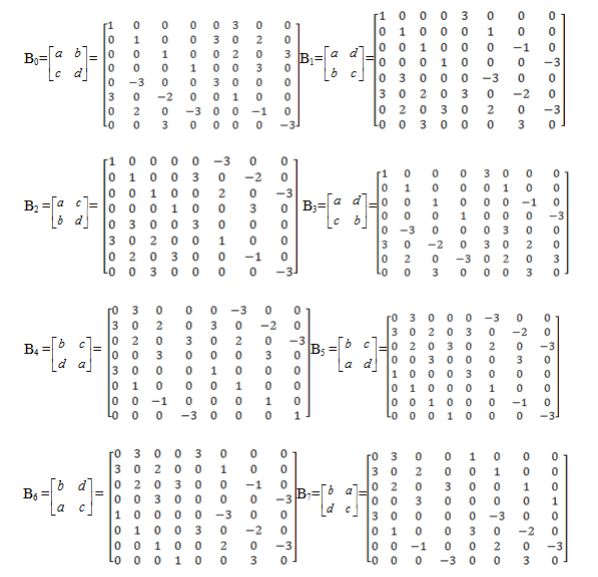

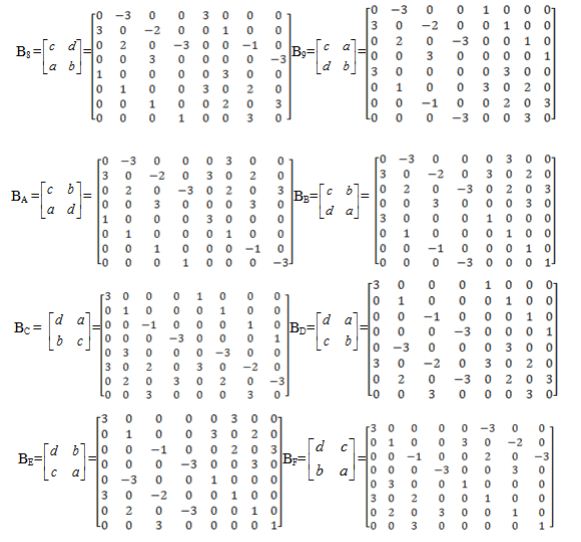

These three matrices derived from Pauli spin 3/2 matrices along with the identity matrix ( I _{4×4} = a) are braided or entangled in different possible ways to get a set B of 16 non singular matrices

**I stage of Encryption using braiding/entanglement technique of Pauli 3/2 matrices technique with the key K**** _{1}** :

From the above set B of non-singular matrices obtained by braiding/entanglement of Pauli 3/2 matrices 8 different matrices are selected whose subscripts are equal to the first, second and so on the eighth digit of the first half part K_{1} of the secret key K successively. For example if the secret key K_{1} consists of the digits klmnopqr the sender selects the matrices B_{k}, B_{l}, B_{m}, …… B_{r}. Then the sender computes a matrix which is the product of eight matrices B_{k}, B_{l}, B_{m}, …… B_{r} successively in the same order called the encoding matrix A. Consider the first data block matrix M_{1} which is to be encrypted. It is multiplied with the matrix A and the resulting matrix is adjusted to modulo 256. The resulting matrix when adjusted to Mod 256 is divided into two parts the integer part and the residue part namely I_{1} and C_{1}(Dec).

Example : when 1,116 is adjusted to mod 256 the integer part is 4 and the residue part is 92.

C_{1}(Dec) = ( M_{1} * A )_{Mod256}

All the elements which are decimal numbers of the matrix C_{1}(Dec) are converted to 8 bit binary equivalents using ASCII code table which is named as C_{1}^{1}(Bin)

**II stage of encryption using Rotation of the Bits Technique with secret key K**_{2}** .**

The bits each 8 bit binary element of the first row of the matrix C_{1}^{1}(Bin) are right rotated the number of times equal to the first hexadecimal digit of the secret key K_{2}. If the hexadecimal digit exceeds 8 then it is adjusted to mod 8. The bits each 8 bit binary element of the second row are right rotated the number of times equal to the second hexadecimal digit of K_{2}. Similarly the bits of each 8 bit binary element of third, fourth and so on eighth row are right rotated the number of times equal to the third, fourth and so on eighth hexadecimal digit of the secret key K_{2}.

Example if the first element of the matrix C1 1 (Bin) is 11001010, the first hexadecimal digit of the secret key K2 is A. Then A when adjusted to mod 8 is 2. So, the bits of the binary number 11001010 are right rotated 2times.

The resulting binary number is 10110010. After applying the rotation of the bits technique for each element of the matrix C_{1}^{1}(Bin) the resulting matrix is C_{1}^{11}(Bin). Similarly all the other matrices M_{2}, M_{3}, ………., M_{n} are encrypted in the same way to get C_{2}^{11}(Bin), C_{3}^{11}(Bin), ……….

C_{n}^{11}(Bin). Then all the binary elements the matrices C_{1}^{11}(Bin), C_{2}^{11}(Bin), C_{3}^{11}(Bin), ……….C_{n}^{11}(Bin) are coded to the text characters using ASCII code table which constitutes the cipher text C. The integer matrices of block matrices M_{1} ,M_{2}, M_{3}, ………., M_{n} obtained at I stage of encryption when adjusted to mod 256 are I_{1}, I_{2}, …….I_{n}. These elements are written as string of numbers called the cipher string I. The cipher text C along with the string I are communicated to the receiver in public channel. To provide the authenticity the sender may add an arbitrary decimal number at the end of the string I, the corresponding ASCII character at the end of the cipher text so that the receiver verifies the genuineness.

**2.2 Decryption**

The receiver decrypts the message using the key K which is agreed upon by both sender and the receiver before communicating the messages. The receiver first divides the key K which is a 16 digit hexadecimal number into two halves K_{1} and K_{2}.

**I stage of Decryption using Rotation of the Bits technique with key K**_{2}**:**

The receiver after receiving the cipher text C and cipher string I verifies that the character corresponding to the last decimal of the string of integers I is same as the last character of the cipher or not. Then the receiver first divides the cipher text into 64 characters each and converts all the characters to 8 bit binary numbers using ASCII code table and writes as 8×8 matrices say D_{1}^{11}(Bin), D_{2}^{11}(Bin), D_{3}^{11}(Bin), ………. D_{n}^{11}(Bin). Consider the first cipher block matrix D_{1}^{11}(Bin). The bits of each element of the first row of the matrix D_{1}^{11}(Bin)are left rotated the number of times equal to the first hexadecimal digit of the key K_{2}.

For example the first binary element of the matrix D1 ¹¹(Bin) is 11001010 and the first hexadecimal digit of the key K2 is 2. Then the bits are left rotated 2 times

The bits of each element of the second row of the matrix D_{1}^{11}(Bin) are left rotated the number of times equal to the second hexadecimal digit of the matrix K_{2}. Similarly the bits of each element of third, fourth and so on eighth row of the matrix D_{1}^{11}(Bin) are left rotated the number of times equal to the third, fourth and so on eighth digit of the key K_{2}. After employing rotation of the bits technique for all the elements of the matrix C_{1}^{Bin} the resulting matrix is named as D_{1}^{1}(Bin) . Then all the elements of the matrix D_{1}^{1}(Bin) which are 8 bit binary numbers are converted to decimal equivalents using ASCII code table which is the matrix D_{1}^{1}(Dec).

**II stage of Decryption using the entanglement of Pauli 3/2 matrices technique with the key K**_{1}**:**

The cipher string I excluding the last digit is divided into blocks of 64 numbers each. Then all the 64 numbers of each block are written as 8×8 matrices

I_{1}, I_{2}, …….I_{n}. Consider the string I_{1}. Every element of the matrix I_{1} is multiplied with 256 and added to the corresponding element of the matrix D_{1}^{1}(Dec) which is obtained in I stage of decryption to get the matrix D_{1}^{11}(Dec).

D_{1}^{11}(Dec)= 256*I_{1} + D_{1}^{1}(Dec)

Now the receiver selects the 8 non-singular matrices form the set B of the above braided matrices whose subscripts are same as the first digit, second digit and so on eighth digit of the key K_{1}. Then the receiver computes the encoding matrix A which is the product of all the eight matrices successively in the same order. Then the matrix D_{1}^{11}(Dec) is multiplied with the inverse of the encoding matrix A to get the first message block matrix M_{1}.

M_{1} = D_{1}^{11}(Dec)*Inv(A)

In a similar way all the other cipher block matrices D_{2}^{11}(Bin), D_{3}^{11}(Bin), ………. D_{n}^{11}(Bin) are decrypted in two stages to get the message block M_{2}, M_{3}, ………., M_{n}. Then all the decimal elements of each matrix M_{1}, M_{2}, M_{3}, ………., M_{n} are coded to the text characters using the ASCII code table which is the original message.

**3. E****XAMPLE**

If two communicating parties Alice and Bob want to communicate the messages first they agree upon to use the secret key

**K= 4A8E05B9B23D1E74**

The key K is divided into two parts K_{1}and K_{2}

K_{1}= 4A8E05B9

K_{2}= B23D1E74

**3.1 Encryption**

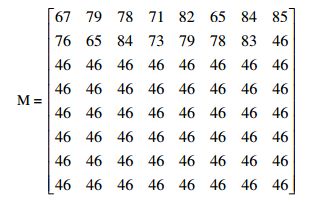

Suppose Alice wants to communicate the message **CONGRATULATIONS,** she encrypts the message in two stages using braiding/entanglement technique of Pauli 3/2 matrices with the key K_{1} and rotation of the bits technique with the key K_{2}. All the text characters of the message are converted to the decimal numbers using ASCII code table and writes as 8×8 matrixes say M. Since the message consists only 15 characters the other characters may be filled at random.

**I stage of Encryption using braiding/entanglement of Pauli 3/2 matrices technique with the key K**_{1}** = 4A8E05B9:**

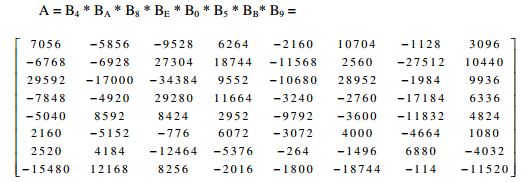

Alice selects 8 matrices from the above set B of non singular matrices whose subscripts are successively the digits of the key K_{1} and computes the product of 8 matrices which is the encoding matrix A

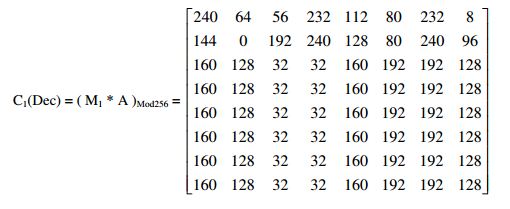

The message matrix M is multiplied with A and all the elements are adjusted to mod 256. The resulting matrix when adjusted to Mod 256 is divided into two parts the integer part and the residue part namely I and C_{1}(Dec).

All the elements which are decimal numbers of the matrix C_{1}(Dec) are converted to 8 bit binary equivalents using ASCII code table which is named as C_{1}^{1}(Bin) C_{1}^{1}(Bin)=

**II stage of encryption using Rotation of the Bits Technique using secret key K**_{2}**= B23D1E74**

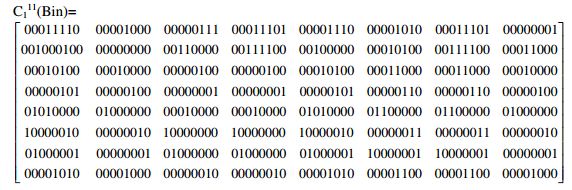

Since the first digit of the key K_{2} is B. It is equivalent to 3 when adjusted to mod 8. So, the bits of each 8 bit binary element of the first row of C_{1}^{1}(Bin) are right rotated 3 times. Since the second digit of K_{2} is 2 then the bits of each 8 bit binary element of the second row of C_{1}^{1}(Bin) are right rotated 2 times. The right rotation operation on each element of third, fourth and so on eighth row is performed 3times, 5 times and so on 4 times. The resulting matrix is named as C_{1}^{11}(Bin)

Then all the elements which are 8 bit binary elements of the matrix C_{1}^{11}(Bin) are coded to the text characters using ASCII code table which constitutes the cipher text

RS BS BEL GS SO LF GS SOH $ NUL 0 < (SPACE) DC4 < CAN DC4 DLE EOT EOT DC4 CAN CAN DLE ENQ EOT SOH SOH ENQ ACK ACK EOT P @ DLE DLE P ` ` @ ‚ STX € € ‚ ETX ETX STX A SOH @ @ A Ü Ü SOH LF BS STX STX LF FF FF BS ?

The string of integers obtained in I stage of encryption when adjusted to mod 256 are 1218, -3358,4729,13622,-12889,4795,-16921,5488,4986,-5854,976,13734,-12374,8795,-15740,7077,1112,-2680,2895,8599,-7651,3524,-10345,3622,1112,-2680,2895,8599,-7651,3524,-10345,3622,1112,-2680,2895,8599,-7651,3524,-10345,3622,1112,-2680,2895,8599,-7651,3524,-10345,3622,1112,-2680,2895,8599,-7651,3524,-10345, 3622, 1112, -2680, 2895, 8599,-7651, 3524,-10345, 3622, 63.

Alice added number “63” at the end of the string I and the corresponding ASCII character “?” at the end of the cipher text C to authenticate the message and communicates the cipher text along with the cipher string I to Bob in public channel.

**3.2 Decryption**

Bob after receiving the cipher text and the string of integers I verifies whether the last character of the cipher text is same as the corresponding character of last decimal number of the string of integers I or not. Then he starts decrypting the message in two different stages using rotation of the bits technique and braiding/entanglement technique of Pauli 3/2 matrices with the keys K_{2} and K_{1}.

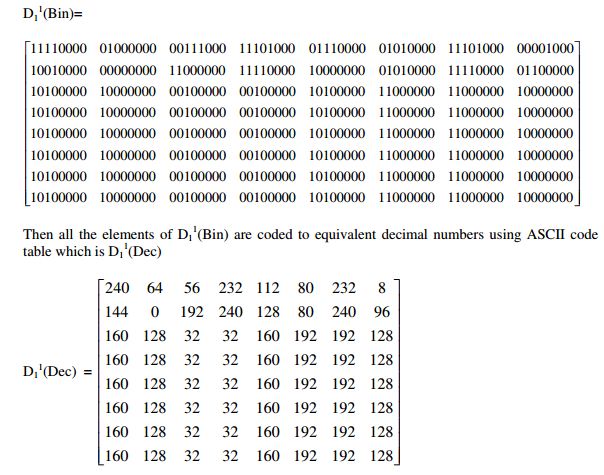

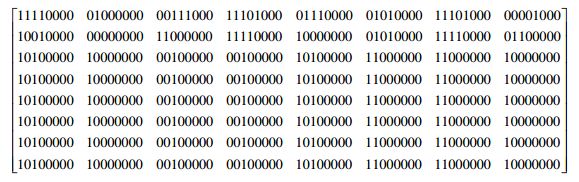

First Bob converts the cipher text to equivalent 8 bit binary numbers using ASCII code table. Then he writes all the 64 binary numbers as 8×8 matrix which is named as D_{1}^{11}(Bin)

**I stage of Decryption using bit rotation operation with the key K**** _{2}**:

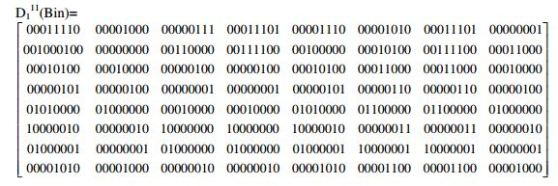

Since the first digit of the key K_{2} is B. It is equivalent to 3 when adjusted to mod 8. So, the bits of each 8 bit binary element of the first row of D_{1}^{11}(Bin) are left rotated 3 times. Since the second digit of K_{2} is 2 then the bits of each 8 bit binary element of the second row are left rotated 2 times. The left rotation operation on each element of third, fourth and so on eighth row is performed 3times, 5 times and so on 4 times. The resulting matrix is named as D_{1}^{1}(Bin)

**II stage of decryption using braiding /entanglement of Pauli 3/2 matrices with the key K**_{1}**:**

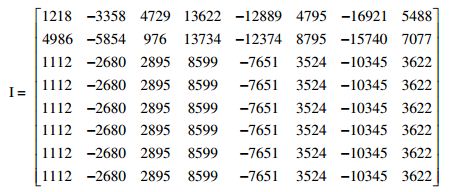

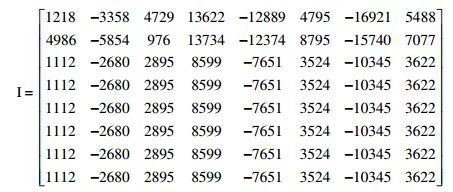

Bob writes the numbers in the cipher string I of as 8×8 matrix excluding the last number which is the matrix I

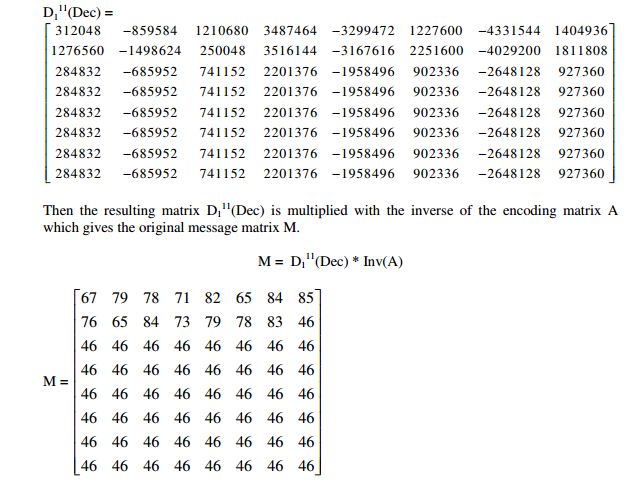

Each element of the matrix I is multiplied with 256 and added to the corresponding element of the matrix D_{1}^{1}(Dec) which is the matrix D_{1}^{11}(Dec)

Then all the decimal elements of the matrix M are coded to the text characters using ASCII code table which is the original message **CONGRATULATIONS.**

**4. C****RYPTANALYSIS AND**** C****ONCLUSIONS**

Folk theorem [18] states that a cascade of ciphers is at least as difficult to break as any of its component ciphers. The enemy cannot exploit information about the plain text statistics. If the ciphers commute, then a cascade is difficult to break. In the cascade cipher presented in this paper the message is encrypted in two stages using two different encryption algorithms with two different keys. So, the cipher is powerful and improves the security. The original message CONGRATULATIONS contains 15 characters. Here the alphabets O, N, A, T are repeated twice. But no character in the first 15 of the cipher is repeated. Besides that the original message contains only 15 characters but the size of the block here is 64. So, the remaining characters are the dummy characters which may be selected at random. Here same dummy character “.” is selected to fill the remaining characters. But, the same characters in the plain text are mapped to different characters in the cipher. This shields the cipher against the security implications like chosen plain text attacks, chosen cipher text attacks, linear cryptanalysis, mono-alphabetic cryptanalysis. Even though the original message contains less than 64 characters the other characters are filled at random. This is the reason that the proposed cascade block cipher presented in this paper is less prone to timing attacks because the time required to encipher of decipher is same for all the data blocks. Here the message is encrypted in two different stages using braiding/ entanglement technique with key K_{1}, bit rotation technique with the key K_{2} . Security levels of the cipher can be further enhanced by encrypting the already encrypted message in two more stages using braiding/entanglement technique with the key K_{2} and the bit rotation technique with key K_{1}.

**R****EFERENCES**

- Even and O. Goldreich. On the Power of Cascade Ciphers. ACM Trans. Comp. Systems 3: 108– 116 (1985)
- Menezes, T. Okamoto, and S. Vanstone. Reducing elliptic curve logarithms to lgarithms in a finite field. IEEE Trans. on Information Theory, 39:1639–1646, 1993.
- Merkle and M. Hellman. On the security of multiple encryption. Communications of the ACM, 24(7):465–467, 1981.
- Smart. The discrete logarithm problems on elliptic curves of trace one. Journal of Cryptology, 12:193–196, 1999.
- Jaeger G, “Entanglement, information, and the interpretation of quantum mechanics”, Heildelberg 2009: Springer, ISBN 978-3-540-92127-1.
- Richard Liboff, “Introductory quantum mechanics, IV Edition, Addison Wesley, 2002
- J. Sakurai, “Modern quantum mechanics”, Addidon Wesley, 1985
- Steward EG ,“Quantum mechanics: its early development and the road to entanglement”, 2008,Imperial College Press. ISBN 978-1860949784.
- Gould HW., “A history of the Fibonacci Q-matrix and a higher-dimensional problem, the Fibonacci quart.” 1981(19),250-7.
- Hoggat VE., “Fibonacci and Lucas numbers”, Palo Alto, CA: Houghton-Mifflin, 1969
- Stakhov A.P. , “The golden matrices and a new kind of cryptography”, Chaos, Solutions and Fractals, 2006
- Vellainkannan, Dr. V. Mohan, V. Gnanaraj “A Note on the application of Quadratic forms in Coding Theory with a note on Security”, International Journal Computer Tech. Applications Vol 1(1) 78-87.
- Sravana Kumar, CH. Suneetha ,A. Chandrasekhar “Encryption of Data Streams using Pauli Spin ½ matrices”, International Journal of Engineering Science and Research, Vol. 2(6), 2010, 2020-2028.
- Bibhudendra Acharya , Saroj Kumar Panigrahy, Sarat Kumar Patra , and Ganapati Panda, “Image Encryption using Advanced Hill cipher Algorithm”, International Journal of Recent Trends in Engineering, Vol. 1, No. 1, May 2009.
- Birendra Goswami, Dr.S.N.Singh “Enhancing Security in Cloud computing using Public Key Cryptography with Matrices” International Journal of Engineering Research and Applications Vol. 2, Issue 4, July-August 2012, pp.339-344 339.
- Ayan Mahalanobis, “Are Matrices Useful in Public-Key Cryptography?” International Mathematical Forum, Vol. 8, 2013, no. 39, 1939 – 1953 HIKARI Ltd, http://www.m-hikari.com http://dx.doi.org/10.12988/imf.2013.310187
- Sravana Kumar, CH. Suneetha and A. Chandrasekhar, “A Block Cipher using Rotations and Logical Operations”, International Journal of Computer Science Issues, Vol. 8, Issue 6, No. 1, Nov 2011.
- Maurer and J. Massey. Cascade Ciphers: the Importance of Being First. J. Crypto 6(1): 55–61 (1993).
- Shipra Rathore, Nilmani Verma “A Novel Visual Cryptography Scheme Using Bit Rotation and Blowfish Algorithm”, International Journal of Scientific Research Engineering & Technology, Volume 3 Issue 1, April 2014
