Li Liu, Yucheng Chen and  Ruisong Ye

Department of Mathematics, Shantou University, Shantou, Guangdong, 515063, P. R. China

Abstract


In this paper, a chaos-based image encryption scheme with half-pixel-level interchange permutation strategy and plain-image dependence is proposed.  The proposed image encryption scheme consists of a confusion process and a diffusion process. In the confusion process, a pixel-swapping operation between higher bit planes and lower bit planes is employed to replace the traditional confusion operation. The half-pixel-level interchange permutation strategy between the higher 4-bit plane part and the lower 4-bit plane part not only improves the conventional permutation efficiency within the plain-image, but also changes all the pixel gray values. The system parameters of generalized Arnold map applied for the permutation operation relies on the plain-image content and consequently can resist chosen-plaintext and known-plaintext attacks effectively. To enhance the security of the proposed image encryption, one multimodal skew tent map is utilized to generate pseudo-random gray value sequence for diffusion operation. Simulations have been carried out thoroughly with comparisons with some other existing image encryption schemes. The experimental results demonstrate that the proposed image encryption scheme is highly secure thanks to its large key space and efficient permutation-diffusion operations.

Keywords


Generalized Arnold map, Interchange permutation, Chaotic system, Multimodal skew tent map, Image encryption

1.  Introduction


The rapid development of network technologies, cloud technologies and smart phone systems make remarkable progress for network-based services. Multimedia processing technologies also make numerous digital images and videos with private and confidential information ubiquitous over the network. Therefore, protection of digital images and videos against illegal copying and distribution becomes urgent challenge than ever before. Many researchers have devoted to studying the security issue of images and videos and the research in image encryption gained new momentum at the last decades. While general data encryption algorithms have been widely applied in various fields, specialized image encryption schemes still undergo studying. A great number of chaos-based image encryption schemes are then investigated intensively to meet the real time need of protection of images transmitted on the Internet and wireless network. On the one hand, traditional symmetrical encryption algorithms, such as International Data Encryption Algorithm (IDEA),  Data Encryption Standard (DES) and RSA, are especially designed for text data information, and have been proved not well applied for image encryption due to the weakness of low-level efficiency while encrypting images with some intrinsic features, such as bulky data capacity, strong correlation between adjacent pixels and high redundancy[1]. On the other hand, chaotic system has attracted tremendous interest from researchers thanks to its good features, such as ergodicity, pseudo-randomness and sensitivity to initial conditions and control parameters, which are in line with the basic requirements, like confusion and diffusion, in cryptography [2, 3]. These good chaotic properties make chaotic systems potential for constructing cryptosystems in multimedia field [3-8].

Most of the existing chaos-based image encryption algorithms employ a permutation-diffusion architecture, in which one encryption round includes several confusion operations and one round diffusion operation. This architecture was initially presented by Fridrich in 1998 [3]. In the permutation stage, two-dimensional chaos systems are usually used to modify each pixel’s location, while in the diffusion stage the value of all the pixels is systematically changed controlled by one pseudo-random gray value sequence generated by one chaotic map. As we know, a good encryption scheme should possess some fundamental requirements. For example, it should be sensitive enough to cipher keys; the key space should be large enough to resist brute-force attack; the permutation and diffusion processes should possess good statistical properties to frustrate statistical attack, differential attack, known-plaintext attack and chosen-plaintext attack, etc. However, the traditional permutation-diffusion architecture with fixed key streams is blamed for one big flaw. The permutation and diffusion stages will become independent if the plain-image is a homogeneous one with identical pixel gray value. Therefore, such a kind of image encryption schemes can be broken by the following steps: (1) a homogeneous image with identical pixel gray value is applied eliminate the confusion effect; (2) the key streams of the diffusion process is obtained using known-plaintext, chosen-plaintext or chosen-ciphertext attacks; (3) the remaining cipher-image can be regarded as the output of a kind of permutation-only cipher, which has been shown insecure and can be broken by known-plaintext or chosen plaintext attacks[9, 10]. As a matter of fact, image encryption schemes with conventional permutation-diffusion architecture have been analyzed or shown to suffer from security drawbacks [11-15].To overcome the drawbacks such as small key space and weakly secure permutation-diffusion architecture in the existing chaos-based image encryption schemes, many researchers turn to find improved chaos-based cryptosystems with large key spaces and efficient permutation-diffusion or permutation-substitution mechanisms. Ye proposed an image encryption scheme with an efficient permutation-diffusion mechanism, which shows good performance, including huge key space, efficient resistance against statistical attack, differential attack, known-plaintext as well as chosen-plaintext attack [16]. In both the permutation and diffusion stages, generalized Arnold maps with real number control parameters are applied to generate pseudo-random sequences and therefore enlarge the key space greatly. Meanwhile, a two-way diffusion operation is executed to improve the security of the diffusion function. Patidar et al. [17] proposed a secure and robust chaos-based pseudorandom permutation substitution scheme to encrypt color image. The proposed scheme consists of three processes: preliminary permutation, substitution and main permutation. The proposed image encryption scheme shows strong robustness and great security. The three processes are performed row-by-row and column-by-column instead of pixel-by-pixel to improve the speed of encryption. To obtain excellent key sensitivity and plaintext sensitivity, both preliminary permutation and main permutation are set to be dependent on the plain-image and controlled by the pseudo-random number sequences generated from the chaotic standard map. The substitution process is initialized with the initial vectors generated via the cipher keys and chaotic standard map, and then the pixel gray values of row and column pixels of input 2D matrix are bitwise exclusive OR with the pseudo-random number sequences. Zhou et al. introduced new chaotic systems by integrating the tent, Logistic and sine maps into one single system to produce the pseudo-random sequence [18, 19]. The intertwining Logistic map and reversible cellular automata were applied in an image encryption scheme presented by Wang et al. in [20]. This encryption scheme performs operations at bit level considering higher four bits of each pixel value. Some novel image encryption schemes using bit-level permutation strategy are proposed recently to improve the security issue of chaos-based image encryption schemes. For bit-level permutation, each pixel gray value is divided into 8 bits for 256 gray-scale images. Since each bit of a pixel contains different percentage of the pixel information, the situation of performing confusion at bit-level is quite different from pixel-level case. The bit-level permutation not only relocates the pixel positions, but also alters the pixel gray values [21, 22]. Therefore certain diffusion effect has been introduced in the confusion stage with a bit-level permutation. Thanks to the superior characteristics of bit-level operations and the intrinsic bit features of images, Zhang et al. proposed a novel image encryption scheme using lightweight bit-level confusion and cascade cross circular diffusion in [23] .They also applied an expand-and-shrink strategy at bit-level to shuffle the image with reconstructed permuting plane [24]. All the proposed image encryption schemes show good performances compared with the traditional permutation-diffusion structure operating at pixel-level. However, there exists one flaw in all bit-level based image encryption schemes. Although the bit-level confusion operations can change the pixel gray values, they consume much execution time to get the eight bit planes.In this paper, a plain-image dependent image encryption scheme with half-pixel-level interchange permutation strategy is proposed. In the proposed permutation operation, a pixel-swapping operation between higher 4-bit plane part and lower 4-bit plane part is employed to replace the traditional confusion operation. The plain-image with size  and 256 gray levels is divided into two images with the same size, each of which is of 16 gray levels. They consist of the 1-4 and 5-8 bit planes respectively. The half-pixel-level swapping strategy between the higher 4-bit plane part and the lower 4-bit plane part has two effects compare with the traditional permutation operation. It not only improves the conventional permutation efficiency within the plain-image, but also changes all the pixel gray values of the entire image. In the proposed image encryption scheme, the parameters of generalized Arnold map applied for the permutation operation are designed to be dependent on the plain-image content and consequently can resist chosen-plaintext and known-plaintext attacks effectively. The plain-image content dependent permutation makes the proposed image encryption scheme more sensitive with respect to plain-image, so the cryptosystem is truly one-time pad. To achieve more security of the proposed image encryption, one multimodal skew tent map is applied to generate pseudo-random gray value sequence for diffusion operation. Multimodal skew tent map has shown good chaotic features; it is generalized from unimodal skew tent map. Unimodal skew tent map is widely applied to generate pseudo-random sequences in chaos-based image encryption schemes [16, 25]. We apply multimodal skew tent map to enlarge the cipher key space as it has more choices of control parameters. In the diffusion phase, a multimodal skew tent map is utilized to generate a pseudo-random gray value sequence, which is used to modify the pixel gray values sequentially. The yielded pseudo-random gray value sequence shows good sensitivity to the control parameters and initial conditions of multimodal skew tent map, and therefore the proposed image encryption scheme can resist statistical attack, differential attack, known-plaintext attack as well as chosen-plaintext attack. The security and performance analysis of the proposed image encryption scheme are carried out thoroughly. All the experimental results show that the proposed image encryption scheme is highly secure and demonstrates excellent performance. Especially, we compare the performance with some other existing image encryption schemes. The comparison also demonstrates that the proposed image encryption scheme is superior. For example, the correlation between adjacent pixels is significantly reduced compared with Wang’s scheme [26], Chen’s schemes [27, 28]. Moreover, we introduce co-occurrence histogram to reflect the encryption effect of the cipher-image. The information entropy correlated with co-occurrence is also introduced to measure uniformity level of the two-dimensional histogram. The experimental results on co-occurrence histogram and its related entropy are compared with Zhang’s scheme proposed in [29]. As for differential attack analysis, the NPCR and UACI performance reach a satisfactory level; NPCR and UACI are very close to their expectation values by one round of encryption.

The rest of the paper is organized as follows. In Section 2, multimodal skew tent map with  tents is constructed and its chaotic properties are simply analyzed. Section 3 proposes a novel image encryption scheme composed of one half-pixel-level interchange permutation process and one diffusion process based on multimodal skew tent map. The decryption process is also stated in this section. The security and performance of the proposed image encryption scheme are evaluated via detailed analysis and experiments in Section 4. Section 5 draws some conclusions.

2. The Multimodal Skew Tent Map


 The unimodal skew tent map  is given by  To : [0, 1] → [0, 1]  is given by

where  is the control parameter and

is the state of the map. It is a noninvertible map of the unit interval onto itself. For any , the unimodal skew tent map (1) has Lyapunov exponent

which is larger than 0, implying that the map is chaotic. There exist some good dynamical features in the skew tent map. It has been verified that the probability density function  of the skew tent map is the same as the regular tent map [30],

where  is the control parameter and

We generalize the unimodal skew tent map (1) to multimodal skew tent map  To : [0, 1] → [0, 1]  defined by

where

and  M is referred to the number of the map. See Fig. 1 for the case of  M=3 ,  a=[0, 0.16, 0.3,  0.51, 0.68, 0.78, 1.0].

Fig. 1.  The diagram of a multimodal skew tent map.

A typical orbit  x0=0.367  of  generated by the dynamical system (3) is { xk = Tk (x0), k=0,1,.. }, shown in Fig. 2(a) for a=[0, 0.16, 0.3,  0.51, 0.68, 0.78, 1.0] ,  M= 3. Its waveform is quite irregular, implying the system’s chaotic nature. To illustrate the distribution of the orbit points { x: k=0, 1,….20000}, we depict the histogram of Fig. 2(b). It can be seen that the points  of the orbit spread more or less evenly over the unit interval. As a matter of fact, multimodal skew tent map possesses desirable auto-correlation and cross-correlation features as well. The trajectory is applied to calculate the correlation coefficients, which are shown in Figs. 2(c)-(d) respectively. The cross-correlation coefficients are calculated by the orbits of x0=0.367  and y0=0.368 . he control parameter a1,…, a2M-1 and the initial condition x0 can be regarded as cipher keys if the multimodal skew tent map is applied to design image encryption schemes.


Fig. 2. Orbits derived from the considered multimodal skew tent map with

a=[0, 0.16, 0.3,  0.51, 0.68, 0.78, 1.0].

The probability density  ρ (x) for multimodal skew tent map on [0, 1] is the same as that of unimodal one [31]. This fact has been illustrated by Fig. 2(b). The existence and unique value of the Lyapunov exponent also follows from the following theorem. It has been shown that for the multimodal skew tent map (3) with the constant probability density ρ (x)=1, the Lyapunov exponent of (3) is (see [31] for more details)

λ is always larger than zero, implying the dynamical system is always chaotic. For M= 3 , a=[0, 0.16, 0.3,  0.51, 0.68, 0.78, 1.0] , we obtain
so  λ  = 1.7608. It is usually larger than the Lyapunov exponent for the unimodal skew tent map (1). As a matter of fact, for the unimodal skew tent map (1), the largest Lyapunov exponent  occurs at the extreme case a=0.5. It implies that the multimodal skew tent map (3) is in a stronger sense chaotic, and therefore can perform better data mixing, which makes it a better choice for designing encryption schemes than the unimodal skew tent map. We will show more details in the following sections on the proposed image encryption scheme based on the chaotic multimodal skew tent map

3. The Process of Image Encryption Scheme


In this section, the proposed image encryption scheme is proposed. We read a 8-bit (256 gray-level) plain-image P  with size X W. In this paper, we restrict the plain-images   with equal height  and width , that is , W . Regarding the plain-images with unequal height  H and width W, we can just enlarge the image to be one with equal height  and width  and then encrypt it by the proposed image encryption scheme. The plain image is expressed by a two-dimensional matrix sized  X W  whose elements belong to the integers between 0 and 255. The flowchart of the encryption process is depicted in Fig. 3. The image encryption scheme consists of two processes: permutation and diffusion.

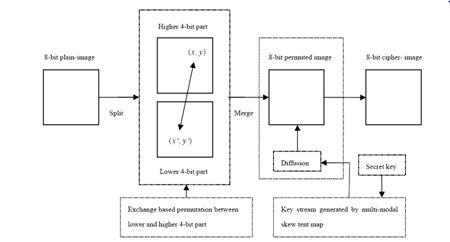

Fig. 3. Flowchart of the encryption process

 3.1. Permutation Process

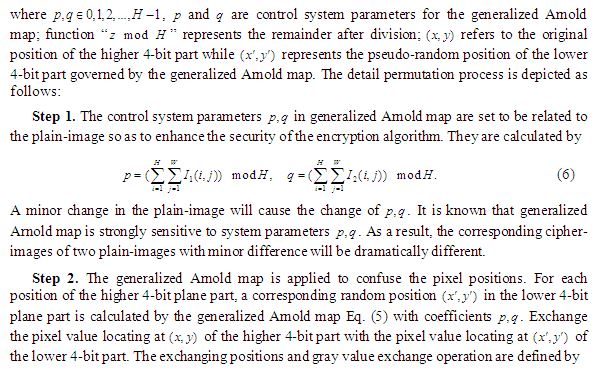

In the permutation process, the plain-image  is decomposed into two parts: the higher 4-bit plane part I2 and the lower 4-bit plane part I1 .  I1, I can be regarded as 16 gray-level images consisting of the 1-4 and 5-8 bit planes of the plain-image respectively. The pixels between I1 and  I2 are  exchanged by generalized Arnold map defined as Eq. (5).

Step 3. Integrate the two exchanged images together to be one permutated image :

3.2. Diffusion Process

Though the permutation process has changed the pixel positions of the plain-image as well as the pixel gray values, it has been pointed out that the permutation-only encryption is not secure [10]. In order to enhance the security, some diffusion function should be designed to assist the permutation process. In the diffusion phase, the values of all the pixels are systematically modified. An ideal secure encryption scheme should have a good diffusion mechanism. The diffusion process can significantly change the statistical properties of the plain-image by spreading the influence of each bit of the plain-image all over the cipher-image. The diffusion process will enhance the resistance to statistical attack and differential attack effectively, in which the histogram of the cipher-image is fairly uniform and is significantly different from that of the plain-image. The opponent cannot find any useful clues between the plain-image and the cipher-image and so cannot break the cryptosystem even when they spend a lot of time and effort. We applied the multimodal skew tent map to produce pseudo-random gray value sequence in the diffusion process. The diffusion process is outlined as follows.
3.3. The Decryption Process

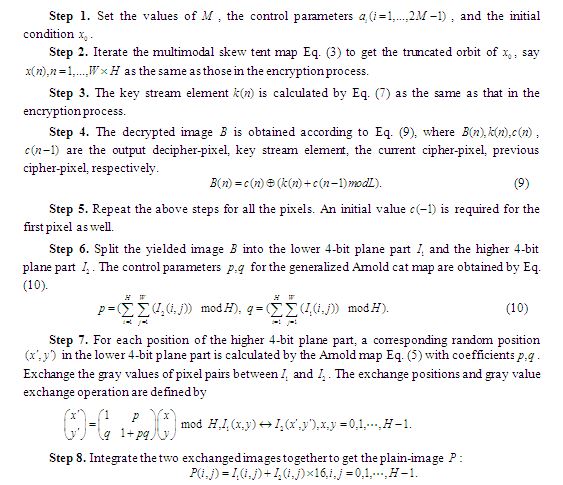

The decryption procedure is the reverse process of the encryption and the flowchart of the decryption process is shown in Fig. 4. The entire decryption procedure is depicted as follows.

Fig. 4. Flowchart of the decryption process.

4. Security and Performance Analysis


According to the basic principle of cryptology [2], a good encryption scheme requires sensitivity to cipher keys, i.e., the cipher-text should have close correlation with the keys. An ideal

encryption scheme should have a large key space to make brute-force attack infeasible; it should also well resist various kinds of attacks like statistical attack, differential attack, etc. In this section, some security analyses have been performed on the proposed image encryption scheme, including the most important ones like key space analysis, statistical analysis, and differential analysis. All the analyses show that the proposed image encryption scheme is highly secure.  We use MATLAB 7.0 to run the encryption and decryption process in computer with GHz CPU, GB memory and Microsoft Windows operation system. All the results in this article are obtained under this circumstance. The plain-image is Lena.bmp of size , the keys are , a=[0, 0.16, 0.3,  0.51, 0.68, 0.78, 1.0] ,  M= 3.  Fig. 5 shows the results of encryption and decryption.

Fig. 5. Encryption and decryption results.

4.1. Statistical Analysis

It is well known that the statistical property of a cipher-image is enormously vital and an ideal image algorithm should be robust against any statistic attacks. Histogram and correlation of adjacent pixels are two important indicators of statistical analysis.

Histogram. Histogram analysis visually reveals the distribution information of pixel gray values. A good cipher-image should have a uniform and completely different histogram in comparison with that of the plain-image. Histograms of plain-image and cipher-image are plotted, through which we can intuitively see the number of pixels of each intensity value. A good image algorithm should make the histogram of cipher-image as uniform as possible. The histograms of plain-image Lena and its cipher-image are shown in Fig.6.  Fig. 6(a) and Fig. 6(b) are Lena image and its histogram respectively; Fig. 6(c) and Fig. 6(d) are the cipher-image of Lena and its histogram respectively. We can observe that the histogram of the cipher-image obtained by the proposed image encryption scheme is fairly uniform and is significantly different from that of the plain-image. The proposed image encryption scheme does not provide any useful information for the opponents to perform any effective statistical analysis attack on the cipher-image.

Correlation of adjacent pixels. Generally speaking, as for an ordinary nature image with definite meaningful visual content, each pixel is highly correlated with its adjacent pixels either in horizontal, vertical or diagonal direction. An ideal encryption technique should produce cipher-images with less correlation between adjacent pixels. To quantify and compare the horizontal, vertical and diagonal correlations of adjacent pixels in the plain and cipher images, we calculate the correlation coefficients for all the pairs of horizontally, vertically and diagonally adjacent pixels respectively. The results are shown in Fig.7. The correlation coefficients  for two groups of adjacent pixels’ intensity values are calculated using Eq. (11) [32] :

Fig. 6. Histograms of plain-image Lena and its cipher-image.

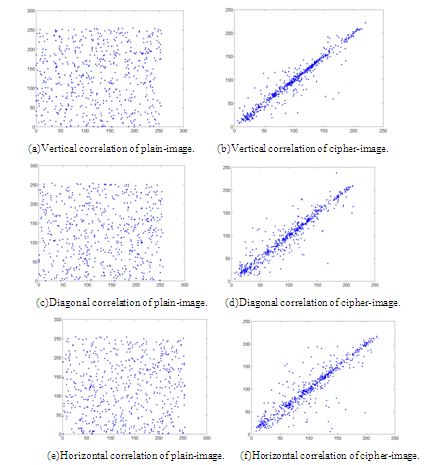

Fig. 7.  Correlations of adjacent pixels.

The correlation distributions of two adjacent pixels in the plain-image Lena and that in its corresponding cipher-image are show in Fig. 7. From Fig.7 and Table 1, We can conclude that the correlation between adjacent pixels is greatly reduced in the cipher-image. There are no detectable correlations between the plain-images and their corresponding cipher-images. We also perform the comparison of dajacent pixel correlation with Wang’s algorithm [26], Chen’s algorithm [27] and Chen’s algorithm [28]. In our proposed scheme, the correlation coefficients are significantly reduced than other algorithms, we can intuitively see the changes from Table 2.

Table 1. Correlation coefficients of adjacent pixels in the plain and cipher images.

Table 2. Correlation coefficients of adjacent pixels in plain-image Lena by different algorithms.

Furthermore, we introduce a new statistic index to reflect the effect of the cipher-image, which is called the co-occurrence histogram [33]. The co-occurrence histogram in the horizontal direction is defined by Eq. (12).

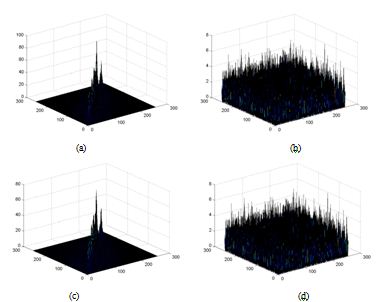

The co-occurrence histogram in the vertical direction is defined by Eq. (13).

Fig. 8. Co-occurrence histograms: (a), (c) are vertical and horizontal co-occurrence histograms of plain-image; (b), (d) are vertical and horizontal co-occurrence histograms of cipher-image.

Table 3. Co-occurrence histogram entropies of our proposed algorithm.

Table 4. Co-occurrence histogram entropy of other algorithms.

4.2. Information entropy analysis

In [2], entropy was proposed by Shannon so as to quantitatively measure the randomness and the unpredictability of an information source. The mathematical formula for the entropy of a message source is defined in Eq.15), where s is the source, N is the number of bits to represent the symbols, and  P(si) is the probability of the symbol si.

For a purely random source emitting of 2k symbols, the entropy is N . Therefore, the upper-bound entropy of an effective cipher-image with 256 gray levels is 8. Such expected value will be achieved when the cipher-image is uniformly distributed, i.e., the image has complete flat histogram.

The results of the information entropy analysis for four 256 gray scales standard test images with size  256 x 256 are listed in Table 5. The results illustrate that the entropies of the cipher-images are very close to the upper-bound value 8. As indicated by the calculated values, the information entropy of our proposed algorithm is bigger than that of Chen’s algorithm [28]. Nevertheless, all of them are very close to the ideal value 8. We can therefore come to the conclusion that there is little possibility to eavesdrop and our encryption scheme has high robustness against entropy attack.

Table 5.  Entropies of plain image and its cipher image

Number of pixel change rate (NPCR) and unified average changing intensity(UACI) are usually used to measure the sensitivity of the cryptosystem to a slight modification of the plain-image. In an ideal situation, a slight modification of the plain-image will lead to a completely different cipher-image which would indicate its resistance to differential attack. Otherwise, it would have been possible to obtain the correlation between the plain-image and the cipher-image by a series of attacks of this nature. In order to calculate NPCR and UACI, suppose two plain images  I1  and I2  with difference in only one pixel, and their cipher images are denoted as and . Then we create a matrix D, when , C1 (i,j) = C2 (i,j), D(i,j)=0  ; otherwise, D(i,j)=1 . NPCR and UACI are calculated by Eq. (16).

where W, H are the width and height of the images.

To test the influence of one pixel change on the whole cipher-image, we randomly select 100 pixels from the processing image and then alter each pixel’s gray value by one bit each time. Then, we calculate the corresponding 100 NPCR and UACI values and take the average of them.  The average NPCR and UACI values are shown in Table 6.  It shows clearly that the algorithm reaches very good NPCR performance when encrypted just one round of encryption. The UACI performance is similar. From the results we know that the proposed image encryption scheme is extremely sensitive to plaintext, which is very important to resist differential attack. Table 7 gives the comparison of performance of UACI and NPCR when encrypting the image of Lena applying one round of encryption. The expectation value of NPCR and UACI are 99.6094% and 33.4636%. Table 7 indicates that the performance of the proposed algorithm is better than Wang’s algorithm [26], Chen’s algorithm [27] and Chen’s algorithm [28] when encrypting images one round. Therefore, one round of encryption by our proposed scheme is secure enough to resist differential attack.

Table 6. NPCR-UACI performance of the Lena and cameraman images.

Table 7.  NPCR-UACI performance of different algorithms.

4.4. Key Space Analysis

The key space is the total number of different keys that can be used in a cryptosystem. In [34], it is suggested that the key space of a chaos-based image cryptosystem should be larger than . As to the proposed scheme, no other chaotic system is introduced in the permutation phase, and the key space wholly depends on the diffusion key, denoted as Key-P. The initial value x0, c (-1) ,  and control parameter ai (i=1,..,2M-1)  of multimodal skew tent map serve as the primary key of the proposed cryptosystem. According to the IEEE floating-point standard [35], the computational precision of the 64-bit double-precision number is about 10-16 . Due to the fact that x0 can be any one among those 1016  possible values within (0,1), and so as ai, (i=1,..,2M-1) . Regarding  L gray-level image, the valid values of c (-1) is L . For the case M=3 , we can take an  example ,x0 =0.367, =[0, 0.16, 0.3, 0.51, 0.68, 0.78, 1.0], =87, then the key space of the proposed cryptosystem is

which satisfies the security requirement suggested in [34], and is large enough to resist brute-force attack.

4. 4. 5. Key Sensitivity Analysis

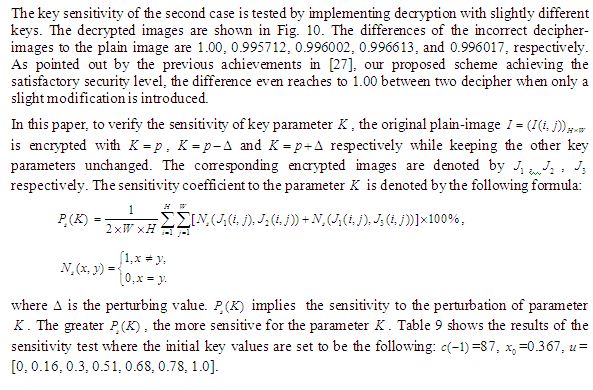

Key sensitivity of an image cryptosystem can be observed in two aspects: (i) completely different cipher images should be produced when slightly different keys are applied to encrypt the same plain-image; (ii) the cipher-image cannot be correctly decrypted even tiny mismatch existing in decryption keys. With regard to the symmetrical characteristic of the secret key, we typically test the sensitivity of C(-1) , x0 , u ,  so as to avoid redundancy.

To evaluate the key sensitivity in the first case, the encryption is first performed with master cipher keys =87, x0=0.367, u = [0, 0.16, 0.3, 0.51, 0.68, 0.78, 1.0]. A valid and slight modification is introduced to one of the cipher keys with others remaining unchanged and the encryption process is executed once again. The corresponding cipher-images and the difference images are shown in Fig. 9. The differences between the corresponding cipher-images are numerically computed, as listed in Table 8. The results obviously demonstrate that the cipher-images exhibit no similarity one another and there is no significant correlation that could be observed from the differential images.

Table 8. Key sensitivity

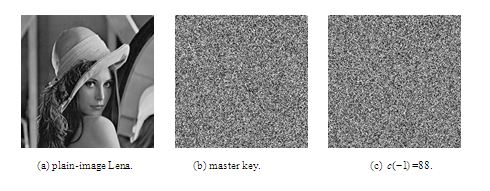

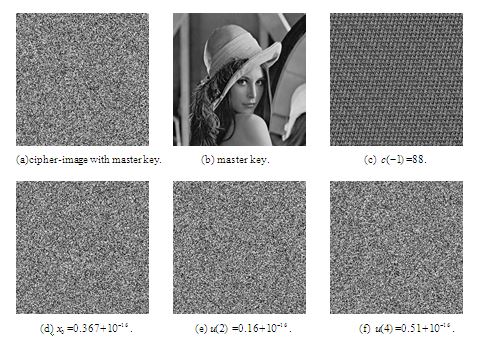

Fig. 9. Key sensitivity test I: master key is set to be c(-1) = 87, x0=0.367, u =[0, 0.16, 0.3, 0.51, 0.68, 0.78, 1.0]. (b),(c),(e),(g),(i),(k) are the cipher-images using different cipher keys with minor perturbing.

4.6. Speed Performance

Wong et al. have pointed out that the consumption time of an image cryptosystem is mainly resulted from the real number arithmetic operation in the encryption process [36,37]. To evaluate the execution time of the proposed scheme and those of the comparable algorithms, the standard test image Lena.bmp is subjected to one round of encryption. The execution times can be found in Table 10. Table 10 illustrates that the total execution time of the proposed scheme is much shorter than those of the comparable algorithms. Especially, in Chen’s algorithm [27], the authors divided the whole image into four parts based on dynamic random, the time-consuming is inevitable in both the confusion phase and the diffusion phase.

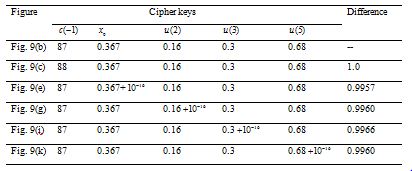

                      Table 9. Results regarding the sensitivity to cipher keys.

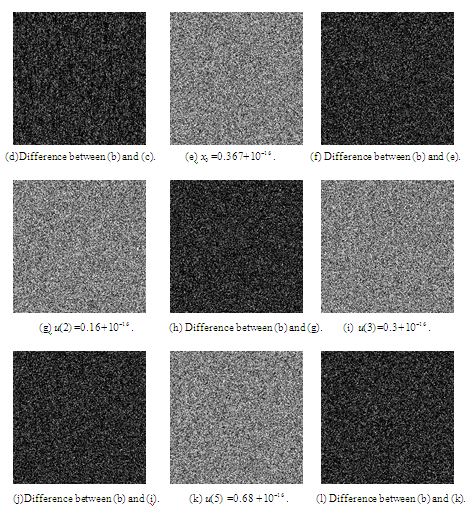

Fig. 10. Key sensitivity test II: (b)-(f) are the corresponding decrypted images using different cipher keys with minor perturbing.

Table 10. Speed performance.

5. Conclusion


An efficient image encryption scheme based on a half-pixel-level interchange between the higher 4-bit plane part and the lower 4-bit plane part is proposed in the paper. The proposed encryption scheme can shuffle the plain-image efficiently in the permutation process. An effective diffusion process is also designed to alter the gray values of the whole image pixels. Security and performance analyses including co-occurrence histogram, key space analysis, key sensitivity analysis, statistical analysis, information entropy analysis, differential attack analysis and speed rate are performed numerically and visually. All the experimental results show that the proposed encryption scheme is highly secure thanks to its large key space, its high sensitivity to the cipher keys and plain-images. The proposed encryption scheme is easy to manipulate and can be applied to color images as well.  All these satisfactory properties make the proposed scheme a potential candidate for encryption of multimedia data such as images, audios and even videos.
