A Bastion Mobileid-Based Authentication Technique (Bmbat)
Abdelmunem Abuhasan and Adwan Yasin
Department of Computer Science, Arab American University, Jenin, Palestine
Despite their proven security breaches, text passwords have been dominating all other methods of human authentication over the web for tens of years, however, the frequent successful attacks that exploit the passwords vulnerable model raises the need to enhance web authentication security. This paper proposes BMBAT; a new authentication technique to replace passwords, that leverages the pervasive user mobile devices, QR codes and the strength of symmetric and asymmetric cryptography. In BMBAT, the user’s mobile device acts as a user identity prover and a verifier for the server; it employs a challenge-response model with a dual mode of encryption using AES and RSA keys to mutually authenticate the client to the server and vice-versa. BMBAT combats a set of attack vectors including phishing attacks, man in the middle attacks, eavesdropping and session hijacking. A prototype of BMBAT has been developed and evaluated; the evaluation results show that BMBAT is a feasible and competitive alternative to passwords.
Web Authentication, Mobile Authentication, phishing, User Identity, Password.
The rapid and continuous advances in web technologies have made the internet industry to be part of almost everyone’s today life; from the widely spread social media to companies and financial institutions that offer their services online; thus imposing the very importance of securing the world wide web, especially for end users’ private data. One aspect of a website security is the process of authenticating end users to the website services, while the traditional text-passwords are the dominant option for end user authentication, huge efforts -in both the industrial and academic sectors- have been conducted to replace this sticky password scheme; researches concluded that passwords are vulnerable to security attacks  including brute-force attacks, guessing, key- loggers, phishing attacks, malwares, eavesdropping, dictionary attacks, etc.
Password authentication have been analyzed over years in an attempt to identify its potential strength and weakness points, a survey of corporate users  found that users are confused by the password policy requirements and that they write their passwords on posting notes, thus compromising the security of their accounts. A study on  found that users are registered in accounts for which they forgot their passwords and even confused of whether they registered in such accounts or not, so users are usually overwhelmed by the number of passwords they maintain for different websites.
According to , three factors contribute to the success of any web authentication scheme: usability, deployability and security. In terms of usability, passwords are considered good in achieving usability measures, as they are easy to learn, efficient to use (just typing a few letters) and easy to recover from loss as websites usually provide fallback mechanisms for users to recover their passwords.
Passwords most success is in their deployability features; they are accessible, incorporate zero cost for both users and vendors, compatible with both server and browser infrastructure, mature and not proprietary.
Regarding security, passwords evaluate to poor in security measures; they are not resilient to physical observation as they can be automatically observed by key loggers or through a high quality video recording of the keyboard . Also, passwords are vulnerable to dictionary attacks and guessing attacks, not resilient to leaks from other verifiers and most importantly, they are not resilient to phishing attacks.
The poor security evaluation of passwords made users and website vendors to accept to compromise their usability and deployability features for the benefit of more secure authentication schemes. In this paper, we propose and implement an authentication scheme that replaces password authentication, giving the required security level for users and their private data while keeping an accepted level of usability and deployability features, this balance makes the proposed scheme feasible and possible to be implemented and adopted by websites.
This paper is organized as follows, in section 2 we explore the related literature and introduce a set of recent web authentication techniques, section 3 outlines in details the proposed authentication technique including system design, contributions, scenarios of account creation and account sign-in processes, fallback mechanism, system evaluation and security analysis, system implementation and performance analysis. The paper is concluded with future work and conclusions.
2. Related Work
In the literature of human authentication to web applications, many different authentication techniques have been proposed and implemented with different strategies and flavors, including federated sign-on protocols, graphical passwords, dynamic passwords, onetime passwords, QR code based authentication in addition to incorporating other authentication factors in addition to the text-password authentication like biometrics, mobiles, software and hardware tokens. In this section, we review a set of recent authentication schemes.
Federated sign-in protocols allows a web application to authenticate its users using a trusted identity server that verifies the user identity and confirm the user authentication process,while this scheme helps users to stop remembering passwords for the websites they are registered in, it could turn into a complete compromise of all user’s accounts in case this authentication to the identity server has been compromised. OpenID  and Facebook Connect  are two famous examples of this authentication model, Facebook Connect relies on OAuth  protocol-,thus giving relying parties access to the users’ profiles on Facebook, which is considered an added value for those relying parties to adopt such an authentication scheme, but at the same time making users’ private data partially open to service providers.
Ben Dodson et al.  proposed Snap2Pass, a mobile based authentication system that aims at replacing the traditional password-based web authentication; leveraging either RSA model or symmetric key encryption. Snap2Pass is based on the challenge-response authentication model; where the server sends a challenge (encrypted token) to the user encapsulated with a QR code, who in turn needs to scan, decrypt and send it back to the server for identity verification. While this scheme successfully replaces traditional password-based web authentication, two weakness points could harm both the usability and security of this scheme, namely the user’s mobile internet connectivity need and the shared key distribution mechanism.
Facebook Account Kit  is a recently announced authentication service to enable users to authenticate to their applications using their mobile numbers or email addresses only; the web application service provider needs to integrate with Facebook Account Kit such that users will receive a confirmation SMS code when they wish to login to their web sites.
SQRL  is a recent QR code based 2-factor authentication that uses a mobile app with a 256-bit blob of secret data. for each user login attempt, the server generates a QR code encapsulating the server’s authentication service concatenated to a long unique randomly generated token, the mobile app then cryptographically hashes the domain name of the site using the user’s predefined master key to generate a site specific public and private keys. Then the app signs the entire URL with the site specific private key and sends the signed URL to the server along with the site-specific public key, the server uses the received public key to verify the validity of the signature for the URL and recognize the user using the received public key.
The authors in  proposed a user authentication scheme that leverages a user’s Android smartphone and SMS to resist password stealing and password reuse attacks, such that the user identity is verified using the mobile application by sending an encrypted one-time secret to the server using SMS such that the server can verify the user’s identity.
The authors in  proposed the concept of virtual password authentication, where a user-specified function is used to calculate the virtual password with a tradeoff of security for a little more complexity for the user in computing the specified function. Users are authenticated using a dynamic password computed each time using the user’s specified function.
Cronto is a commercial transaction authentication system to protect online bankingtransactions against malware on the user’s browser, on this scheme, the user needs to confirm his online transaction using his mobile phone; the website encapsulates an encrypted text containing the transaction details and a onetime code and sends it back in aQRcode to the client browser, then the user needs to scan this code into his mobile and decrypt the transaction data per-device key it shares with the bank and display the transaction details in the phone screen, the user then confirms the transaction by entering the transaction password in the browser.
Another authentication scheme proposed by E.Gal´an, it relies on generating one-time dynamic and portable URL for each user once he logs in to the web application. This URL is generated specifically for the user in the specified session and then sent to the user through a predefined communication channel (usually SMS or email address).After generating the URL, the server encrypts it using a shared key with the user; when the user receives the encrypted URL he is required to decrypt it and then access the web application through this URL.
Xie et al. proposed CamAuth, a 2FA scheme that leverages user’s mobile as a second authentication factor, where user identity is proved using a combination of Diffie-Hellman keys exchanged between the client browser (through an extension or Add-on) and the server, and then verified using the user’s mobile device via exploiting both the user PC and mobile cameras to exchange data that is encapsulated within a QR code. Despite the security features that are implemented in CamAuth, the usability and deployability drawbacks could limit the adoption of such an authentication scheme.
Another category of 2FA schemes rely upon client side generation of one time passwords to be used as a second authentication token; a popular 2FA method that falls in this category is Google Authenticator . Google Authenticator (GA) is mobile software that generates offline
authentication codes that are used as a second authentication token; such that when the user access his account, he is requested to enter the generated code in addition to his credentials. Dmitrienko et al.  performed a security analysis that concluded that such schemes are vulnerable to attacks especially in the registration phase; a PC standing malware can intercept the QR code that encapsulates the pre-shared secrets, then the attacker can initialize his own version of GA and thus being able to generate valid authentication codes for the compromised account.
Czeskis et al. proposed PhoneAuth, a 2FA scheme in which the user mobile is considered a second authentication factor in addition to the user credentials; the user is authenticated after signing the login ticket (generated by the server) with the client private key that resides in the user’ mobile. The login ticket is communicated back and forth between the client browser and the mobile application through Bluetooth.
3. Proposed Authentication Scheme
BMBATis designed to meet a set of design guidelines; including achieving mutual authentication between the server and the user through his mobile device, supporting multiple user accounts on different web applications and a secured communication channel (using SSL) between the user mobile and the server.
The proposed authentication method applies the concept of mutual authentication so that the web server proves its identity to the user mobile client and the user mobile client proves its identity to the server before authenticating the user session. As depicted in figure 1, the proposed mutual authentication process incorporates five steps:
Step 1: The user initiates the process by presenting his user name through the web browser to the web server.
Step 2: The web servers validates the user name and prepares the authentication token using the server certificate private key and the shared key, and then encapsulates it with a QR code and send it back to the user browser.
Step 3: The user scans the QR code with his mobile app, processes the login ticket by decrypting it using the server’s public key and the shared key to verify the server’s identity, and confirms the user identity to the server or extracts the login code and displays it to the user (further discussion of this step is outlined in section 3.3).
Step 4: The application server receives the decrypted nonce, verifies the user identity and authenticates the user’s session.

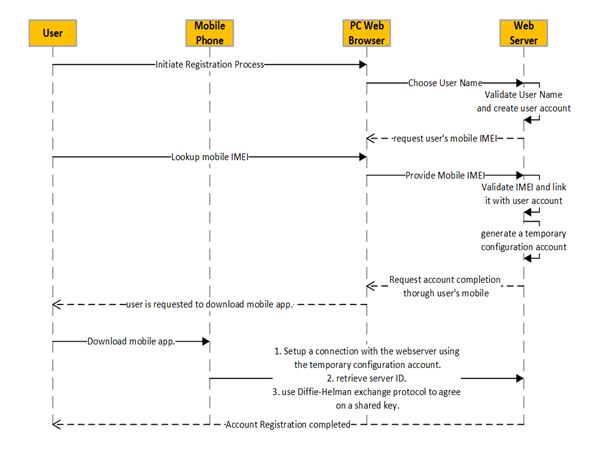

3.2 BMBAT Account Creation
In order for a user to be registered in a website the leverages BMBAT for users’ authentication, the user needs to complete a set of steps to identify himself to the website; Figure 2 depicts the main scenario of the registration process. Table 1 summarizes the components notations used in BMBAT.
Step 1: the user is required to specify a valid user name that identifies his account and submit it to the web server along with his mobile IMEI (International Mobile Equipment Identity) code and a valid email address to initiate the account creation process.
Step 2: the web application validates the user name, user email and the IMEI code, and then creates the user account and generates a temporary configuration account credentials to be used by the user to complete the registration process from his mobile device.
Step 3: the user needs to install the BMBAT app in his mobile device if it is not already there.
Step 4: the user uses the temporary configuration account that was generated in step2 to connect to the web app through BMBAT app, at this stage BMBAT completes the user registration by retrieving the server’s public key and the server ID and associating it with the user name and then establishes an agreement with the web server on the shared key; using Diffie-Hellman key exchange protocol.
The communication between BMBAT and the web application at the registration phase is assumed to be carried over a secured connection (typically HTTPS) to protect the registration data from any unauthorized access.
The association of user name with a server ID is necessary for BMBAT to support multiple accounts on different web applications for the same user. This association is saved in a secure manner in the user’s mobile. The shared keys are also stored in a secure trust store in the mobile phone, we think mobile devices trust stores are secure enough to protect the shared key from unauthorized access, thanks to TrustZone technology  that is implemented in most modern.
3.3 BMBAT User Login

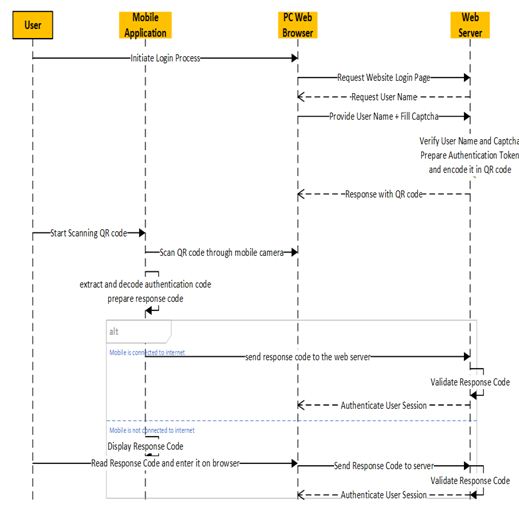

The login phase consists of a set of steps as depicted in Figure 3.
Login initiation: when the user wishes to login to the website, he requests the website login page through his “untrusted” browser, then the web server responds with a login page requesting him to fill his user name in addition to filling the Captchacomponent; the requirement of filling the captcha component is added to prevent attackers from overwhelming the server with auto-generated login requests; built on the assumption that the user name could be publicly known.
User name verification: once the server receives the user name, it verifies that it refers to a registered user, upon success, the server initiates the task of creating the user authentication token.
User Authentication Token: in response to the user login request, the web server prepares a Login Code for that user’s session; it generates a random session nonce (N) and associates it with the user session (SID), server current timestamp (STS) and user name, then it encrypts it with the shared key (K), the resulting cipher is then concatenated with the user name and Server Authentication Service API and then digitally signed with the server’s private key (Pr). the resulting authentication token and ServerID are encoded in a QR code and sent back to the user’s browser. An XML representation of the authentication token contents could be as follows:
The login code generation algorithm is depicted in figure 4.
Response: The encoded QR code is sent back as a response to the user’s browser, the response page also offers an option for the user to enter the deciphered login code as will be explained next.
QR code scanning: now the user needs to scan the QR code that is displayed on the PC browser to complete authenticating himself to the web site, this scan is done using the user’s mobile application that was associated with his account in the registration process.
Once the authentication token is extracted from the QR code in the mobile application, the following actions and options take place (see figure 5):
3.4 Fall-back Mechanism
In case the user mobile is no longer available (due to theft, damage, etc..), the user needs to disassociate his account from the not accessible mobile device, BMBAT offers the option for the user to deactivate BMBAT authentication by visiting all registered websites and requesting sending a deactivation email to his email address, which includes a link through which he can remove his mobile device from the trusted devices.
Also another mitigating factors could be used to protect the user accounts in case the mobile is lost; it is possible to damage the mobile phone data using the privileges granted by the phone vendor, also the user is encouraged to configure his mobile so that a pass code (or maybe a fingerprint) is needed before opening BMBAT app, in this case the attacker needs to bypass the passcode before being able to impersonate the user.
3.5 BMBAT Evaluation and Security Analysis
In order to evaluate BMBAT usability, deployability and security features, we benchmarked it to another four known authentication schemes; based on the web authentication assessment framework proposed by Bonneau et al. . A set of 25 measures have been applied to BMBATandcompared to other four popular authentication schemes; Passwords, Google 2 step-verification , PhoneAuth and CamAuth, the comparison results are shown in Table 2.
The comparative evaluation results show that BMBAT is highly competitive to existing authentication techniques. In terms of usability, BMBAT offers the benefit of eliminating the need for users to remember their passwords and neutralizes password entry errors by eliminating the use of passwords at all, while offering somewhat the benefit of “Nothing to Carry”; as we consider the mobile device to be always side by side to the user.
In terms of deployability, BMBAT is an accessible and zero-cost for the user, but we could not assume at a mature authentication technique as this property needs to be test thoroughly in production environments. The security features of BMBAT enable it to highly compete with similar authentication techniques, the offered security features are discussed as follows:

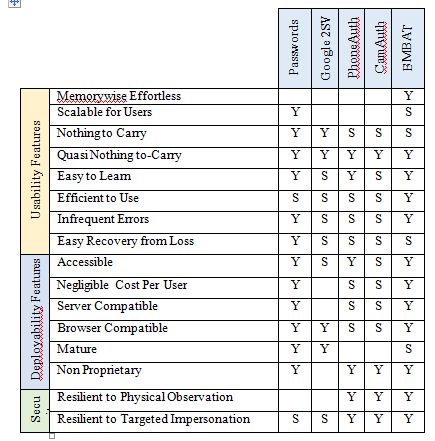

Table 2. Comparison of BMBAT, Passwords, Google 2-Step Verification (2SV), PhoneAuth(in strict mode) and CamAuth.Y=offers the benefit, S=somewhat offers the benefit.
3.6 BMBAT Contributions
BMBAT is designed to offer a better security than text passwords with minimum compromise of usability and deployability for both end users and service providers, it protects against the following attack vectors:
3.7 BMBAT Implementation and performance analysis
We have implemented a prototype system for BMBAT authentication protocol, including a web application and mobile application to act as an identity prover. We built a java-based web application that handles a set of server side services for the authentication protocol including token generation, encryption, QR code generator and an authenticator. the client’s mobile application is developed on android 5.1, and its compatible with android 2.2 and upward platforms, the mobile application is responsible for device registration, maintaining user shared keys, confirming and completing the authentication process, the application uses the necessary APIs for key exchange, storage, encryption, decryption and communications with the server.

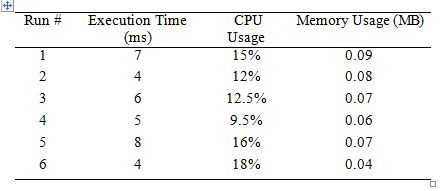

To assess the performance of BMBAT, we conducted a performance test using an emulator in android studio with the following specifications:
In this evaluation we measured two metrics of the non-functional requirements of the system:
The results of the performance test showed that BMBAT -in average- spent 4.3 Milliseconds in executing the algorithm of processing the login code, while consuming 0.08 MB of memory. The whole memory reserved by the application was 2.57 MB. Table 3 depicts the test results of six runs of the algorithm of decrypting the login code using the emulator.
The complete authentication process will include also the time spent in scanning the QR code and communicating the login token to the server, the scan process is assumed intuitive and easy operation for most users, and the process of sending back the login token to the server is an automated process that is expected to add a very little time fraction (in milliseconds).
These performance test results indicate that BMBAT implementation in most modern mobile devices will be feasible and the response time will be accepted by users, making it possible to adopt such an authentication scheme at a compromise of a couple of seconds latency.
4. Future Work
The emergence of the Internet of Things “IoT” opens the door for smaller and maybe more ubiquitous user devices that could be a better replacement for user’s mobile phone for identity proof. So the future may raise the need to reevaluate the cost of executing cryptographic algorithms (either symmetric or asymmetric) on such devices. One prominent choice for replacing such algorithms in BMBAT is to use the less costly elliptic curve cryptography which requires smaller keys compared to AES or RSA but offers the same security levels, thus needs far less processing than current RSA or symmetric key cryptography.
In this work we presented BMBAT, a new web authentication scheme that employs the user’s mobile phone as an identity proofer. This technique employs a dual encryption mode (RSA and AES) to implement a challenge –Response mechanism that enables the web server to identify the user identity in an easy and smart manner. The mobile application completes the response phase by either sending the response directly to the server or by displaying the response code to the user in case the mobile is not connected to the internet. Our evaluation and security analysis of BMBAT concluded that it is a competitive alternative to traditional password-based web authentication and that it overcomes all security breaches that are plausible to passwords. Moreover, we implemented a prototype of BMBAT to prove that it is applicable and a feasible alternative to current web authentication methods.
 J. Bonneau, C. Herley, P. C. van Oorschot, and F. Stajano, “The quest to replace passwords: A framework for comparative evaluation of web authentication schemes,” University of Cambridge Computer Laboratory, Tech Report 817, 2012, http://www.cl.cam.ac.uk/techreports/UCAM-CL-TR-817.html.
 A. Adams and M. Sasse, “Users Are Not The Enemy,” Commun. ACM, vol. 42, no. 12, pp. 41–46, 1999.
 S. Gaw and E. W. Felten, “Password Management Strategies for Online Accounts,” in ACM SOUPS 2006: Proc. 2nd Symp. on Usable Privacy and Security, pp. 44–55.
 J. Bonneau, C. Herley, P. C. v. Oorschot, and F. Stajano, “The quest to replace passwords: A framework for comparative evaluation of web authentication schemes,” in Proceedings of the 2012 IEEE Symposium on Security and Privacy, 2012, pp. 553–567.
 D. Balzarotti, M. Cova, and G. Vigna, “ClearShot: Eavesdropping on Keyboard Input from Video,” in IEEE Symp. Security and Privacy, 2008, pp. 170–183.
 D. Recordon and D. Reed, “OpenID 2.0: a platform for usercentric identity management,” in DIM ’06: Proc. 2nd ACM Workshop on Digital Identity Management, 2006, pp. 11–16.
 Facebook Connect,https://developers.facebook.com/docs/facebook-login/overview, accessed November 2016
 D. Recordon and D. Hardt, “The OAuth 2.0 Protocol,” April 2010, tools.ietf.org/html/draft-hammer-oauth2-00.
 Ben Dodson, DebangsuSengupta, Dan Boneh, and Monica S. Lam, “Secure, Consumer-Friendly Web Authentication and Payments with a Phone”.
 Facebook Account Kit, https://developers.facebook.com/products/account-kit, accessed November 2016
 Secure Quick Reliable Login, https://www.grc.com/sqrl/sqrl.htm, accessed November 2016
 Prajitha M V, Rekha P, Amrutha George A, “A Secured Authentication Protocol Which Resist Password Reuse Attack ”, IEEE Sponsored 2nd International Conference on Innovations in Information Embedded and Communication Systems ICIIECS’15, , 2015
 P. Umadevi and V.Saranya, “Stronger Authentication for Password using Virtual Password and Secret Little Functions”, ICICES2014 – S.A.Engineering College, Chennai, Tamil Nadu, India, IEEE 2014.
 Cronto, http://www.cronto.com/, accessed Novemeber 2016
 E. Gal´an and J.C. Hern´andez–Castro and A. Alcaide and A. Ribagorda ,A Strong Authentication Protocol based on Portable One–Time Dynamic URLs,,2010 IEEE/WIC/ACM International Conference on Web Intelligence and Intelligent Agent Technology.
 MengjunXie, Yanyan Li, Kenji Yoshigoe, RemziSeker, Jiang Bian, “CamAuth: Securing Web Authentication with Camera”, 2015 IEEE 16th International Symposium on High Assurance Systems Engineering.
 Google 2step verification,http://www.google.com/landing/2step/, accessed November 2016
 Alexandra Dmitrienko, Christopher Liebchen, Christian Rossow, Ahmad-Reza Sadeghi, “Security Analysis of mobile two-factor authentication schemes”, Intel technology journal volume 18, Issue 4, 2014.
 A. Czeskis, M. Dietz, T. Kohno, D. Wallach, and D. Balfanz, “Strengthening user authentication through opportunistic cryptographic identity assertions,” in Proceedings of the 2012 ACM conference on Computer and communications security, ser. CCS ’12, 2012, pp. 404–414.
 TrustZone technology,http://www.arm.com/products/processors/technologies/trustzone/, accessed November 2016
 Rescorla, E., Diffie-Hellman Key Agreement Method, RFC 2631, IETF Network Working Group, http://www.ietf.org/rfc/rfc2631.txt
