DYNAMIC RE-CLUSTERING LEACH-BASED (DR-LEACH) PROTOCOL FOR WIRELESS SENSOR NETWORKS

Abdallah Ijjeh1,Abdalraheem Ijjeh2,Huthaifa Al-Issa1,Saed Thuneibat1
1Department of Electrical and Electronic Engineering, Al-Balqa` Applied University / Al-Huson University College, Irbid, Jordan
2Technical college at Ranya, Ranya, Saudi Arabia

ABSTRACT


A Wireless Sensor Network (WSN) contains a large number of sensor nodes equipped with limited energy supplies. In most applications, sensor nodes are deployed in a random fashion. Therefore, battery replacement or charging is considered not practical. As a result, routing protocols must be energy-efficient to prolong the network’s lifetime. In this paper, we propose a new Dynamic Re-clustering LEACH-Based protocol (DR-LEACH) which aims to reduce the energy consumption and extending the network’s lifetime. The idea is to balance energy consumption of Cluster Heads (CHs) by generating clusters with almost equal number of nodes during each round of the network life time. To perform this, we first calculate the optimal number of CHs in each round, and based on that we calculate the optimal size of each cluster. Results show that the proposed protocol improves network lifetime and reduces overall energy consumption compared to LEACH and BCDCP protocols.

KEYWORDS


Wireless sensors network (WSN), dynamic clustering, optimal cluster size, energy balancing, network lifetime, residual energy

1.INTRODUCTION


Wireless Sensors Networks (WSNs) are widely considered as one of the interesting and rapidly developing fields. They have attracted great attention because of the diverse applications they support in both civilian and military sectors [1]. Typically, a WSN consists of a large number of low-cost, low-power, and multifunctional wireless sensor nodes with sensing, wireless communication and computation capabilities. In many applications, the sensor nodes are randomly deployed. Accordingly, the sensor nodes must organize themselves into a wireless network and cooperate to perform the required task. In addition, WSNs are usually battery powered which means it is very difficult to replace or recharge the batteries as soon as the nodes are deployed [2] [3]. Based on that, many techniques were proposed to achieve longer lifetime and efficient energy consumption. Clustering is one of the effective techniques used to save energy in WSNs [4].Clustering means organizing sensor nodes into different groups called clusters. In each cluster, sensor nodes can be either a Cluster Head (CH) or an ordinary member node. A CH is the group leader in each cluster. It collects sensed data from member nodes, aggregates, and transmits the aggregated data to the next CH or to the Base Station [5]. The role of an ordinary member node is to sense data from the environment in which they are deployed and send it to the corresponding CH.

2.RELATED WORK


LEACH is one of the most popular clustering techniques used in WSNs to increase the network lifetime [6] [7]. LEACH is an adaptive, self-organizing and distributed clustering protocol. It assumes that the BS is fixed and located far from the sensors, all sensor nodes are homogenous and have limited energy source, sensors can sense the environment at a fixed rate and can communicate among each other, and sensors can directly communicate with BS. The idea of LEACH is to organize the nodes into clusters to distribute the energy among the sensor nodes in the network, and in each cluster there is an elected node called a CH. LEACH introduces the concept of Rounds each of which consists of two phases. Clusters are formed during the set-up phase and data transfer occurs during the steady-state phase.
A centralized routing protocol (contrast to LEACH which is distributed) called Base-Station Controlled Dynamic Clustering Protocol (BCDCP) was introduced in [8]. BCDCP assumes that the BS has sufficient energy during its operation. Furthermore, it assumes that the BS knows the places of all nodes. The fundamental idea of BCDCP is the formation of balanced clusters centrally by the BS, where each CH manages an equal number of member nodes to avoid CH overload, and organizing placement of the formed CHs throughout the network area. In BCDCP, there are two phases. The first phase is the setup phase, in which, the BS prepares a list of all potential CHs based on their remaining energy level. Then, the BS uses the list to pick out the two farthest CHs, and divides the nodes into two groups based on closeness. Then, it performs a balancing process on the groups. This process is reiterated within each group until all clusters are formed. As soon as all clusters are formed, the BS structures a “minimum spanning tree” that links all CHs, and randomly picks out one CH to forward packets of data to BS. This is in contrast to LEACH where each CH directly communicates with the BS. The second phase of the BCDCP protocol is the steady state phase, in which each CH within each cluster creates a TDMA schedule to minimize collisions between sensor nodes trying to send data to the CH, and the nodes send the sensed data to the CH which performs data aggregation and compression and route it to the CH that is responsible for forwarding the data to the BS.

3.INTRODUCTION TO THE PROPOSED PROTOCOL


In this paper we propose a Dynamic Re-clustering protocol (DR-LEACH) as an improvement over the LEACH protocol. The main goal is to develop a protocol that optimizes the cluster’s size such that each CH serves an approximately equal number of sensor nodes. Consequently, processing and transmission performed by each CH is as equal as possible to each other. As a result, network life time will be extended and nodes will die around the same time. The rest of the paper is organized as follows: Section 2 explains the network and radio models assumed in our protocol. A detailed description of the Methodology of DC-LEACH is explained in section 3. Section 4 demonstrates the experimental of the DC-LEACH. Finally we conclude the paper in section 5.

4.NETWORK ASSUMPTIONS AND RADIO MODEL


In this section we describe the network and radio model assumed in the DR-LEACH. We did use the first radio model used in the original LEACH protocol [6]. The model assumes the following:

  • The BS is fixed during the running of the protocol (immobile).
  • All sensor nodes are homogenous and supplied with the same initial energy.
  • All sensor nodes are stationary.

In addition, we assume that each sensor node is capable to act in two different roles: CH role and normal sensing role. When the node is in the normal sensing role, it senses the environment and sends the sensed data to its CH. In the CH role, it collects the sensed data from its members in the cluster, performs data aggregation and compression, then generates a composite signal and transmits to the BS.
Figure 1 shows the first order radio model. The required energy to transmit and receive a k-bit data message over a distanced d is given by (2) and (3):

pic 1

Where ETX and ERX are the required energy consumed per bit to operate the transmitter or receiver circuitry, respectively. ER is the required energy to receive k-bit data message. and are amplifier parameters correspond to free space and multi-path fading models. is the threshold distance given by :

pic 2

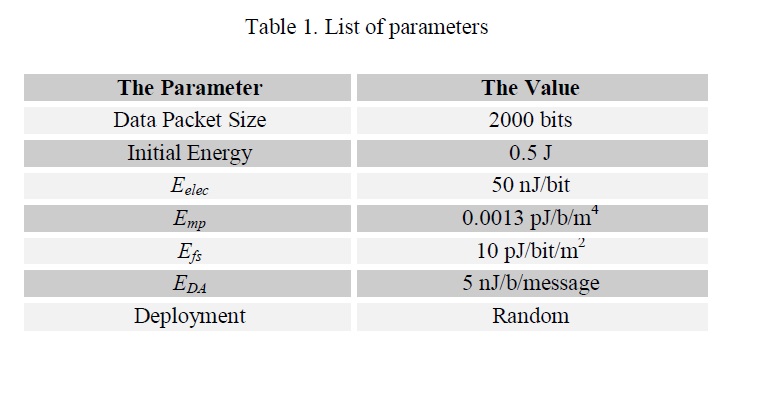

For the purpose of simulations we considered that ETX = ERX= 50 nJ/bit, =10 pJ/b/m2, =0.0013 pJ/b/m4. EDA=5 nJ/b/message, where EDA is the energy required for data aggregation. These values are mostly used in the literature for evaluating LEACH performance [8, 9, 10, 11].

pic 3

5.METHODOLOGY OF THE PROPOSED PROTOCOL


The original LEACH is composed of two phases: the setup phase and the steady-state phase. The proposed protocol, DR-LEACH, is also composed of same two phases. However, it added two more steps in the setup phase: splitting and merging. This section provides a detailed description of the proposed protocol phases.
5.1DR-LEACH SETUP PHASE


At the beginning of the setup phase, initial CHs are elected and clusters are formed similar to the LEACH protocol. The formed clusters are not optimal in sizes, i.e. some clusters might have very small number of nodes while some might have large number of nodes. As a result, CHs which serves a large number of sensor nodes will consume more energy and will die faster than others.

This affects the functionality of the network in the sense that some clusters might get isolated from the network due to fast discharge of the CH. In addition, it also affects the efficiency of energy consumption and the network lifetime. DR-LEACH tries to distribute nodes among CHs equally such that the CH’s have equal amount of work to do in terms of processing and transmission. This will improve the efficiency of the energy consumption and as a result prolonging the network lifetime.

After the initial clusters are formed, we calculate the optimal number of clusters (Kopt) [13]. Kopt is calculated as shown in (5)[14]:


Where n is the number of alive nodes and Dbs is the average distance between the CH and BS. Dbs is calculated as shown in (6)[14]:




Then, we calculate the optimal cluster size (Nopt) by dividing the total number of alive nodes, n, over the previously computed Kopt. That is, Nopt is calculated by:



For the best result, the size of each cluster should be exactly Nopt. However, this requires more computation to guarantee this exact size since a size which is one more or one less than the optimal size will not be considered optimal and hence we have to reprocess the cluster until we get an exact match which will force the protocol to converge after longer time (provided that the total number of alive nose is an exact multiple of Kopt. Otherwise, the protocol will not converge). Therefore, to let the protocol converge faster and reduce processing, DR-LEACH considers a cluster to be optimal if its size lies in an interval that is bound by an upper and lower limits and is centered at Nopt as shown in Figure 2. This interval is called the optimal range of the cluster size. Consequently, if the cluster size is greater than the minimum limit (Nopt_min) and less than the maximum limit (Nopt_max), it is considered as an optimal cluster size. Otherwise, we have to perform re-clustering: splitting large clusters or merging small cluster to form an optimal cluster.

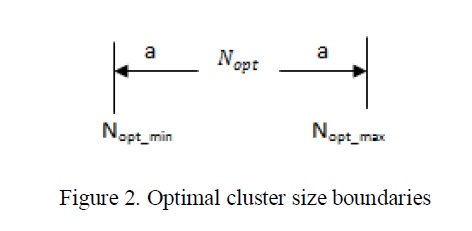

Nopt_max, Nopt_min are calculated as shown in (8) and (9), respectively


Where a is a dummy variable that represent the deviation from the exact optimal cluster size.

For faster convergence and less computation, we assume that Nopt_max is twice larger than Nopt_min such that if we split a large cluster in half, it would result in a two clusters whose sizes are optimal and need no further processing is required. This is shown in (10).



Using equations (8), (9), and (10), we can compute the values of Nopt_min and Nopt_max as shown in (11) and (12), respectively.



As soon as Nopt_max and Nopt_min are calculated, the nest step in the setup phase is that each cluster checks its size. If the cluster size is less than Nopt_min we perform merging. In this step, the CH informs its members that it is no longer a CH, and returns to the normal sensing node. Each detached member node independently joins the closest CH (a one with the highest RSSI signal). If, as a result of merging, a cluster’s size becomes greater than Nopt_max, it is split as described in the next paragraph. Otherwise, it is still in the optimal and no further processing is required. Each time a merging operation is performed, the number of clusters is decreased by 1.

A splitting operation is performed if the cluster size exceeds Nopt_max. In such case, the CH searches its cluster for a node with the highest residual energy. When the CH finds the desired node, it sends a signal message to that node to inform it to become a second CH (CHnd) within the cluster. Then, each node of the cluster joins either of the CH’s based on the RSSI. As a result, the old cluster (whose size is greater than Nopt_max) will be split into two clusters. In the case that one of the resulting clusters has a size that is less than Nopt_min, merging is performed as described in the above paragraph. Each time a splitting operation is done the number of clusters is increased by 1.

The merging and splitting operations are repeatedly performed for all clusters to optimize their sizes. At the end, all formed clusters are between Nopt_min and Nopt_max, which means are optimal range and no further processing in regard of forming clusters is required.

5.2 DC-LEACH STEADY STATE PHASE


As soon as all clusters are formed, each CH creates a TDMA schedule to organize the transmissions of its member nodes. A member node starts sending its sensed data to the CH during its allocated time slot. When the CH receives all data from its members, CH performs data aggregation and data compression then it generates a composite signal and transmitted to the BS. In fact, this is similar to the original LEACH steady state phase. In Figure 3 we illustrate the methodology of our proposed protocol.

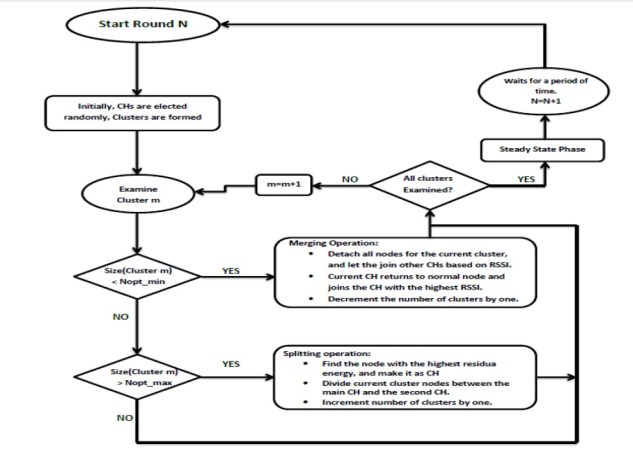

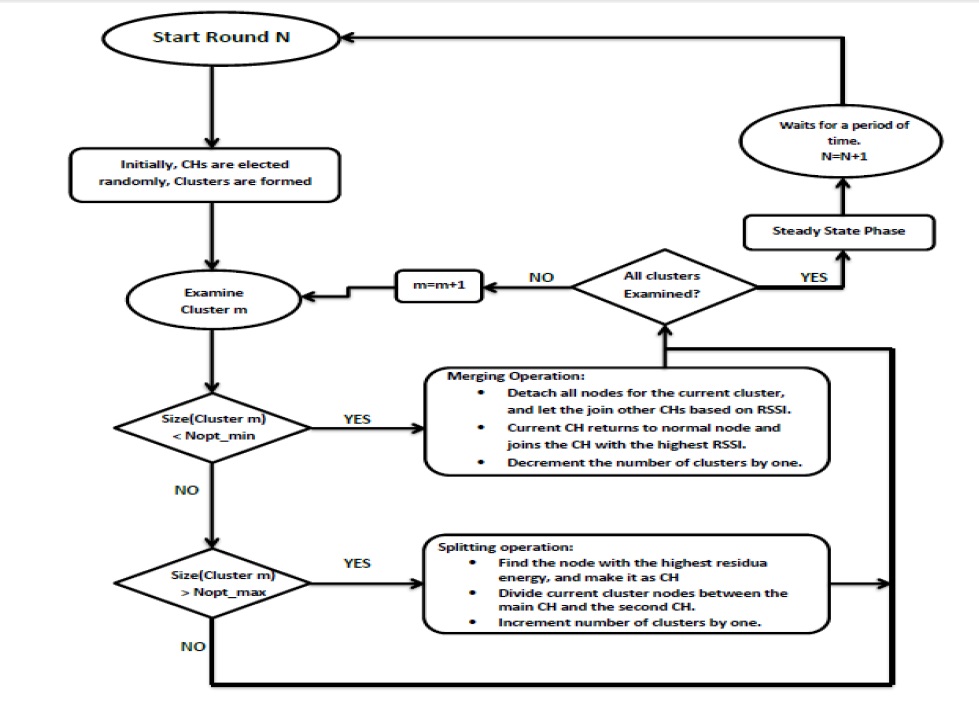

Figure 3: Illustration of the proposed protocol methodology

6.EXPERIMENTAL RESULTS


In this section, the experiment results and performance of the DR-LEACH protocol are presented. The protocol is simulated using MATLAB as were done in [8,6]. Each run of the protocol is repeated 20 times and the results are averaged to guarantee statistical reliability. After that, the results are compared to both BCDCP and LEACH protocols. The performance is measured against the number of alive nodes, total residual energy, first dead node, and 50% dead nodes. Table 1 lists the values of the parameters used in the simulation, which are typically used for evaluating LEACH performance [8,9,10,11].


In the experiment we simulate a 300 sensor nodes deployed in an area of (100×100) m. Different locations of the BS are considered in this experiment. Specifically, the BS is positions at (0,0) [lower left corner], (0, -100), (0, -200), and (150, 50).

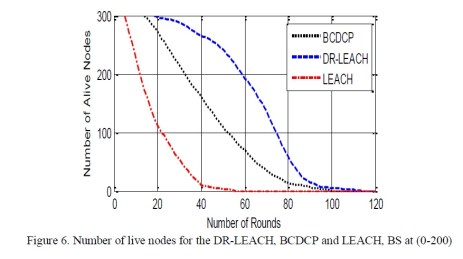

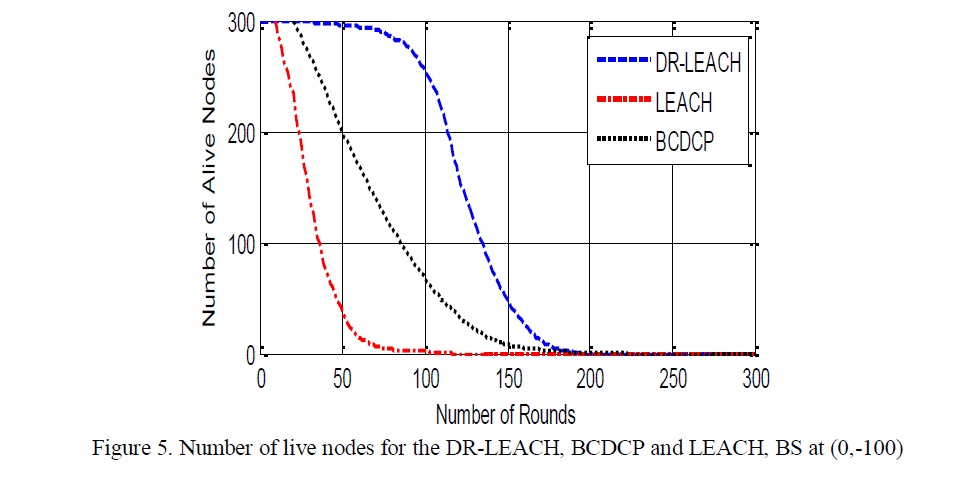

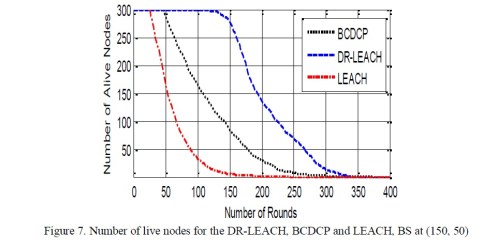

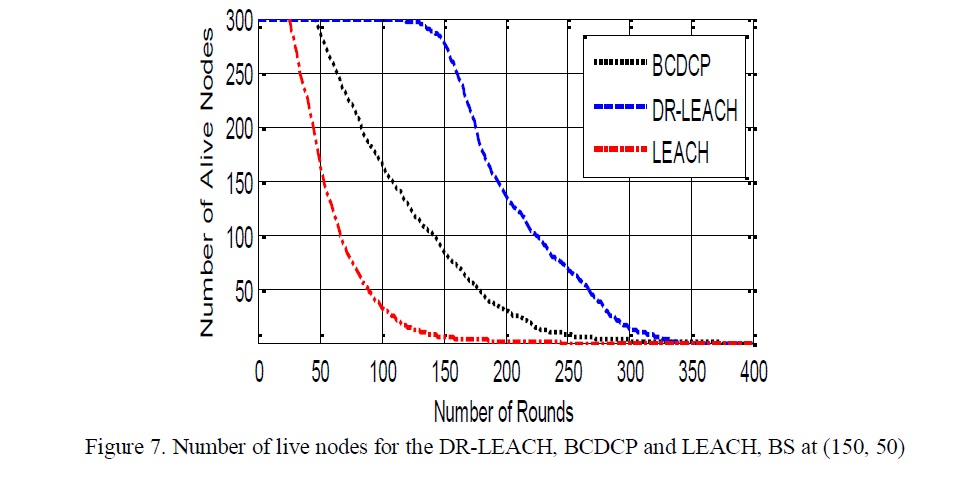

Figures 4, 5, 6, and 7 show the number of alive sensor nodes in each round of the protocols for different positions of the BS. As can be depicted from the figure, DR-LEACH is the most energy-saving protocol for the first dead node, and 50% dead nodes and the last dead node whether the BS is close or far from the nodes. As a result, DR-LEACH extends the network lifetime compared to LEACH and BCDCP protocols regardless of the BS location. Hence, it shows more scalability in terms of how far the BS can be away from the nodes. All of this is due to the way it handle cluster formation and generating optimal clusters.

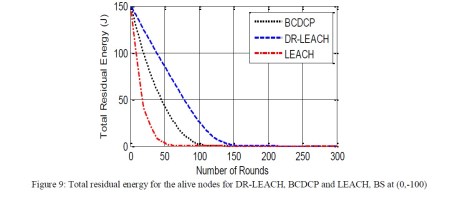

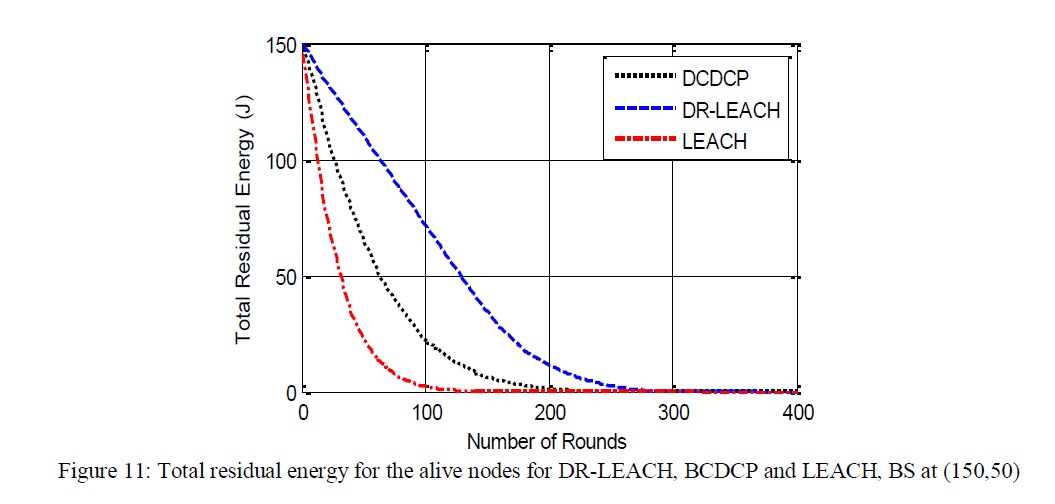

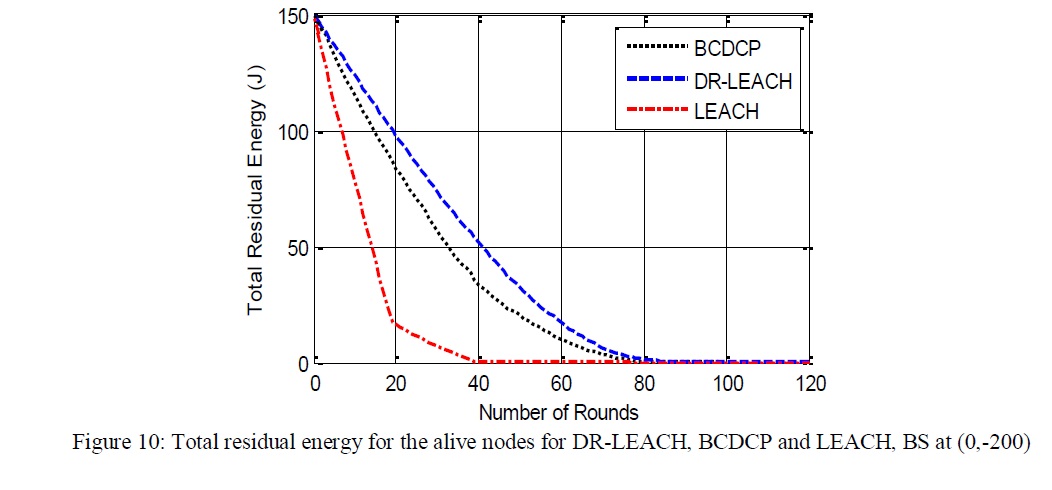

Figures 8, 9, 10, and 11 show the total residual energy during each round of DR-LEACH, LEACH, and BCDCP protocols where the BS is located at (0,0), (0, -100), (0, -200) , and (150, 50) respectively. It can be seen that DR-LEACH is more energy-conserving than the other two protocols. This is due primarily to the dynamic merging and splitting mechanisms it utilizes. This leads to balanced energy consumption between clusters. Consequently, less energy is consumed in each round by a cluster. As a result, more energy is conserved in each round, and the network lifetime is extended, whether for the first dead node, 50% dead node, or the last dead node

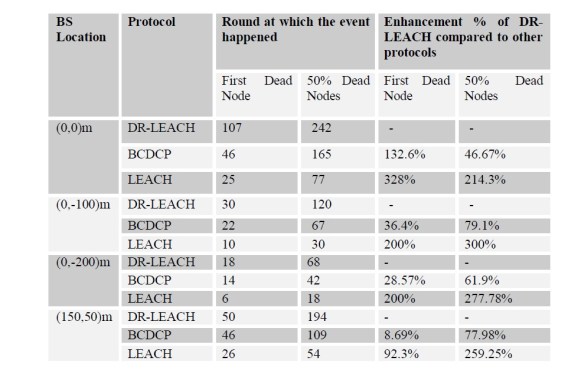

Table 2 summarizes the results of the experiment and provides a comparison of network lifetimes for the first dead node, 50% dead node, and the enhancement percentage of DR-LEACH over BCDCP and LEACH protocols. As can be figured out from the table and the above figures, the location of the BS greatly affects the occurrence rate of the first dead node. Farther BS will result in consuming more energy. However, DR-LEACH performance is still better than the other protocols regardless of the location of the BS. For example, when the BS is at (0,-100) the DC-LEACH is 200% and 300% better than LEACH in terms of first dead node and 50% dead nodes, respectively. In addition, it is 36.4% and 79.1% better than the BCDCP in terms of first dead node and 50% dead nodes respectively at the same location.

Table2: Comparison of network lifetimes for the DC-LEACH, BCDCP and LEACH protocols for different BS locations (No of sensor nodes = 300, area = 100m x 100m).





7.CONCLUSIONS


This paper presents a dynamic re-clustering protocol (DR-LEACH) to balance the load among CHs by taking into consideration the optimal number of CHs and calculating the optimal cluster size. Based on that, the protocol re-clusters all clusters that beneath lower boundary of optimal cluster size and split clusters that are above the upper optimal boundary. Although these techniques will increase up the computational power, but this rise is always negligible compared to the reduction in number of required transmissions. In this paper we have simulated the proposed protocol and compared it with BCDCP and LEACH protocols. Simulation results show that in DR-LEACH is better than both LEACH and BCDCP. In fact, DR-LEACH shows great improvement over LEACH regardless of the location of the BS. For example, an enhancement as large as 328% is achieved when the BS is located at (0,0), and as minimum as 92.3% when the BS is located at (150,50). Also, Improvement over the BCDCP is achieved but in less figures. In addition, simulation results show that DR-LEACH is more energy-conserving than both LEACH and BCDCP protocols irrespective of the BS location. In addition, it can be concluded that the technique of cluster balancing in DR-LEACH is better than the one used in BCDCP since DR-LEACH is more energy conserving. In BCDCP, there is a single CH which is randomly chosen to forward data the BS. All the CHs send their data to that chosen node which will finally send the aggregated data to the BS. As a result, energy consumption is not balanced between nodes. On the other hand, creating equal clusters that directly communicate with the BS distributes energy consumption more evenly which results in having more residual energy in the network. As a result, the network lifetime is extended and the nodes keep running for longer time and die relatively close in time to each other.

REFERENCES


[1] Deborah Estrin et al, “Next century challenges: scalable coordination in sensor networks,” in ACM/IEEE international conference on Mobile computing and networking , New York, NY, USA, 1999 .

[2] C. F. Wang , J. D. Shih, B. H. Pan and T. Y. Wu, “A Network Lifetime Enhancement Method for Sink Relocation and Its Analysis in Wireless Sensor Networks,” Sensors Journal, IEEE (Volume:14 , Issue: 6 ), pp. 1932 – 1943, 2015.

[3] J. Abawajy and S. Ghanavati, “An Alternative Node Deployment Scheme for WSNs,” Sensors Journal, IEEE (Volume:15 , Issue: 2 ), pp. 667 – 675, 2015.

[4] Guan Xin et al, “EEHCA: An Energy-Efficient Hierarchical Clustering Algorithm for Wireless Sensor Networks,” vol. 8, no. 2, 2008.

[5] S. Ghiasi et al, “Optimal Energy Aware Clustering in Sensor Networks,” MDPI Sensors, vol. 2, no. 7, p. 258–269, 2002.

[6] W. R. Heinzelman, A. Chandrakasan and H. Balakrishnan, “Energy-efficient communication protocol for wireless microsensor networks,” in Proceedings of the 33rd Annual Hawaii International Conference on System Sciences, 2000. , Hawaii , 2000.

[7] M. Aslam et al, “Survey of Extended LEACH-Based Clustering Routing Protocols for Wireless Sensor Networks,” arXiv preprint arXiv:1207.2609, vol. v1, 2012.

[8] S. D. Muruganathan, D. C. F. Ma and R. I. Bh, “A centralized energy-efficient routing protocol for wireless sensor networks,” Communications Magazine, IEEE, vol. 43, no. 13, pp. S8-S13, March 2005.

[9] T. Kang, J. Yun, H. Lee and I. Lee, “A Clustering Method for Energy Efficient Routing in Wireless Sensor Networks,” in International Conference on Electronics, Hardware, Wireless and Optical Communications EHAC’07 Proceedings of the 6th WSEAS, Corfu Island, Greece, 2007.

[10] M.Bani Yassein et al, “Improvement on LEACH Protocol of Wireless Sensor Network (VLEACH),” in Journal of Digital Content Technology and its Applications, 2009.

[11] M. Tong and M. Tang, “LEACH-B: An Improved LEACH Protocol for Wireless Sensor Network,” in 6th International Conference on wireless Communications Networking and Mobile Computing (WiCOM), Chengdu, 2010.

[12] C. Y. Wen and Y. C. Chen, “Dynamic Hierarchical Sleep Scheduling for Wireless Ad-Hoc Sensor Networks,” vol. 9, no. 5, 2009.

[13] A.B.M. Alim Al Islam et al, “Finding the Optimal Percentage of Cluster Heads from a New and Complete Mathematical Model on LEACH,” Scientific Research, vol. 2, no. 2, pp. 129-140, 2010.

[14] V. S. Krishna Gopal Vijayvargiya, “An Amend Implementation on LEACH protocol based on Energy Hierarchy,” International Journal of Current Engineering and Technology, vol. 2, no. 4, pp. 427-431, 2012.

[15] W.R. Heinzelman et al, “Energy-efficient communication protocol for wireless microsensor networks,” in System Sciences, 2000. Proceedings of the 33rd Annual Hawaii International Conference on, 2000..
