Modeling, Implementation And Performance Analysis Of Mobility Load Balancing For LTE Downlink Data Transmission
Mohamed Escheikh1 Hana Jouini1 and Kamel Barkaoui2
1University of Tunis El Manar, Enit, Sys’Com Box 37, LE BELVEDERE 1002 Tunis, Tunisia
2Conservatoire national des arts et métiers Box 2, conté 75003
We propose in this paper a simulation implementation of Self-Organizing Networks (SON) optimization related to mobility load balancing (MLB) for LTE systems using ns-3 . The implementation is achieved toward two MLB algorithms dynamically adjusting handover (HO) parameters based on the Reference Signal Received Power (RSRP) measurements. Such adjustments are done with respect to loads of both an overloaded cell and its cells’ neighbours having enough available resources enabling to achieve load balancing. Numerical investigations through selected key performance indicators (KPIs) of the proposed MLB algorithms when compared with another HO algorithm (already implemented in ns-3) based on A3 event  highlight the significant MLB gains provided in terms global network throughput, packet loss rate and the number of successful HO without incurring significant overhead.
LTE networks, Mobility load balancing, Handover, Simulatio
In recent years the demand for traffic in cellular radio networks has evolved vertiginously. In order to cope with this demand, the organization of international standardization 3rd Generation Partnership Project (3GPP) had introduced the new cellular radio system Long Term Evolution (LTE). This latter adopts a simplified all-IP architecture providing spectral efficiency about two to three times higher than that of the 3GPP Release 6 . LTE will also offer up to 100 Mb/s of throughput on the downlink (DL) with a spectral bandwidth of up to 20 MHz. LTE systems use multiplexing and encoding data technique namely Orthogonal Frequency Division Multiple Access (OFDMA) in the radio interface downlink (DL) transmission and the Single Carrier Frequency Division Multiplexing Access (SC-FDMA) in the uplink (UL) transmission.
For LTE networks, the main challenges are to meet users’ quality of service (QoS) requirements especially for real-time traffic in terms of throughput, end to end delay. These challenges concern also the satisfaction of cellular radio operator’s requirements in terms of radio resource management (RRM), rationalization of operational expenses and optimization of the overall network efficiency. To address these challenges, SON technologies have been introduced in LTE networks from the 3GPP Release 9 specifications . These technologies are designed to achieve a high level of operational performance by automating a number of tasks such as configuration, optimization and healing (repair). This enables also to reduce capital expenditure (CAPEX) and operational expenditure (OPEX) to deal with the inter-operator competition.
We focus in this article on a key component of SON technologies namely self-optimization and especially load balancing in mobile radio LTE networks. In the literature several research studies have been proposed for investigating the load balancing problem between LTE cells and can be classified in two categories:
In  authors implemented two elementary procedures (EPs) related to load management (LM) function of the X2-application protocol (X2AP) as specified in TS 136.423 .in order to implement a MLB based adaptive handover (HO) algorithm.
The remainder of this paper is organized as follows: in section 2 we will briefly recall architectures and SON features in LTE networks. We detail in this same section the load balancing principle by dynamic HO adjustment. In Section 3 we describe the proposed MLB algorithms. Section 4 is devoted to simulation results and numerical investigation. The last section concludes thus paper.
2. Son Architectures And Functionalities For LTE Networks
2.1. SON Architectures
There are three types of SON architectures in cellular radio networks  trying, each one, to find a compromise between stability, scalability and agility. Before detailing the principle these architecture,s we propose to recall the definitions for stability, scalability and agility :
2.1.1. Centralized SON (C-SON) Architecture
In the C-SON architecture (Figure 1.a) algorithms are executed at the network management system (NMS) level. The main advantage of this approach is that the SON algorithms can gather information from all entities of the network into consideration. This means that it is possible to jointly optimize the parameters of all centralized SON functions. The purpose behind is to provide an overall optimization enabling further stability. Stability is especially useful for networks having characteristics which vary relatively slowly. The C-SON architecture also enables to facilitate coordination between the SON functions. In contrast, C-SON disadvantages are particularly manifested by slow response times, high backbone traffic and a singular point of failure. Notice also that the long duration of response time and the lack of agility can significantly affect the network adaptation rate and cause instability problems.
2.1.2. Distributed SON (D-SON) Architecture
Algorithms in D-SON architectures (Figure 1.b) are executed in the network nodes. Thus the exchange of SON messages can be directly achieved between ENodeBs LTE. Unlike the C-SON architecture, D-SON architecture provides more dynamic for SON features and adapts more quickly to changes in the network (agility). Another advantage of the D-SON solution is its scalability. However, optimizations performed in cells do not necessarily lead to global optimization which may cause undesirable instabilities.
2.1.3. Hybrid SON (H-SON) Architecture
The H-SON architecture (Figure 1.c) executes SON algorithms both in the NMS at the level of network elements (NE). This type of architecture tries to take advantage of the previous two architectures while circumventing disadvantages, which is not always easy to achieve.
Figure. 1: SON Architectures for LTE networks
2.2. SON Features
SON Features in LTE networks include self-configuration, self-diagnosis, self-healing and self-optimizing. The SON technologies are designed automatically to adjust network settings. This is achieved based on measurement reports from UEs and eNodeBs in order to ensure better network service quality and to perform better services for UEs.
2.2.1. SON Auto-optimization
Self-optimization is a collection of algorithms aiming to maintain network quality and network performance with minimal human intervention. The self-optimization functions automatically and dynamically trigger, if necessary, optimization actions on the affected NEs. Among the most important functions of self-optimization we distinguished MLB optimization, mobility robustness optimization (MRO). MRO is used in conjunction with MLB to ensure more stability and to mitigate the ping pong phenomenon. Adjusting the settings of MLB and the MRO may be subject to conflicting objectives often harmonized through finding convenient compromise. In this article we focus on MLB.
2.3. MLB In LTE Networks Based On Dynamic Adjustment Of HO Parameters
Before detailing the principle of MLB by dynamically adjusting HO parameters, we present the inter-cellular transfer (HO) principle in LTE networks.
2.3.1. Handover in LTE Networks
The handover is a major key procedure of mobile cellular radio networks to ensure that users are moving freely across the network while maintaining continuous connectivity and access to services . Given that the handover success rate is a key indicator of network performance, it is essential to achieve a quick and efficient HO process. The optimization of the handover aims to dynamically adjust its setting parameters (offset, hysteresis …). In LTE, several triggering events may be considered . In this article, we focused on the A3 event. This latter requires that the difference between the received signal level of the current cell and that of the neighbouring cell exceeds a given threshold.
2.3.2. MLB In LTE Networks
In LTE networks, the traffic demand of some cells may be much higher than the acceptable level, while other neighbouring cells (of the overloaded cells) may have enough available resources to serve more users. This situation causes, in absence of cooperation, load unbalance between cells.
In order to trigger load balancing between two cells (an overloaded source cell A (hot-spot) and an under-loaded neighbour destination cell B) (Figure 2), two conditions must be satisfied:
Once the above conditions are met, the cell A chooses, in a first step, a selected number of attached users candidate to achieve HO to cell B. In a next step users adjust their own parameters (handover, reselection, etc.) corresponding to the cell B. In the next section, we describe the principle of load balancing algorithms in mobile networks (MLB) we proposed and implemented in ns-3.
3. Proposed Mlb Algorithms
The two proposed MLB algorithms (Alg_MLB1 and Alg_MLB2) are based on dynamic adaptation of HO parameters (hysteresis values) (Figure 2). The HO due to MLB is the transition of the current overloaded cell (cell A) to one or more neighbouring cell(s) willing to cooperate. The performance of these two algorithms will be compared to a standard HO algorithm without MLB (Alg_without_MLB). Note that the above algorithms (with and without MLB) are based on measuring the RSRP and use the A3 event of the 3GPP specification  for triggering the HO. The origin of the HO in LTE networks implementing the MLB can be of two different types. The first type is the realization of the A3 event, while the second refers to a load mismatch between two neighbouring cells. Before detailing the principle of the two MLB algorithms, we will in what follows set some notations and preliminary thresholds that will be commonly used in the description of both algorithms Alg_MLB1 and Alg_MLB2.
Fig. 2: MLB with dynamic HO adjustment
The current cell is assumed overloaded if the following condition is satisfied:
If condition 1 is verified, the MLB procedure is triggered. The overloaded cell dynamically configures the new HO hysteresis thresholds for different neighbouring cells with respect to their relative amount of available resources. These new (updated) thresholds are calculated from the following equation :
Notice that ThHys(0) is the HO hysteresis threshold of the current cell before triggering MLB and ThHys(0, i) the HO hysteresis threshold of the current cell (with index 0) toward the neighbouring cell with index i.

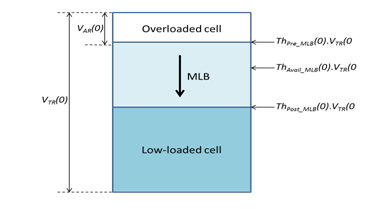

Fig. 3: Triggering condition of the MLB algorithms in the current cell
As soon as MLB condition is satisfied (i.e. condition 1), the current cell updates HO hysteresis threshold ThHys(0,i) and sends then the active UEs (attached to current cell) via a control message measurement. In turn, the UEs update the new hysteresis thresholds as long as the condition on the A3 event is checked. Moreover, once the condition 2 is verified, the MLB is disabled.
From the above description, we notice that the MLB is effective unless the two conditions (condition 1 for the current cell and condition 3 for the neighbouring cell) are verified:
Thus, one can distinguish an alternation between periods with and without MLB depending on load variations of both the current cell and the neighbouring cell(s). Note that as soon as the deactivation condition of the MLB process (condition 2) holds, the current cell needs to recover the original hysteresis value by sending another measurement control message to the UEs. Figure 4 depicts the principle of the proposed MLB algorithms.
Fig. 4: Principle of the proposed MLB algorithms implemented in ns-3
4. SIMULATION ANALYSIS AND NUMERICAL RESULTS
To highlight the performance of the proposed MLB algorithms (i.e. Alg_MLB1 and Alg_MLB2), we compare their performances with those of a standard algorithm without MLB (Alg_without_MLB) for different UEs densities (i.e. for different global loads). Alg_without_MLB only implements the A3 event of the 3GPP specification and without accounting of load balancing. Such algorithm is used in our case study as a standard algorithm. Alg_MLB1 and Alg_MLB2, associated with the A3 event, aim to ensure better distribution of the overall LTE network load and to reduce packet losses.
4.1. Simulation Model
We design a simulation model composed of three equi-spaced eNodeBs with distance of 500m. Each eNodeB includes three sectors. MLB algorithms are implemented in a distributed manner (D-SON) in each sector. These algorithms dynamically adjust the HO parameters (hysteresis and time to trigger (TTT)) as a function of the network load. TTT is a timer used in the 3GPP specification to provide greater robustness and to better mitigate the ping-pong phenomenon. In the investigated scenarios, we have focused on the dynamic adjustment of the hysteresis in the range between 0 db and 3 db in steps of 0.5 dB for fixed values of TTT. Table 1 summarizes the correspondence between the modulation and coding schemes (MCS) (used in our simulation model) and the total capacity of a cell in Mbps for a bandwidth of 5MHz (25RBs).
Table 1: Correspondence between MCS and the total cell
capacity in Mbps for bandwidth of 5Mhz (25RBs)
Table 2 recapitulates the main simulation parameters used in our case study.
TABLE 2: Simulation parameters
In the next section, we present numerical results related to simulation investigations of the proposed scenario.
4.2. Numerical Results
Figure 5 shows that the global network throughput provided by Alg_MLB1 and Alg_MLB2 is greater than that provided by Alg_without_MLB for different UEs densities (37, 56, 75 UEs). This may be justified by the MLB principle which favours the transfer of a part of the exceeded load from the congested cell to the under-loaded neighbouring cells. Thus, the risk of traffic loss in overloaded cell will be reduced, and possibly avoided by evenly spreading this load excess toward under-loaded neighbouring cells. Another interesting observation can be done from Figure 5 is that the MLB certainly improves the global network throughput for different loads but this improvement is not very significant for high load. The explanation of such behaviour is that for such load it’s very likely that neighbouring cells (of an overloaded cell requesting their cooperation for possible load balancing) are themselves overloaded. This intuitively corresponds to a condition 2 highly probably not verified. We have also investigated the average throughput per sector in DL for different UEs loads (37, 56 and 75 UEs). It is worth noting that the MLB implementation improves the throughput of most areas (2, 4, 7, 8 and 9) (Figure 6). The results for the sectors 1, 3, 5 and 6 are mitigated. This means that one of the two proposed algorithms (Alg_MLB1 and Alg_MLB2) provides a better throughput than Alg_without_MLB.
Thanks to MLB implementation traffic in overloaded cells is substantially decreased since the

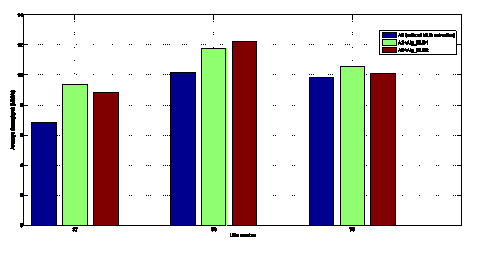

Figure. 5: Global network throughput in DL with respect to UEs density

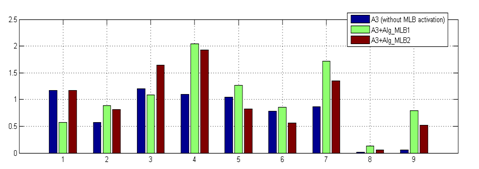

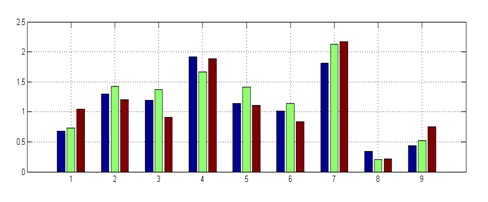

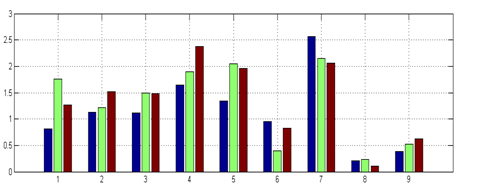

Figure. 6: Average throughput per sector in DL for different UEs densities
(Alg_MLB1 Alg_MLB2 and Alg_without_MLB)
exceeded load is transferred to the less loaded neighbouring cell(s). This results in a significant reduction of the packet loss ratio compared to Alg_without_MLB (Figure 7). From Figure 7, the loss ratio is an increasing function of the network load. With MLB, losses may occur in a cell if it is enough overloaded and cannot find a neighbouring cell willing to cooperate. In other words, the cell loss ratio of the current cell closely depends on both its own load and the load of the neighbouring cell(s). Since MLB aims to reduce the loss ratio through an evenly load distribution between cells, we observe a significant reduction of this metric for the scenarios with MLB when compared with the scenario without MLB (Figure 7). Figure 8 shows the evolution of the number of successful HO with respect the global network load (UEs density for the three investigated algorithms (Alg_MLB1, Alg_MLB2 and Alg_without_MLB).

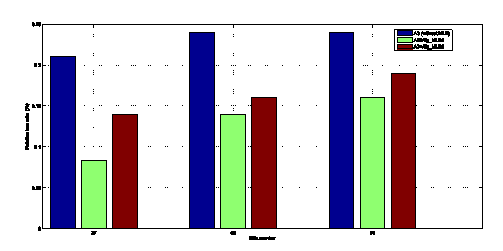

Figure. 7: Relative loss ratio vs UEs density
Figure. 8: Number of successful HO vs UEs density
The load is quantified through the number of active UEs. Notice that the number of HO is significantly important for both Alg_MLB1 and Alg_MLB2 when compared with Alg_without_MLB. This is explained by the fact that upon triggering MLB, a transfer of excess traffic in the overloaded cell to less loaded neighbouring cells is performed. This load transfer is achieved by adjusting the hysteresis value which favours handovers. We can also from Figure 8 establish a comparison between the performance of Alg_MLB1 and Alg_MLB2. Note especially for relatively low loads that the number of handovers in the LTE network for the Alg_MLB1 is considerably lower than for Alg_MLB2. As soon as the amount of available resources is beyond the threshold ThAvailMLB . This may be explained by the following arguments:
The comparative study investigated above shows that Alg_MLB1 algorithm provides indeed lower loss ratio when compared with Alg_MLB2 however it may cause in return an increase of HO frequency.
In this article we implemented through ns-3 new load balancing algorithms at ENodeBs level for DL data transmission in LTE networks. We evaluated next the performance of these algorithms through appropriate scenarios to MLB context. Performance evaluation focused specifically on the investigation of the MLB impact on the global network throughput, the average throughput per sector and the loss ratio and the number of successful HO, for different UEs densities. The obtained results highlight comparative performance study between the simulation results with and without MLB. We show through these investigations the advantage of each MLB algorithm in finding convenient compromise in terms of throughput, loss ratio and number of successful HO. As perspectives, we plan to conduct more exhaustive simulations on joint-optimization of MLB and MRO. This leads to finding, for a given hysteresis value of a given cells’ loads, the optimal TTT value. We also plan in future to model MLB using the Markov decision process. This will allow to find the optimal values of various activation thresholds, acceptance and deactivation of MLB according to the load algorithm. Our main contribution in this paper is the implementation of MLB algorithms on ns-3. Note that the latest version on which we worked does not implement the MLB in the LTE module of ns-3.
 Network Simulator 3, url : https ://www.nsnam.org/, last viewed : Mai 2015, 2011- 2015.
 Evolved Universal Terrestrial Radio Access (E-UTRA); Radio Resource Control (RRC);Protocol specification, 3GPP TS 36.331 version 8.6.0 Release 8, France, European Telecommunications Standards Institute, 2009 RTS/TSGR-0236331v860.
 3GPP Evolved Universal Terrestrial Radio Access (EUTRA) and Evolved Universal Terrestrial Radio Access Network (E-UTRAN; Overall Description, 3GPP TS 36.300 version 10.4.0 Release 10, France, European Telecommunications Standards Institute, 2011 RTR/TSGR-0336902v931.
 LTE; Evolved Universal Terrestrial Radio Access Network (E-UTRAN) ; Self-configuring and self-optimizing network (SON) use cases and solutions, 3GPP TR 36.902 version 9.3.1 Release 9, France, European Telecommunications Standards Institute, 2011 RTS/TSGR-0236331v860.
 Y. T. Wang and J. P. Sheu, Adaptive channel borrowing for quality of service in wireless cellular networks, International Journal of Communication Systems Vol. 19, Issue 2, Pages 205-224, 2006.
 Miaona Huang, Suili Feng, and Jun Chen, A Practical Approach for Load Balancing in LTE Networks, Journal of Communications Vol. 9, No. 6, pp. 490-497 June 2014.
 Das S, Viswanathan H, Rittenhouse G, Dynamic load balancing through coordinated scheduling in packet data systems, In Proc. the INFOCOM. Twenty-second annual joint conferences of the IEEE computer and communications. IEEE societies, Vol.1, pp. 786-796, Mar. 30-Apr. 3, 2003.
 Hanly S. V., An algorithm for combined cell-site selection and power control to maximize cellular spread spectrum capacity, IEEE Journal on Selected Areas in Communication, Vol. 13, no 7, Pages 1332-1340, 1995.
 Wen-Yu Li, Xiang Zhang, Shu-Cong JIA, et al, A novel dynamic adjusting algorithm for load balancing and handover co-optimization in LTE SON, Journal of Computer Science and Technology, Vol. 28, Issue3, Pages 437-444, may 2013
 M. Dottling and I. Viering, Challenges in Mobile Network Operation: Towards Self-Optimizing Networks, IEEE Int’l. Conf. Acoustics, Speech, and Sig. Processing, pp. 3609-3612, 2009.
 Raymond Kwan, Rob Arnott, Robert Paterson, Riccardo Trivisonno, Mitsuhiro Kubota, On Mobility Load Balancing for LTE Systems, 72nd IEEE Vehicular Technology Conference-Fall (VTC ), September 2010.
 Andreas Lobinger, Szymon Stafanski, Thomas Jansen, and Irina Balan, Load Balancing in Downlink LTE Self-Optimizing Network, IEEE Vehicular Technology Conference (VTC), 2010.
 H. Jouini, Mohamed Escheikh Kamel Barkaoui and Tahar Ezzedine, Mobility Load Balancing Based Adaptive Handover in downlink LTE Self-organizing networks International Journal of Wireless & Mobile Networks (IJWMN) Vol. 8, No. 4, pp. 89-105. August 2016. DOI: 10.5121/ijwmn.2016.8406 89 http://airccse.org/journal/jwmn_current16.html
 European Telecommunications Standards Institute. LTE; Evolved universal terrestrial radio access network (E-UTRAN); X2 application protocol (X2AP), 2013.
 Østerbø, Olav, and Ole Grøndalen Andreas Lobinger, Szymon Stafanski, Thomas Jansen, and Irina Balan, Benefits of Self-Organizing Networks (SON) for mobile operators, Mobile Computing, Journal of Computer Networks and Communication, VOL. 2012, pp. 1-15, 2012.
 Osianoh Glenn Aliu et al. “A survey of self-organisation in future cellular networks”.In: IEEE Communications Surveys & Tutorials 15.1, pp. 336–361, 2013
 T. Jansen, I. Balan, I. Moerman, T.Kurner, Handover parameter optimization in LTE self-organizing networks, IEEE 72nd Vehicular Technology Conference-Fall (VTC 2010-Fall), pp. 1-5, September 2010.
 3rd Generation Partnership Project ; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA) Radio Resource Control (RRC) ; Protocol specification, 3GPP TS 36.331 Version 8.5.0 Release 8, France, European Telecommunications Standards Institute, 2009.
 Qi-Ping Yang, Jae-Woo Kim, and Tae-Hyong Kim. Mobility prediction and load balancing based adaptive handovers for LTE systems. International Journal on Computer Science and Engineering, 4(4), 665-674, 2012.
