CROSS LAYER DESIGN FOR POWER CONTROL AND LINK AVAILABILITY IN MOBILE ADHOC NETWORKS

Anita Yadav1, Y. N. Singh2, SMIEEE and Raghuraj Singh1

1Computer Science and Engineering Department, Harcourt Butler Technological
Institute, Kanpur, India
2Electrical Engineering Department, Indian Institute of Technology, Kanpur, India

ABSTRACT


Frequent changes in network topology due to mobility and limited battery power of the mobile devices are the key challenges in the adhoc networks. The depletion of power source may cause early unavailability of nodes and thus links in the network. The mobility of nodes causes frequent routes breaks and adversely affects the required performance of the applications. We propose a cross layer design for the dynamic power control protocol and link prediction (DPCPLP) that provides a combined solution for power conservation as well as link availability. This combines the effect of optimum transmit power and received signal strength based link availability estimation with AODV routing protocol using cross layer approach. This method proposes to use optimum transmit power for transmitting the packets to a neighboring node to increase th e battery life of adhoc nodes and received signal strength based link prediction to increase the availability of the links. In this paper, the transmit power and received signal strength of the packets are cross-layer interaction parameters to provide the combined solution for power conservation and reliable route formation with increased availability of links and thus the routes amongst sources and destinations. Further, this increases network and nodes’ lifetime and capacity. It improves throughput and packet delivery ratio by spatial reuse, prior prediction of link breaks and initiating the route repair. It also reduces end-to-end delay and power consumption by use of optimum transmit power. Through simulations, we have shown that our proposed protocol shows better performance.

KEYWORDS


Cross layer, MANET, routing, power control, signal strength, medium access control, link prediction, mobility, DPCPLP

1.INTRODUCTION


Mobile Adhoc network is a collection of mobile devices that are self organizing and communicate with each other without using centralized infrastructure. In such an environment, nodes also act as router and forward packets to the next hop to deliver it to the final destination through multiple hops.

In order to be mobile, untethered connectivity using wireless interfaces need to be present with every node in the network. Usually mobile nodes will depend on battery power for their operations. It is desirable to minimize the power consumption in these nodes. Further, this problem is important as once the battery of the node is exhausted, it cannot transmit as well as receive any data. It dies resulting in impact on network connectivity since in adhoc networks, even intermediate nodes are important to maintain connectivity. As soon as one of the intermediate nodes dies, the whole link has to be formed again. This leads to large amount of delay, waste of scarce node resources like battery power thereby hampering the throughput of the whole system. Further, mobility presents the challenges in the form of continuously variable topology and thus requiring a complex and energy efficient routing mechanisms.

Wireless networks will be used mostly by personal communication devices which people can carry with them. These small, always connected personal devices will lead to new applications. For running most of these applications on resource limited devices, one needs efficient networking stack in the mobile devices. Conventionally to simplify the complex task of handling network connectivity, layered architecture had been used. To further improve the performance, the concept of layered software components is now being broken by also allowing layers to access data structures from non-immediate layers. This approach is popularly known as cross layer optimization.

Quality of Service in MANETs will imply guaranteed delivery of packets corresponding to the specific flows at higher priority so as to satisfy loss and delay performance requirements. In MANETs, the nodes function using remaining battery power, availability of which can vary widely across the nodes. The nodes may be mobile, thus the links in the optimal path from source to destination may break either due to mobility or less battery power. Thus providing QoS guarantees with highly unreliable links, need fast or even proactive routing recovery, alongwith transport and application layer optimization, which may start even before the link failure finally happens. Thus the measurements at data link layer and MAC layer need to be used at the network, transport and application layers to avoid wastage of transmitted power due to transmission of data frames which are of no use due to link failure.

This paper has been organized in four sections. Section 2 introduces some related work in this domain. Section 3 discusses the details of proposed power control to reduce the power consumption and a model to estimate the link availability. Section 4 includes simulation results and analysis. Section 5 summarizes the work.

2. RELATED WORK


There are various cross layer mechanism between MAC and routing which have been proposed to solve Hidden Node Problem, Exposed Node Problem, excessive Power Consumption and low Network throughput at MAC layer. The Link Prediction at network layer has been used. Combined effect of multiple optimizations, at multiple layers has been studied in order to have better performance in the network by conserving energy. In this section, we have covered various MAC, routing and cross layer optimization mechanisms.

2.1 MAC Protocols


IEEE 802.11 b STD DCF MAC Protocol [1] is the STD protocol for wireless networks. The Figure 1 shows the way the protocol works. In this four way handshake protocol, concept of virtual sensing is used. RTS and CTS contain the duration of communication. If a node who is (not the destination) receives these packets, then it sets its NAV (Network Allocation Vector) at received value and would defer it transmission for that duration. This virtual sensing mechanism enables the nodes to reserve channel and reduce the collision of packets. Unsuccessful nodes try to transmit again after a backoff period. All the packets are sent at maximum power level and hence lot of power is consumed by the nodes thereby reducing the battery life. Collisions still occur in this protocol when a node doesn’t receive RTS or CTS packet properly (collisions) and is unable to update its NAV field.

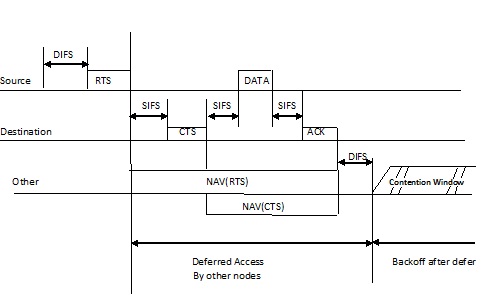

Figure 1: RTS-CTS-DATA-ACK four way handshake MAC Protocol

Adaptive Power Controlled MAC Protocol [2] was proposed to reduce power consumption and also to increase the overall throughput of the network by allowing the nodes to transmit at low enough power levels such that the desired destination can receive the packet. It estimates the transmission power based on received signal, and is given by

Where and are the transmission and received powers of the previous packet from the receiver to sender. Here assumption is that loss is same in reverse direction. In this protocol, all the packets RTS, CTS, DATA and ACK are sent at optimum power level.

2.2 Routing Protocols


Routing protocols for adhoc networks typically include mechanisms for route discovery and route maintenance. The route discovery mechanism is invoked to determine a route between a sender and a receiver. The route maintenance mechanism finds new valid routes as the substitute for the broken routes.

AODV [3] is an on-demand routing protocol. Route discovery is initiated only when a source node needs to communicate with a destination for which it does not have a route in its routing table. To discover a route to a destination, the source node broadcasts a route request message (RREQ) that contains a request ID. If a node receives a RREQ that it has already received, it drops the request. Otherwise it stores the address of the node from which it received the request so as to establish a reverse route to the source to be used later. Intermediate nodes that do not have a path to the destination re-broadcast the request. If the RREQ reaches a node that has a route to the destination, the node sends a route reply message (RREP) to the source. The reply message contains the number of hops needed to reach the destination from the node. If RREQ reaches the destination, it sends the route reply to the source over the reverse route. As the RREP is sent back to the source over the reverse path, each node stores the address of the node that had sent the reply. The routes entries then created are used for forwarding the packets from the source to the destination. AODV maintains sequence numbers for the different destinations to ensure the latest routes in the routing table.

A link breaks when a node within an active route moves out of transmission range of its upstream neighbor. When a link break occurs, the node upstream the break, invalidates all the routes using this link, in its routing table. It creates a Route Error (RERR) message, in which it lists thedestinations that have become unreachable because of the loss of the link. The RERR is sent to all the source nodes that use the link. This is the procedure of global repair. AODV also includes a local repair mechanism to locally recover from link losses. Local repair is triggered when a link break occurs between the nodes within an active route. In this repair, the node upstream the break tries to find alternative sub-paths to the destinations of packets that has been flowing through, but is unable to forward them (packets) now because of the link break.

Route failures have a significant negative impact on packet delivery. Packet dropping and higher delays are the main consequences of route failures. The time elapsed between link break detection and alternative path establishment can be high in traditional routing protocols. Therefore, to reduce downtime of flow is important.

The preemptive routing proposed by Goff [4] uses the received transmission power is used to estimate when the link is expected to break. It initiates fresh route discovery and builds an alternative route before the link failure. The preemption ratio is used for defining preemption zone around the signal strength threshold. This proactive route selection and maintenance mechanism was applied to DSR and AODV by Goff. In wireless network, normally transmit power is adjusted so that receiver gets just required power level for signal detection. Power control to adjust the transmit power was not included in this work.

There are various routing protocols proposed to find the routes that last longer i. e. stable links to reduce the route breakage and consumption of resources. In LAER [5] joint metric of link stability and energy drain rate has been proposed to be used in route discovery. This results in reduced control overhead and balanced traffic load.

2.3 Cross Layer Protocols


Due to dynamic, limited resources and unpredictable channel conditions, the traditional way of optimization at different layers is not enough in wireless adhoc networks. In order to obtain best results, it is necessary to perform optimizations using the information available across multiple layers. The concept of cross layer design, the layers exchange the information in order to improve the overall network performance.

Physical and Network cross layer interactions: congestion control.The impact of physical layer on five different routing protocols has been studied in [6]. The performance obtained when physical layer properties such as path loss and shadowing are considered are much better than the scenario is used. The paper concluded that the hop-count may not be an optimal metrics for the routing process and the routing metrics for MANETs should take into account the current state of the channel as well as the quality of the link.

Physical and Transport cross layer interactions: Power control can often influence the transmission rate of mobile nodes. The possibility to enhance multi-hop communication by balancing power control in the physical layer and congestion control in transport layer has been explored in [7]. The distributive power control algorithm (JOCP) couples with original TCP protocol to improve end-to-end throughput and energy efficiency in the network. The key idea of JOCP is that during congestion periods nodes will try to transmit packets faster at the bottleneck links by updating their transmission power. More specifically, at each time slot the transmission power at a transmitter i will increase proportionally to its packet queuing delay and will decrease proportionally to its current power level Pi. This analytical model proves the convergence of this coupled system to the global optimum of joint power and congestion control, for both synchronous and asynchronous implementations.

MAC and Transport cross layer interactions: The inability of TCP to distinguish between packet loss caused by congestion and packet loss by other factors (mobility of nodes, wireless link fluctuations) is the main cause of poor performance of TCP in MANETs. While several proposals in literature attempt to solve the problem by modifying the MAC or the TCP in isolation, some solutions explore joint strategies at MAC and TCP layers. The problem of performance degradation of transport layer protocol due to congestion has been presented in [8]. The proposed cross-layer congestion control scheme (C3TCP) gives higher performance by gathering capacity information such as bandwidth and delay at the link layer. This method requires the introduction of an additional module within the protocol stack of the mobile node, which is able to adjust the outgoing data stream based on capacity measurements. Moreover, a proposal to provide optional field support to existing IEEE 802.11 protocol has also been suggested, in order to support the presented congestion control.

Joint optimal design for cross layer congestion control, routing and scheduling for adhoc wireless networks has been proposed in [9]. The rate constraint and scheduling constraint are used based on the flow variables and is formulated resource allocation in networks with fixed wireless channel. The resource allocation problem has been decomposed into three sub problems: congestion control, routing and scheduling.

3. CROSS LAYER POWER CONTROL AND LINK AVAILABILITY PREDICTION


Cross layer interactions as shown in figure 2 are between physical and network layers. The received signal strength is used by network layer to initiate the process to find the new route.

Figure 2: Cross layer interactions at node

Cross layer based approach for link availability prediction (DPCPLP) increases network lifetime and capacity by combining the effect of optimum transmit power in transmitting RTS, CTS, DATA and ACK packets and estimation of link availability time and further, formation of the path prior to the link break to support the Quality of Service (QoS) requirements of applications.

1) Power control: At the MAC layer RTS, CTS, DATA and ACK are sent at optimum transmit power level just adequate to sustain a good quality communication. The estimation is done dynamically based on received signal strength of RTS, CTS, DATA and ACK packets between links and accordingly, the sender can adjust it’s transmit power.

2) Link availability: Using received signal strength of packets from physical layer, link availability time can be estimated and the prediction of link break warns the upstream nodes and sources before the path breaks and either upstream nodes or sources can rediscover a new path in advance for forwarding the packets.

3.1 Power control


To maximize the battery life of mobile nodes, we have proposed the Dynamic Power Control Protocol (DPCP) part at MAC layer. This protocol is based on Adaptive Power Control MAC protocol in such a way that the overall transmitted power is less and hence battery consumption is less.

At MAC layer, RTS, CTS, DATA and ACK are sent at the optimum power. The header fields of the packets RTS, CTS, ATA and ACK contain the transmission power level which can be used to compute optimum power to send a packet. The IEEE 802.11std is reliable MAC protocol. When a sending node transmits RTS, CTS, DATA and ACK packets, every exposed node receives the packet at received signal strength. The received signal strength, at receiver using two ray propagation model is:

Where is the wavelength of carrier, is the distance between sender and receiver. and are the gain of transmitting and receiving omni directional antennas respectively. The power is the transmit power of the packet. The header fields of the packets RTS, CTS, DATA and ACK are modified to incorporate the transmission power level of the respective packets. Thus when a node receives such packet, it gets the transmission power level , the received power is calculated by the physical layer and the value is send to MAC layer. Every node knows the minimum threshold power at which the packet can be decoded properly. Thus we get the desired minimum transmission power required so that packet is properly decoded at the receiver.

However, we do not have information about distance [2] between two nodes. We can find out optimum transmission power by the equation

Where, Popt is the optimum transmission power and is discrete level greater than Ptmin,Pz and are the transmission and received powers of the previous packet from that receiver to sender, respectively. C is a constant equal to 1.05 to compensate for the interference and noise. Each node will maintain table which will contain the optimum transmit power level required so that the destination node will be able to decode the packet successfully and can initiate the process for link successes. The table will have two columns, one will have MAC address of the destination node and the other will be the power level. This table will be known as the OPTIMUM POWER TABLE. This table is small as it contains entries only of the neighbors. The Optimum Power Entry format is shown in figure 3.

In this cross layer design, the receiving node limits the optimum transmit power to a level just adequate to sustain good quality communication and start the process for prediction of the link break. In this approach, we have used three threshold received signal strengths. They are threshold received signal strengths PthresholdPcritical and Pdecode respectively. At Pthreshold ,the node enters into link prediction process. At , the node enters into critical state, warns the upstream node about link break and forms alternate path prior to link break. The Pdecode is minimum power allowed for the destination node to decode the packet.

In this design, the received signal strength  information obtained and calculated at the physical layer and then, is passed to the MAC layer for data transmission. The optimum transmit power is computed using equation (4). This Povt is stored at each node in the optimum power table against the destination. In order to get the optimum transmit power in the cross layer design, the header fields of packets RTS, CTS, DATA and ACK are modified to incorporate the transmit power level of the respective packets. Thus, when a node receives such packet, it gets the transmission power level Pt, the received power Pr is accessed from the physical layer and the calculated transmit power is pass to the MAC layer. This clearly indicates interaction between physical and MAC layers.
The node sending RTS inserts transmit power as an extra field in it so that the receiving node can tune to this power while sending its CTS packet. Subsequently by using the optimum transmit power level, the DATA packets from sender and ACK packet from receiver can also be transmitted.

3.2 Link availability


The link availability time can be estimated based on received signal strengths of packets from physical layer and the prediction of link break warns the sources and it can rediscover a new path before the path breaks [10].

The received signal strength in cross layer design is accessed at physical layer and can be used by upper layers. The measured value of received signal strength is transferred to upper layer alongwith the signal. This is used in calculations at common places and further passed to the routing layer alongwith routing control packets. This value is stored in the routing and neighbor tables and used in some of the decision making process related to selection of links forming the path. As an interlayer interaction parameter, the received signal strength, which is accessed at physical layer, is being used by upper layers. The calculation is accomplished by estimating the time at which received signal strength of the data packets will fall below a threshold power. The received power level below the decode power indicates that the two nodes are moving away from each other’s radio transmission range and leading to link break.

In this approach, three consecutive measurements of signal strength of packets received from the predecessor node are used to predict the link failure using the Newton divided difference interpolation method. The Newton interpolation polynomial has the following generalized expression.

The received signal strengths of the three latest data packets and their time of occurrence are maintained by each receiver for each transmitter from which it is receiving. Using three received data packets’ signal power strengths as P1,P2,P3 ,and the time when packets arrived as t1,t2,t3respectively and Pp instants as the decode signal strength (Pdecode ) at the time tp , one can determinetp using equation (7). We assume that at the predicted time tp , when received power level reduces to or less than decode power, the link will break. The expected signal strength of the packets received can be computed as below, where Δ and  Δ 2are first and second divided differences respectively.

At time , the node enters into critical state and node should find alternate route. A link failure warning is sent towards the upstream nodes and sources, whose flows are using this link. Source nodes can invoke the route discovery mechanism to setup restoration paths. The threshold power is the received power at the time , sufficient for sending warning message to the upstream node and sources further to discover an alternate path by setting up new path.

3.3 Proposed protocol algorithm


B. Receiver:
1. For each neighbour

1. At source:
2. {
3. New path discover message received,
4. Discover new path,
5. Redirect traffic through new path.
6. }

4.SIMULATION RESULTS AND ANALYSIS

We simulated AODV routing protocol, AODV with link prediction (AODVLP) and dynamic power control protocol with link prediction (DPCPLP) using ns-2 [11]. In the simulations, we have varied three parameters – node velocity, network load (rate of generation of packets) and number of nodes in a given area. The detailed simulation parameters are mentioned in table 1. Numerous simulations were run with same parameters and average of observed values was taken to reduce the estimation error We simulated AODV routing protocol, AODV with link prediction (AODVLP) and dynamic power control protocol with link prediction (DPCPLP) using ns-2 [11]. In the simulations, we have varied three parameters – node velocity, network load (rate of generation of packets) and number of nodes in a given area. The detailed simulation parameters are mentioned in table 1. Numerous simulations were run with same parameters and average of observed values was taken to reduce the estimation error.

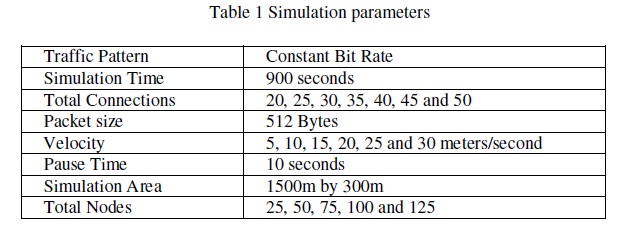

Two-ray radio propagation model is used. We have used seven transmit power levels. Three parameters viz. node velocity, network load and node density were varied in the simulations. Network load is the rate of generation of packets in the network.

The performance of protocols have been evaluated in terms of average interruption time, overhead packets, energy consumption, throughput, packet delivery ratio and end-to-end delay as function of node mobility, packets generation rate and node density. Constant bit rate (CBR)sources are assumed in the simulation.

Average interruption time is the time during which ongoing communications are interrupted. Routing overhead is the number of routing overhead packets that are generated in the network to transfer the data packets.

Energy consumed (in Joules) per 1 kilobyte data delivered is calculated as the total amount of transmitting and receiving energy consumption over all flows divided by the total data delivered by all the flows. The energy consumption of all the packets RTS, CTS, DATA and ACK are considered.

Throughput is the number of kilobytes transferred successfully by the sender to the receiver successfully.

Packet delivery ratio is the ratio of the data packets delivered to the destination to those generated by the CBR sources. The higher the value better is the performance.

Average end-to-end delay of data packets includes all possible delays caused by buffering during route discovery, queuing at interface queue, retransmission delays at MAC layer, propagation and transfer time.

The simulation results are obtained for AODV, AODVLP and DPCPLP. The velocity is varied in discrete steps as 5, 10, 15, 20, 25 and 30 meters/second for a fixed network size of 50 nodes and pause time of 10 seconds in figures 4 and 5. Figure 4 shows the comparison of the average interruption time in DPCPLP, AODVLP and AODV schemes. It shows that DPCPLP shows least average interruption time as compared to AODVLP and AODV. This is because DPCPLP uses smaller transmission range thus concurrent transmission of packets as well as uses backup path in case of route failures for restoration of path thus results in lowest interruption time as compared to AODVLP and AODV. However, AODV, AODVLP and DPCPLP give increasing average interruption time with increase in node velocity because faster mobility of nodes causes more route unavailability. Further, more route unavailability result in higher interruption time.

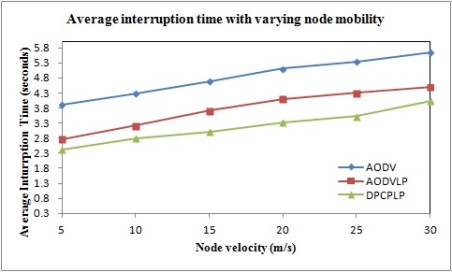

https://ijcncdotcom2.files.wordpress.com/2015/06/p10-12.jpg?w=452&h=280Figure 4 Average interruption time vs node velocity
Figure 5 Routing overhead vs node velocity

Figure 5 shows that the overhead packets are least in DPCPLP as compared to AODVLP and AODV, because more packets are transferred concurrently due to smaller carrier sensing range in addition to availability of alternate routes in case of route failures caused due to higher node mobility. However, in DPCPLP, AODVLP and AODV schemes, the routing overhead packets increase with increase in node velocity. This happens because increase in node velocity increases more route unavailability for fast moving nodes. Therefore, overheads of new route discovery lead to increase in the routing overhead packets.

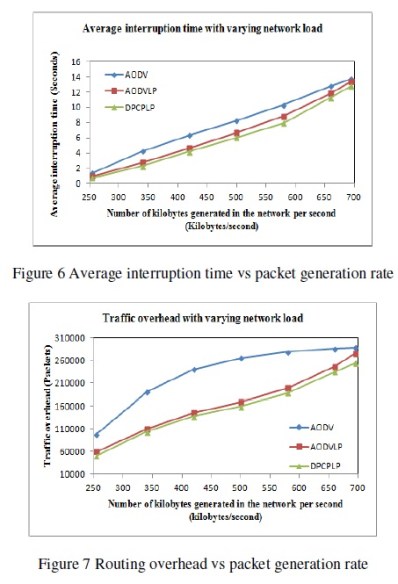

The packets generation rate is varied and other simulation variables are kept constant for a fixed network size of 50 nodes and pause time of 10 seconds and velocity as 5 meters/second in figures 6, 7, 8, 9 and 14. Figure 6 shows that in DPCPLP, the average interruption time is least as compared to AODVLP and AODV because of availability of path for increasing packets flow. The interruption time is least in DPCPLP as RTS, CTS, DATA and ACK packets are transmitted at lower power as well as availability of restoration paths in case of link failures. However, AODV, AODVLP and DPCPLP give increasing interruption time as packets generation rate increases. At low packet generation rate, less packets would be contending and at higher network loads, more packets would be contending for the transmission and thus, more interruption time. Therefore average interruption time increases with increase in packet generation rate.


In figure 7, The DPCPLP scheme generates least overhead routing packets as compared to AODVLP and AODV schemes due to concurrent transmission of the packets due to lower transmit power and prior route discovery before link failure, which avoids retransmission of the packets in the network. In AODV, AODVLP and DPCPLP, the routing overhead packets are increasing with increase in number of generated data packets because this increases contention and collisions. At very low packet generation rate, AODV, AODVLP and DPCPLP generate lower overhead packets. The result shows that by increasing the packet generation rate, the overhead packets also increases because more data packets are contending for the transmission channel thus more overhead packets are generated for retransmission of the packets. Figure 8 shows the comparison of the throughput of AODV, AODVLP and DPCPLP. It shows that DPCPLP achieves highest throughput compared to AODVLP and AODV schemes. This is because DPCPLP uses smaller carrier sensing range compared to AODVLP and AODV, therefore large number of nodes can transmit concurrently. Results show that throughput is the higher in AODVLP as compared AODV. It happens because in DPCPLP and AODVLP, additionally alternative routes are discovered in advance before a link failure, and delivers a message through alternative route. However, DPCPLP gives increasing throughput as packet generation rate increases and saturates. The throughput remains constant after a particular point. As at low packet generation rate, less number of packets would be contending for the transmission and at higher network loads, due to reduction in power also reduces the number of deferring nodes, and thus, more data can be delivered per joule, therefore throughput increases linearly and saturates at higher packet generation rate.

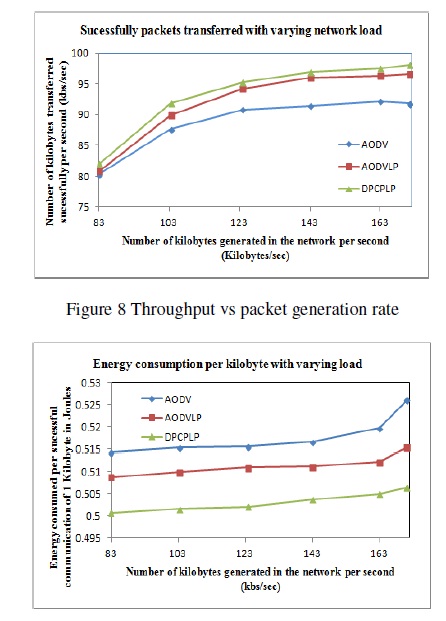

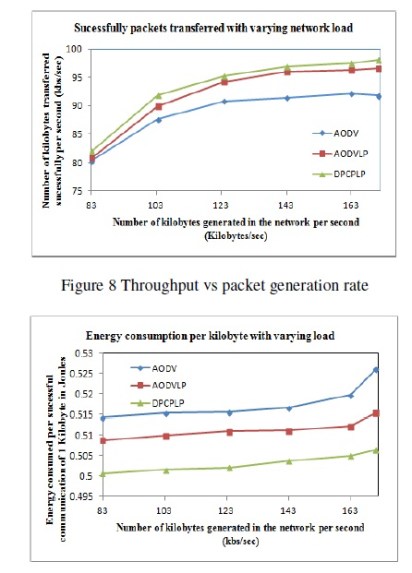

Figure 9 Average energy consumption (in Joule) per communication of
1Kbyte of data vs packet generation rate

Figure 9 shows variation of energy consumed per successful communication of 1 kilobyte of data with increase in packet generation rate. Results show that power consumption per successful communication of 1 kilobyte of data is lowest in DPCPLP as compared to AODVLP and AODV. DPCPLP is least power consuming as compared to other schemes as it uses lower power for communication of RTS, CTS, DATA and ACK packets and link successes are also observed and avoiding retransmissions of packets. However, DPCPLP, AODVLP and AODV give increasing average energy consumption as network load increases, since more packets are generated and contending in the network and thus these packets are send to the destinations therefore, more energy is consumed in successful communication of these packets.

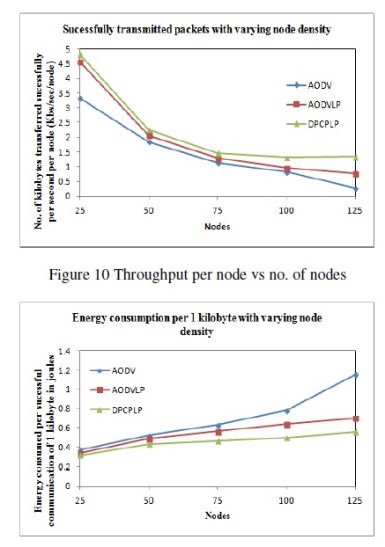

The network size is varied and other simulation variables are kept constant with pause time as 10 seconds and velocity as 5 meters/second in figures 10, 11, 12 and 13. In figure 10 shows that the throughput per node is best in DPCPLP as compared to AODVLP and AODV. This happens because in DPCPLP scheme, concurrent transmission due to use of optimum transmit power, which is lesser as well as proactive route discovery in case route failures and thus more data is
delivered. The throughput per node is decreasing in all the schemes with increase in number of nodes because this increases contention and collisions. At very low density, the AODV, AODVLP and DPCPLP give higher throughput because contention and collisions are less. At high density, all the three schemes give lesser throughput as contention and collisions are more due to more neighboring nodes in the vicinity.

Figure 11 Energy consumption per communication of 1 kilobyte data vs no. of nodes

Figure 11 shows that protocol DPCPLP saves energy and therefore more packets can be transmitted in lesser power. The energy consumption increases in case of all the schemes as the node density increases, contention and collisions also increase. But the energy consumption of the DPCPLP is least among all the schemes throughout the density variation thereby making it better protocol.

Figure 12 shows variation of packet delivery ratio with increasing node density. Results show that packet delivery ratio is best DPCPLP as compared to AODVLP and AODV. It happens because in DPCPLP, concurrent transmission takes place due to spatial reuse of the channel resulting from lower transmit power of the packets, in addition to DPCPLP and AODVLP schemes discover alternative routes before the route failures, and more data is successfully delivered to the destination. However, DPCPLP, AODVLP and AODV give decreasing delivery ratio as node density increases, since it causes more contentions and collision due to more neighboring nodes in the vicinity and therefore, decreases delivery ratio by retransmitting the packets more than once.



The end-to-end delay is an average of difference between the time a data packet is originated by an application and the time the data packet is received at its destination. Figure 13 shows lowest end-to-end delay in DPCPLP as compared to AODVLP and AODV because DPCPLP takes care of concurrent transmission of packets due to lower transmit power for RTS, CTS, DATA and ACK in addition to prior route discovery in case of route failures. The end-to-end delay is lower
in AODVLP as compared to AODV due to prior route discovery in case of route failures. At low density, the delay is low in all schemes and it increases with increase in density because high node density increases contention and collisions thus result in retransmission of packets.

5.SUMMARY AND FUTURE WORK


In this paper, we have proposed cross layer design to provide a combined solution for link availability management and power conservation (DPCPLP) in adhoc networks. This extension is the addition of power control at MAC layer that minimizes power consumption, thus yields longer battery life alongwith prediction function predicts link breaks and proactively repairs it before breaks at network layer, based on received signal power of the three consecutive received
packets and threshold signal power strength. Using the MAC layer RTS, CTS, DATA and ACK packets exchange, the optimum transmit power can be dynamically estimated based on ongoing transmission and accordingly the sender and receiver can adjust its transmitting power in sending RTS, CTS, DATA and ACK packets at optimum power, which is lower than maximum transmit power to its conserve energy sources.

The performance of the proposed cross layer design for the dynamic power control protocol and link prediction (DPCPLP) performs well as compared to AODVLP and AODV, This results in better throughput, lower energy consumption thus longer battery life and better delivered network because of lowest overhead routing packets and average interruption time due to use of optimum (lower) transmit power and prior route repair processes. Therefore, it improves networks and nodes’ lifetime and capacity to support Quality-of-Service.

The suitability of proposed method for real-time traffic needs to be further studied by testing it with smaller sized CBR packets at a higher packet rates. The performance can also be evaluated for other power control and routing algorithm and considering other parameters e. g. congestion control at transport layer. Further, other power optimization and prediction methods should be evaluated.

REFERENCES


[1] IEEE 802.11 Working Group, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specification, 1997.

[2] Y. Chen, W.C. Wong, “ Adaptive Power Controlled MAC Protocol in mobile Ad hoc Networks”, Proceedings of the 8th Annual international conference on mobile computing and networking, Vol. 2, pp. 36-47, November 2002.

[3] Charles Perkins and Elizabeth Royer, “Adhoc on-demand distance vector routing”, Proceedings of the 2nd IEEE Workshop on Mobile Computing Systems and Applications, Feb 1999, pp. 90-100.

[4] T. Goff and N. Abu-Ghazaleh, D. Pathak and R. Kahvecioglu, “Preemptive Routing in Adhoc Networks”, Proc. of the Seventh Annual International Conference on Mobile Computing and Networking, Rome, Italy, July 2001, pp. 43-52.

[5] F. D. Rango, F Guerriero, “Link Stability and Energy Aware Routing Protocol in Distributed Wireless Networks”, IEEE Transactions on Parallel and Distributed systems, Vol 23, No. 4, April 2012.

[6] R. Chellappa, L. Pan, “A case for cross layer design : The impact of physical layer properties on routing protocol performance in MANETs”, Technical report, 2002.

[7] M Chiang, “To layer or not to layer: Balancing transport and physical layers in wireless multihop networks”, IEEE Journal on Selected Areas in communications, Vol 23, No 1, pp 104-116, 2005.

[8] D. Kliazovich and F. Granelli, “Cross-layer congestion control in adhoc wireless networks”, Adhoc Networks, Vol. 4, pp. 687-708, 2006.

[9] Lijun Chen, Steven H. Low, Mung Chiang and John C. Doyle, “Cross-layer congestion control, routing and scheduling design in Adhoc wireless networks”, Proceedings of 25th IEEE International Conference on Computer Communications, April 2006, pp. 1-13.

[10] Anita Yadav, Y. N. Singh and R. R. Singh, “Improving routing performance in AODV with link prediction in mobile adhoc networks”, Wireless Personal Communication, 2015, (DOI) 10.007/s11277-015-2411-5.

[11] The Network Simulator – ns-2 http://www.isi.edu/nsnam/ns
