International Journal of Computer Networks & Communications (IJCNC)




Auday H. Al-Wattar1, Ramlan Mahmod2,Zuriati Ahmad Zukarnain3 and NurIzura
1Faculty of Computer Science and Information Technology, Universiti Putra Malaysia,
43400 UPM, Serdang, Selangor.


The use of key-dependent MixColumns can be regarded as one of the applied techniques for changing the quality of a cryptographic algorithm. This article explains one approach for altering the MixColumns transformation engaged in the AES algorithm. The approach employed methods inspired from DNA processes and structure, which relied on the key.The parameters of the proposedMixCloumns have characteristics identical to those of the original algorithm AES besides increasing its resistance against attack.The original transformation uses single static MDS matrix while the proposed methods used dynamic MDS. The security of the new MixColumns was analyzed, and the NIST Test Suite tests were used
to test the randomness for the block cipher that used the new transformation.


Recently, the need for anextremelyefficientapproach to attain information security is critical and vital. Cryptography has been and stays behind the most proficient approach employed to achieve security. Rijndael is a symmetric block cipher that was selected by (NIST) (National Institute of Standards and Technology), [1] in 2001 as (advanced Encryption Standard, FIPS 197) AES.

In general, it is based on repeated rounds of transformation that alter input plaintext to encryptedtext or ciphertext output. Each round consists of several functions and always includes a depending on the roundsecretkey. Multiple roundsestablish inverse transforming ciphertext into the original, using the same secret key. AES has 128 –bit block size, and a key length is 128, 192 or 256 bits, relying on to the number of rounds for the algorithm. It is using a byte array known asthe state of (4×4)size in each cycle of the encryption / decryption process. The majority of the algorithm calculations is accomplished in finite fields [2,3].

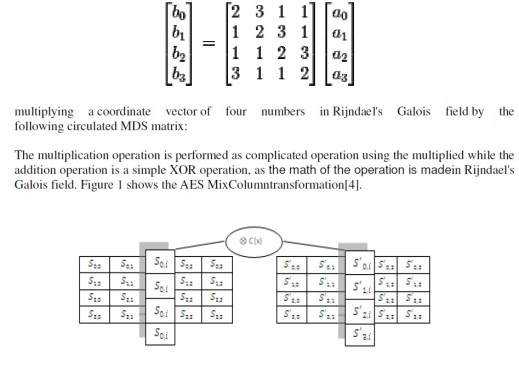

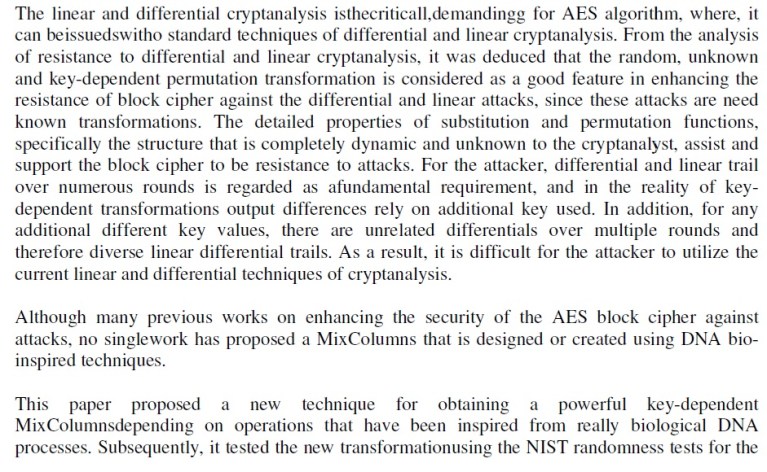

At AES, the MixColumns transformation is the most important function within the linear unit of symmetric encryption algorithms.Itis themajor source of diffusion in the AES block cipher. Each column is dealt with as a polynomial through GF (), and then modulo is multiplied by a fixed polynomial c (x) = 3x3+x2+x+2.The inverse of this polynomial is Cx-1 =11x3+13x2+9x+14. The MixColumnsprocedure can be executed by that with the DNA-based MixColumn and performed a security analysisof the proposed transformation.


DNA (Deoxyribo Nucleic Acid) is a molecule that characterizes the genetic material for every living organism. It is assumed as the genetic drawing of living or existing creatures. A singlestrand of DNA consists of a chain of molecules known as bases, defined as four letters {A, C, G, and T}[5,6]. One of the most fundamentalcharacteristics of the DNA strand series is that it is oriented; as a result, ATCGTACT is distinct from TCATGCTA.

The DNA strands exist as pairs as (G) associated with (C) and (A) associated with (T) figuringcomponents named base pairs. The reverse DNA strands representing the opposite of the strand bases; for example, AGCTAGGCATAA becomes AATACGGATCGA, while the complement of the strands can be represented as A¯ T and C¯ G. Therefore, GCATAA will become TTATGC[7,9]. The DNA segment consists of two parts named as Exon, and Entron respectively.


The central dogma process of the DNA strand bases is one of the main methods that characterize the biology DNA system. It comprises of operations on DNA and RNA (Ribonucleic acid), including transcription, translation, and replication. The DNA segment consists of parts: Coded parts (Exon) and non-coding parts (Intron).

The process of the central dogma of molecular biology can be described in Figure 2, in which the genes’ information glides into proteins [10].


• According to Figure 2, there are two methods within the central dogma as transcription and translation which achieved to obtain the Protein. The transcription methods are performed by removing the non-coding parts (Introns) and keeping the coding part (Entrons), while the translation methods including converting the RNA as MRNA into Proteins.

In this paper, the creation of a key-dependent MixColums is based on and inspired by transcription process.


In this paper the proposed MixColumns transformation will refer to as a key-dependent MixColumns transformation (kdM_Tr).

This (kdM_Tr), willrely on the key cipher (Kr), which is differentin each round (r).

In the original AES, the MDS matrix of the MixColumns transformation remainspermanent for all rounds, whilethe proposed method the MDS matrix will be changed for each round according to the key cipher.

To explain the proposed method, we first used the AES original MDS matrix as a base matrixas shown in Figure 3.

Figure 3: A 4×4 MDS

There are two ways to use the key Kr for the (), The first one is to use four bytes of the key such that have taken the values ranging between 0, and 3, while the second way is to use only one byte of the key. In the both ways the key values are stored withinMOK matrix.

The applying of MOK on the MDS matrix to generate a new MDS matrix for each round is inspired by the real DNA transcription process as shown in Figure 2. According to this procedure the skipped columns will be regarded as Introns while the left behind columns will be considered as Exon. The values of MOK will state the number of columns that will be skipped representing the number of Intron. The generating method which called columns transcription is performed by skipping a number of columns of the MDS matrix according to the amount exist in the MOK

First:MOK with four bytes (values): For the first way (four bytes), the following procedure will be performed to obtain the (kdM_Tr), The work of this process will be done according to the key stored in MOK, and the values of the MDS matrix‘s first row.

The columns of this matrixwill be shifted according to the key values as following:

If the key value = 1, then the row’s values of theorigin MDS matrix will be shifted one positionto
the right.
If the value of the key = 0, then the row’svalues of MDS will not change.
If the key value = 2, thenthe valuesof MDS rows willbe shifted to the right 2 positions.
Finally, if the value of the key = 3, then the MDSrow values will be shifted 3 positions. Figure 4, demonstrates the whole process. Since the values of the key are changingat each round, this will lead generating new different MDS for  ixColumns transformation for every round.

The value of the key in MOK matrix indicates the number of columns of the first row of MDS  that should be skipped, referring to biology, DNA concept the skipped columns are considered as (Intron) which are removed, while the remaining columns are considered as (Exon) through the transcription/ splice process


4.1 Correlation coefficient

The correlation coefficient involves values ranging from (-1 and +1). According to[11] the following values are in a good range for explicating the correlation coefficient as stated in Table 1.Note that this paper considers the two variables of plaintext (p) and ciphertext (c)

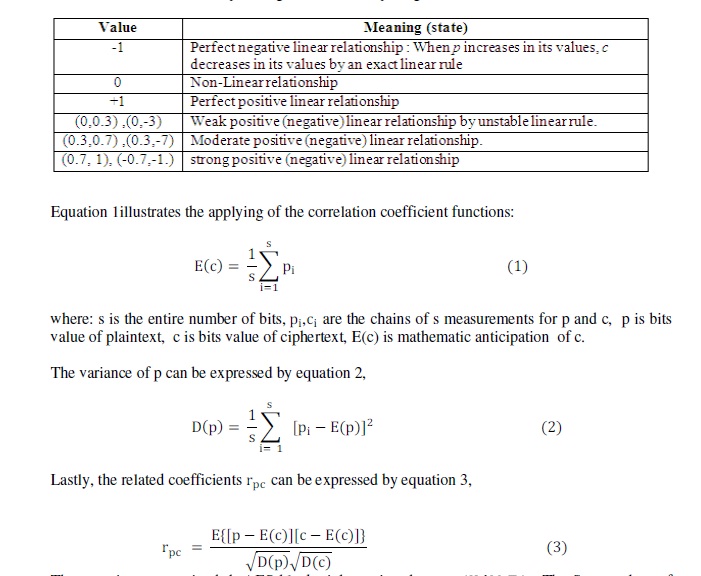

Table 1. Accepted range values for interpreting the correlation coefficient Equation 1illustrates the applying of the correlation coefficient functions:

The experiment examined theAES block cipher using the new (kdM_Tr). The Scatter chart of the results is presented in Figure 6. It illustrates that the majority of correlation values, at different rounds through the whole block cipher are near to 0, which indicates a strong positive (or negative) non-linear relationship. Only 0.007% are near to +1 or -1, in round 1, representing a weak positive (or negative) non-linear relationship. From the results, it can be inferred that the
block cipher has an improved confusion performance.

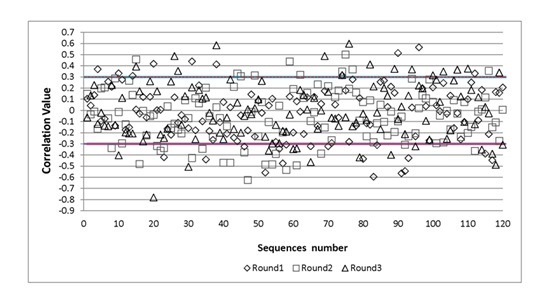

Figure 6. Scatter chart of the correlation test results on whole block cipher

4.2 NIST Suite Randomness test

The randomness test is one of the security analysis to measure the confusion and the diffusion properties of the new encryption algorithm, as carried out in [12-14][15] and[16].

NIST Suite [17] is a statistical test suite for randomness by NIST used to assess the cryptographic algorithm. The suite test assesses whether the outputs of the algorithms under certain test condition exhibit properties that would be expected randomly generated outputs.

In order to evaluate the randomness of ciphertext, an experiment that included a set of data as random plaintext and random 16 byte key in the ECB mode was conducted. The 100 sequences of 1,059,584 bits were constructed and examined. The list of statistical tests applied throughout the experiments is illustrated in Table 2.

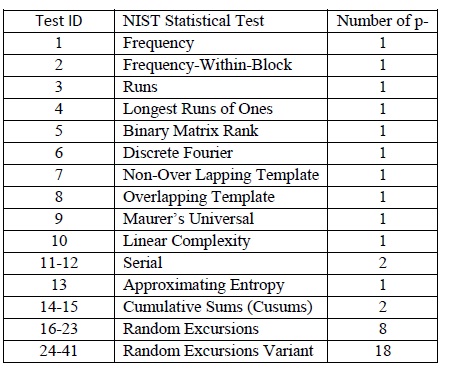

Table 2. Breakdown of 15 statistical tests applied during experimentation

The proportion of sequences that passed a specific statistical test should lie above the proportion value p, defined in Equation (4).


The new MixColumns transformation is dynamic and its changing at each round according to round key-value this feature make the job harder for the attackers since the analysis of dynamic unit is more difficult than the static one. For the dynamic MixColumns, the attacker has the possibility of 2n !which consider a high number, that increasing the resistance of the algorithm against the attacks.The AES security factors plus the new security features applied by the proposed (KdM_Tr), are worked to enhance security of the block cipher.


In this paper a new dynamic key-dependent MixColumns transformation for AES block cipher was proposed with chosen byte or four bytes of the private key. The new transformation is not fixed, but changeable at each round according to the round key values. The MDS matrix of the MixColumns is changed according to this key. This unit was tested with the correlation coefficient and the 15 statistical randomness tests of NIST Test Suite. The analyzing of the obtained results showed that, this new transformation is more secure and resistance against the attacks, on which concluded that it is potential to employ it for an encryption. This will increases the stability of AES against linear and differential cryptanalysis.


[1] J. Daemen and V. Rijmen, “AES proposal: Rijndael,” in First Advanced Encryption Standard (AES) Conference, 1998.
[2] V. Rijmen and J. Daemen, “Advanced Encryption Standard,” Proceedings of Federal Information Processing Standards Publications, National Institute of Standards and Technology, pp. 19-22, 2001.
[3] L. Information Technology, Announcing the Advanced Encryption Standard (AES) [electronic resource]. Gaithersburg, MD :: Computer Security Division, Information Technology Laboratory, National Institute of Standards and Technology, 2001.
[4] P. FIPS, “197: Advanced encryption standard (AES),” National Institute of Standards and Technology, 2001.
[5] M. Zhang, M. X. Cheng, and T.-J.Tarn, “A mathematical formulation of DNA computation,” NanoBioscience, IEEE Transactions on, vol. 5, pp. 32-40, 2006.
[6] M. Zhang, C. L. Sabharwal, W. Tao, T.-J.Tarn, N. Xi, and G. Li, “Interactive DNA sequence and structure design for DNA nanoapplications,” NanoBioscience, IEEE Transactions on, vol. 3, pp. 286- 292, 2004.
[7] E. R. Kandel, “The molecular biology of memory storage: a dialogue between genes and synapses,” Science, vol. 294, pp. 1030-1038, 2001.
[8] G. I. Bell and D. C. Torney, “Repetitive DNA sequences: some considerations for simple sequence repeats,” Computers & chemistry, vol. 17, pp. 185-190, 1993.
[9] A. G. D’yachkov, P. L. Erdös, A. J. Macula, V. V. Rykov, D. C. Torney, C.-S. Tung, et al., “Exordium for DNA codes,” Journal of Combinatorial Optimization, vol. 7, pp. 369-379, 2003.
[10] F. Crick, “Central dogma of molecular biology,” Nature, vol. 227, pp. 561-563, 1970.
[11] K. Wong, “Interpretation of correlation coefficients,” Hong Kong Medical Journal, vol. 16, p. 237, 2010.
[12] F. Sulak, A. Doganaksoy, B. Ege, and O. Koçak, “Evaluation of randomness test results for short sequences,” in Sequences and Their Applications–SETA 2010, ed: Springer, 2010, pp. 309-319.
[13] Q. Zhou, X. Liao, K.-w.Wong, Y. Hu, and D. Xiao, “True random number generator based on mouse movement and chaotic hash function,” information sciences, vol. 179, pp. 3442-3450, 2009.
[14] V. Patidar, K. K. Sud, and N. K. Pareek, “A Pseudo Random Bit Generator Based on Chaotic Logistic Map and its Statistical Testing,” Informatica (03505596), vol. 33, 2009.
[15] J. Soto and L. Bassham, “Randomness testing of the advanced encryption standard finalist candidates,” DTIC Document2000.
[16] V. Katos, “A randomness test for block ciphers,” Applied mathematics and computation, vol. 162, pp. 29-35, 2005.
[17] E. B. Smid, S. Leigh, M. Levenson, M. Vangel, A. DavidBanks, and S. JamesDray, “A Statistical Test Suite for Random and Pseudorandom Number Generators for Cryptographic Applications.”


AudayH.Al-Wattar obtained his B.Sc. degree in Computer Science from Mosul University and his M.Sc. Degree from Technology University-Baghdad in 2005 .He presently pursing his Ph.D. From Universiti Putra Malaysia, Malaysia under the guidance of Prof. Dr. Ramaln bin Mahmod at Computer Science and Information Technology Faculty. He works as lecturer at Mosul University (since 2005), at Computer Science and Mathematics Faculty – Computer Science Department. His area of interest includes Computer Security, Programming languages.

Ramlan B Mahmodobtained his B.Sc. in computer Science, from Western Michigan, University, U.S.A. in
1983, and M.Sc. degree in Computer science, from Central Michigan, University, U.S.A. and Ph.D. degree
in Artificial Intelligence from, Bradford University, UK in 1994. His previous workings
Experience/Position are as:

System Analyst, PETRONAS,1979-1980. Lecturer,Mathematic Department, Faculty of Science, UPM, 1985-1994. Lecturer,Department of Multimedia, Faculty of Computer Science & Information Technology, UPM, 1994 – 2002. Associate Professor,Department of Multimedia, Faculty of Computer Science & Information Technology, UPM, 2002 – 2010.

Deputy Dean,Faculty of Computer Science & Information Technology, UPM, 1998 – Nov 2006.Dean,Faculty of Computer Science & Information Technology, UPM, 2010-2013. Professor, Faculty of Computer Science & Information Technology, UPM, 2012 – now. His research interest includes Neural Network, Artificial Intelligence, Computer Security and Image Processing.

NurIzurabintiUdzir obtained her B.Sc. in computer Science, from UniversitiPertanian Malaysia, in 1995, and M.Sc. degree in Computer science, from Universiti Putra Malaysia, in 1998, and Ph.D. degree in Computer Science from, University of York, UK in 2006.

Associate Professor,HeadDepartment of Computer Science, Faculty of Computer Science & Information Technology, UPM. Her research interest includes Computer security, secure operating systems, Access control, Distributed systems, Intrusion detection systems.

ZuriatiBinti Ahmad Zukarnain obtained her B.Sc. in Physics,, from Universiti Putra Malaysia, in 1997, and M.Sc. degree in Information Technology, from Universiti Putra Malaysia, in 2000, and Ph.D. degree in Quantum Computation and Quantum Information from, University of Bradford, UK, 2006,UK in 2006.

Associate Professor, Department Of Communication Technology and Networking, Faculty of Computer Science & Information Technology, UPM. Her research interest includes information, computer and communication technology (ICT), Quantum Information Systems and Distributed Systems, Quantum Computing, Computer Networks and Distributed Computing.
