Understanding Traffic Patterns of COVID-19 IoC in Huge Academic Backbone Network SINET
Ruo Ando1, Youki Kadobayashi2, Hiroki Takakura1, Hiroshi Itoh3
1National Institute of Informatics, 2-1-2 Hitotsubashi, Chiyoda-ku, Tokyo 101-8430 Japan
2Nara Institute of Science and Technology 8916-5 Takayama, Ikoma, Nara 630-0192 Japan
3National Institute of Information and Communications Technology 4-2-1 Nukui-Kitamachi, Koganei, Tokyo 184-8795, Japan
Recently, APT (Advanced Persistent Threats) groups are using the COVID-19 pandemic as part of their cyber operations. In response to cyber threat actors, IoCs (Indicators of Compromise) are being provided to help us take some countermeasures. In this paper, we analyse how the coronavirus-based cyber attack unfolded on the academic infrastructure network SINET (The Science Information Network) based on the passive measurement with IoC. SINET is Japan’s academic information infrastructure network. To extract and analyze the traffic patterns of the COVID-19 attacker group, we implemented a data flow pipeline for handling huge session traffic data observed on SINET. The data flow pipeline provides three functions: (1) identification the direction of the traffic, (2) filtering the port numbers, and (3) generation of the time series data. From the output of our pipeline, it is clear that the attacker’s traffic can be broken down into several patterns. To name a few, we have witnessed (1) huge burstiness (port 25: FTP and high port applications), (3) diurnal patterns (port 443: SSL), and (3) periodic patterns with low amplitude (port 25: SMTP) We can conclude that some unveiled patterns by our pipeline are informative to handling security operations of the academic backbone network. Particularly, we have found burstiness of high port and unknown applications with the number of session data ranging from 10,000 to 35,000. For understanding the traffic patterns on SINET, our data flow pipeline can utilize any IoC based on the list of IP address for traffic ingress/egress identification and port filtering.
COVID-19 related IoC, traffic patterns, data flow pipeline, port filtering, SINET, high port application.
The outbreak of the COVID-19 pandemic crisis around the world had imposed an unexpected and great impact on everyday life. COVID-19 has become a global pandemic, which represents an opportunity for ATP groups to exploit the situation. Since January 2020, APT groups have done just that, targeting academic networks as well as government and non-government networks using COVID-19 as a lure. US-CERT releases the indicators of compromise concerning COVID-19-related security incidents . In this paper, we present some traffic patterns unveiled from COVID-19 related IoC  in huge academic backbone network SINET. This paper is organized as follows: after the introduction and related work of section 1 and 2, we discuss the motivation in session 3 and background of our study in section 4. In section 5, we present the dataset. Our traffic observation is based on passive measurement and session data obtained by PaloAlto-7080 . Methodology in section 6 is divided into three parts: architecture (dataflow pipeline), objectives (traffic discrimination and map-reduce) and components (Elasticsearch and Splunk). In section 7, we discuss traffic patterns unveiled by our system. In section 8, we discuss insights obtained in the observation of traffic flow in SINET. Then we conclude with some future works in section 9.
2. Related Work
Favele et al.  presents the impact of the lockdown during pandemic on the Politecnico di Torino campus network. They discuss the robustness of the Internet for maintaining university operations. Baz et al.  present a research effort about the impact of COVID-19 pandemic on cybersecurity by ranking the various aspects of cybersecurity by using the multi-criteria decision-making problem-solving technique. In , COVID-19 pandemic is analyzed in the view of cyber-crime perspective. Besides, several cyber attacks experienced globally during the COIVID-19 pandemic is discussed. Yang et al.  presents an analysis of cybersecurity attacks on the smart home. Groenendaal et al.  conducts semi-structured in-depth interviews for analyzing how a global financial institution copes with the crisis of COVID-19.
In , they present a characterization of Amazon’s Web Services(AWS) to unveil their infrastructure and pervasiveness of content. Drago et al.  presents a characterization of Dropbox based on passive measurements during 42 consecutive days. In , they aim at extracting and modelling traffic patterns of 9600 large scale towers deployed in the metropolitan city. Liu et al.  presents an analysis for five-month access trace of Tsinghua University. In , a dataset of 350 which consist of million HTTP requests from a large mobile cloud service are analyzed. Shafiq et al.  they present measurement and characterization of the spatial and temporal dynamics of mobile Internet traffic. In , they adopt a week-long aggregated flow level mobile device traffic data Ando et al  presents the task-decomposition based anomaly detection of massive and high-volatility traffic. In , they describe their experience with applying the Splunk log analysis tool in Sadia National Laboratories. Concerning detecting burstiness, Alsulaiman et al.  presents the evaluation of machine learning algorithms by Waikato Environment for Knowledge Analysis (WEKA) for the detection of DoS attack in wireless sensor network. In , markov chain is adopted for the early detection of DDoS attacks. In , a hybrid detection model of clustering and classification is proposed for IDS to work with STMP proxy.
The fundamental purpose of a security job is to defend assets, which presupposes that someone wants to attack. Network security is no exception. What kind of security measure is necessary depends, in part, on the types of attackers you are defending against. A threat actor, a burglar, or a government agent – each requires different countermeasures to protect. Usually, a single attacker can undertake various and different approaches. Usually, a single type of attack can be launched by many various attackers. These combinations of attacker and attack pose a threat. It is commonly said that “know your enemy” is important. If we mischaracterize our threat actors, we are likely to misallocate our defenses. To make matters worse, you are also likely to consider nonexistent risks and ignore real ones. Mischaracterizing is not always a disaster, but it is certainly more likely to result in one. Therefore, understanding patterns of COVID-19 related IoC can be helpful to take appropriate protective measures.
4.1 COVID-19 (as a lure)
The outbreak of the COVID-19 pandemic crisis is imposing a significant impact, which results in that unprecedented measures are taken by governments. According to , threat actors and APT groups are likely to exploit the current situation of the COVID-19. Threats observed are as follows:
In this paper, we are focusing on threats observed (1) and (2) by exposing traffic patterns observed in SINET.
4.2 NII-SOCS and SINET
NII-SOCS, which stands for NII Security Operation Collaboration Services were founded by The National Institute of Informatics in Japan in 2016. NII-SOCS is launched with the Center for Cybersecurity Research and Development and the administrative officials of the Academic Infrastructure Division. Our center had developed a network security infrastructure to observe traffic and detect cyber attacks in SINET in Japan. SINET is a Japanese academic backbone network. SINET is responsible for handling the networking of more than 800 universities and research institutions. SINET manages a variety of research facilities in space science, seismology, high-energy physics, nuclear fusion, computing science. Currently, in 2021, SINET has over 2 million users. Our team of NII-SOCS has deployed a dataflow pipeline. The pipeline consists of PaloAlto-7080 firewall, ELK stack, Splunk, and NVidia Multi-GPU server .
4.3 IoCs and application
IoCs are the artifacts such as malicious file hashes, domain names, or IP addresses that indicate intrusion attempts or other malicious behaviour. In this paper, we use the list of IP addresses according to .
Table 1. Ranking of ingoing application traffic.
Tables 1 and 2 show the application breakdown of the traffic observed in SINET by the IOC in . In both cases, incomplete, unknown-TCP, and unknown-UDP occupy the top positions. From this, it is clear that most of the traffic generated by the attacker is unidentifiable.
Table 2. Ranking of outgoing application traffic.
5. Data Set
Our analysis is based on the passive measurement by PaloAlto 7080. The thrust of the PA-7000 series is a scalable architecture for the purpose of adopting the flexible and powerful processing of the tasks of firewall and security management. A firewall such as PaloAlto-7080 plays an essential role in network security. Traffic patterns of session data are extracted from the session data of PA-7080. Table 3 depicts the session data format. Column 1-9 is about TCP/IP packet header related items. Column 19-23 is used to generate statistics. Column 12 (application) and column (category) are essential for characterizing the traffic patterns.

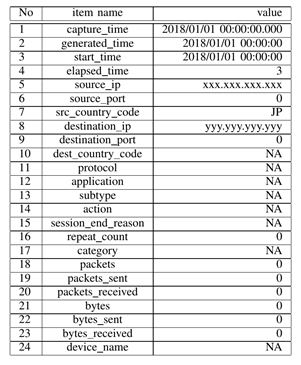

Table 3. PA 7080 session data description
6. Methodology and Architecture
6.1 Dataflow Pipeline
We have implemented the data flow pipeline between Elasticsearch and Splunk. Figure 1 depicts a brief description of the workflow of the basic design of the pipeline. The main objectives of the pipeline are as follows:
(1) Retrieving data from Elasticsearch.
(2) Dividing session data into outgoing/ingoing.
(3) Passing outgoing/ingoing data to Splunk.
The components of the pipeline are as follows:
(1) DB1: ElasticSearch is responsible for storing session data.
(2) Server: Multi GPU server divides session data into ingress/egress chunks in coordinated batch processing manner.
(3) DB2: Splunk is stores output from multi GPU server to generate time-series data and provide some analytics with SPL command.

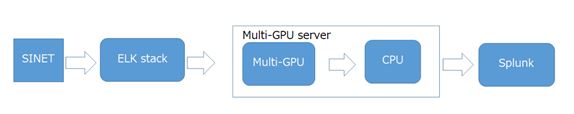

Figure 1. Our pipeline consists of three parts: ELK stack (Elasticsearch), Multi-GPU server and Splunk
Table 4. Parallelism
Our pipeline works sequentially from (1) to (3).
Table 4 shows parallel computing technologies adopted in three phases in our pipeline. First, retrieving data from ELK stack is leveraged by huge pagination in task level. Second, inside multi-GPU server, vector level parallelism is adopted for CIDR matching. Finally, Intel TBB is used for generating time series data by map-reduce algorithm in thread level. Ando et al.  discuss the effectiveness of the appropriate choice of parallelism in building the dataflow pipeline for handling huge traffic flow.

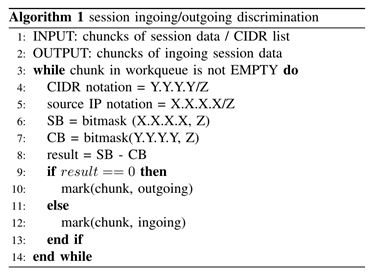

Algorithm 1. Dividing session data into ingoing/outgoing
6.2 Traffic Discrimination
Traffic discrimination is to identify traffic data into ingoing/outgoing. Traffic discrimination is essential to preprocess to analyze data in Splunk for time-series analysis to extract traffic patterns. Also, after diving session data into egress/ingress, we can proceed to the procedure of map-reduce to generate a histogram of traffic data. Algorithm 1 depicts the procedure step for traffic identification of ingoing/outgoing. At the first phase of this algorithm, session data have been divided into tens of chunks. The final goal of this algorithm is to mark ingoing/outgoing labels for each column of data. At lines 6 and 7, a bit sequence of source IP address session data (noted as SB) is obtained. Also, SINET address range (noted as CB) is provided for bitmasking. Then we proceed to line 9. If SD is equal to CB, the direction of the column is identified as outgoing. In the algorithm, instead of matching SD to CB directly, minus operator is used at line 8. Finally, if the result is 0, we add the flag of $outgoing$ at the head of the column. If the result equals 1, ingoing label is added to the column.
6.3 Map Reduce
The main objective of map-reduce is to generate a collection of key-value pairs of which the elements. Map-reduce consists of two steps:
(1) Taking a collection of data.
(2) Associating a value with each item in the collection.
The pair of keys and values should be independent of each input in the collection. The second phase of reduction is merging several different outputs from the previous (map) phase into a single output. The output of reduction is the representative data. The procedure of reducing should be repeated in order to yield the output down to a single value over an entire data set.
Elasticsearch is a distributed and full-text search engine based on the Lucene library. Elasticsearch is usually used as a NoSQL storage, indexing with unstructured documents.
Elasticsearch handles schema-free JSON documents. One of the most important advantages of Elasiticsearch is horizontal scalability. The session data obverse in SINET per day ranges from hundreds of millions to billions. To handle such huge session data, we adopt Elasticsearch with the powerful horizontal scaling. In our system, we are running 36 data nodes with 36 shards in 4 servers.
Splunk is a semi-structured time-series database. Splunk can handle index, search and analyze heterogeneous datasets. Splunk is a feature-rich tool with over 140 commands of search processing language (SPL). SPL helps explore a massive amount of data to discover the needle in the haystack and the root cause of incidents. Mainly we use two SPL commands as follows:

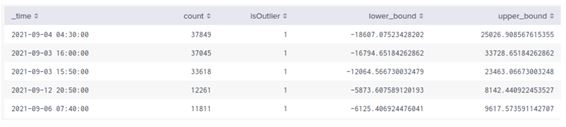

Figure 2. Output table of Splunk streamstats commands
7. Traffic Patterns
Traffic flow in SINET has high volatility, which may obscure the patterns of a lower range. As with the ingress traffic, there are often large spikes seen, but we can see a pattern of small but periodic fluctuations. The characterization of the observed traffic can be divided into the following four categories. The four categories are:
(1) patterns of bursts.
(2) patterns of daily cycles.
(3) volatility that fall within a specific range.
(4) patterns with bursts within periodic variations.
In the following subsections, we discuss burstiness and daily patterns.
7.1 All COVID-19 related IoC traffic
Figure 3 and Figure 4 show the time series data of the IOC traffic for COVID-19. As for the inward traffic, the number of sessions is usually only a few hundred, but more than 25,000 sessions were observed with the onset of bursts. This is about 25 times larger than normal traffic. Ingress traffic can be characterized as high volatility. For outgoing traffic, there are a few scattered bursts in the daily cyclic pattern. The cyclic pattern shows a range of traffic volume between about 1000 and 2500, but the burst observed on September 9 was about 4 to 10 times larger, more than about 11,000.

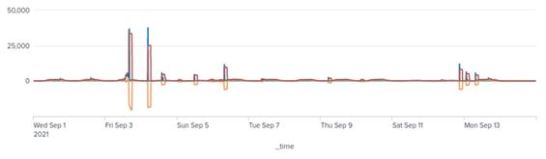

Figure 3. Timeseries of all ingress traffic of COVID-19 IoC on SINET. Traffic bursts are observed on September 3 and 4. During peak hours, more than 15 times the number of sessions than normal were observed. The third largest peak is due to FTP sessions

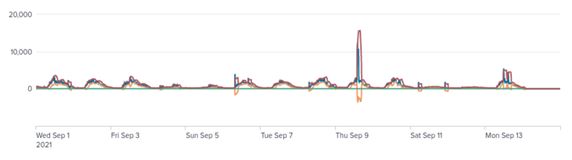

Figure 4. Timeseries of all egress traffic of COVID-19 IoC on SINET. The largest peak was observed around September 3. This was caused by the high port application communicating with outside SINET
Burstiness means a drastic traffic increase in time-series data. Coping with burstiness appropriately is important because of two reasons:
(1) Traffic burst is generated by scanning, attacks, and information leakage.
(2) Huge burstiness makes other important traffic patterns invisible.
Figure 5 shows the ongoing traffic of high port applications where the port number is higher than 1024. Figure 6 depicts the outgoing traffic with a port number is higher than 1024. As usual, session data volume is around a few hundred sessions. On September 3 and 4, the traffic volume exceeded over 30,000. The number of numbers observed is scattered around 60,000. It is worth noting that the burst timing is not consistent for egress/ingress high port application traffic. Based on this observation, it can be inferred that if attacks with the ingoing session are successful, the outward traffic as a response is not generated immediately and intentionally. It also became clear that at the time of the bursts of high port applications in Figures 5 and 6, the high port application traffic accounts for more than 95% of the total traffic.

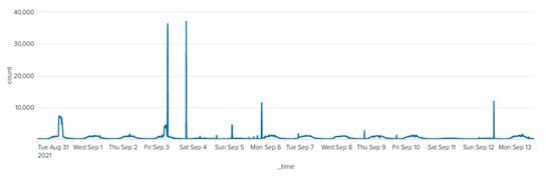

Figure 5. Time series of ingress traffic genearted by highport ($portNo > 1024$) application in SINET. Traffic is the accumulation of small sessions. The traffic is an accumulation of small sessions, and the connections are concentrated on 60,000 ports
Figure 6. Time series of ingress traffic generated by highport ($portNo > 1024$) application in SINET.A spike of about 10000 sessions was observed on September 9. When analyzed in conjunction with Figure 5, this spike is not an immediate response to the inward spike and requires further analysis
Figure 7 depicts the ongoing traffic time-series using port 21 (FTP). Port filtering of 21 successfully reveals the patterns of burstiness with the number of sessions around 10,000. In daily observation, no FTP sessions are observed. Some other burstiness with the session number ranging from 500 to 2,200 have been observed. From a macroscopic point of view, the number of sessions during bursts is about 5,000, which is quite small compared to the entire SINET traffic volume. This suggests that the attackers have narrowed down the IP address range to be investigated in advance. It can be inferred that the threat actors might research the address range of SINET in detail.

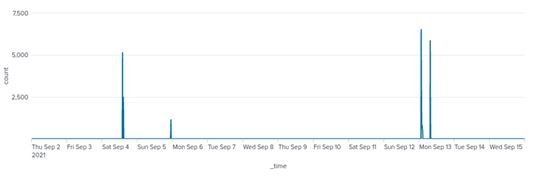

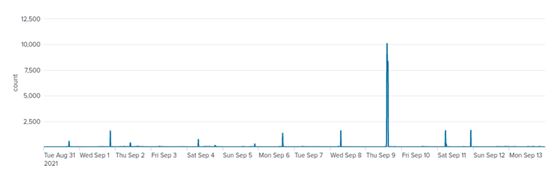

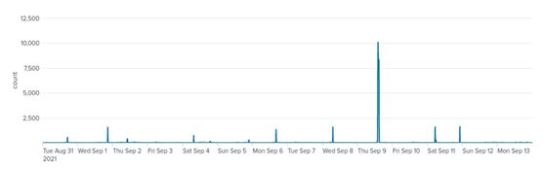

Figure 7. Time series of ingress traffic of port-21(FTP). Other than the spikes observed on September 5 and 13, there are no FTP sessions under normal circumstances, so we assume that the attackers are systematically conducting reconnaissance to port 21
7.3 Diurnal Patterns
Figure 8 shows the outward traffic on port 443 from SINET. We can see a pattern of daily cycles, with session counts ranging from about a few dozen to about 2000. In addition, the amplitude of the cycle is different between weekdays and weekends. It is presumed that IP addresses of COVID-19 related IoC include the destination of normal traffic where SINET user accesses in daily usage. Figure 9 shows the time series of egress traffic port 25. STMP traffic shows a slight cyclical variation, though not a daily cycle. Since some kind of outgoing STMP traffic has been observed on the IP address identified as IoC, further investigation is required in some cases.

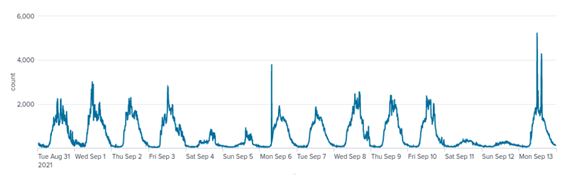

Figure 8. Time series of egress traffic of port 443. A cyclical pattern can be seen between weekdays and weekends. Perhaps some of the IoCs are generating normal traffic, for example, they may be providing some kind of web service. In addition, sessions of around 4,000 were observed on September 6 and 13, but this requires further investigation

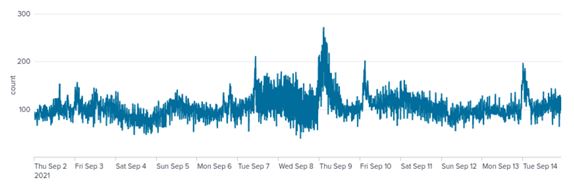

Figure 9. Time series of egress traffic port 25. Although the number of SMTP sessions has been hovering around 100, further investigation may be necessary in terms of communication to the servers listed as IoCs
7.4 Traffic Breakdown by application

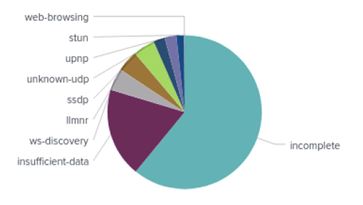

Figures 9 and 10 depict the ratio of application traffic. Figure 9 shows the applications of outgoing traffic of SINET around traffic burst on September 9. The list of applications tends to be changed frequently according to the period of observation. From a long-term perspective, “incomplete” usually accounts for 60% of the total.
Figure 10. Traffic breakdown of application of outgoing session from SINET

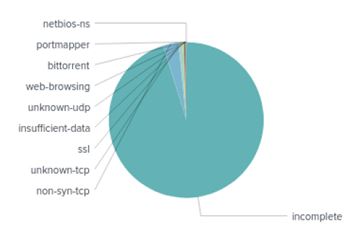

Figure 10 shows the breakdown of ingoing application traffic of SINET around traffic burst on September 3. Compared with Figure 9, “incomplete” traffic accounts for a larger percentage. This means the traffic flow in the observation was not well recognized.
Figure 11. Traffic breakdown of application of ingoing session from SINET
8. Insights and Discussion
Both APT groups and cybercriminals continue to exploit the COVID-19 pandemic. Threats observed include:
(1) Phishing, using COVID-19 as a lure.
(2) Malware distribution.
(3) Malformed domain registration.
(4) Compromising remote access and teleworking infrastructure.
As for (1), no large-scale SMTP or webmail traffic was observed on SINET. This may be because the mail server is outside the group of IP addresses listed in the IOC. That is, if ATP groups send phishing emails, they may send it by the mail server outside SINET. As for (2), a large amount of high-port application traffic was observed during the observation period, and it is highly likely that malware sessions were included in the ingoing/outgoing traffic of SINET. Another possible scenario is that a large number of mail transmissions are occasionally observed within SINET. Consequently, it can be inferred that the mail server inside SINET is being hijacked to send spam mail. There are several possible reasons why no significant spam mail traffic has been observed in the short term. One reason is that the sender’s mail server is not located in the IoC; it is possible that a server inside SINET has been hijacked. Another reason may be that this IoC group is not in charge of Japanese spam mail due to the problem of Japanese localization of spam mail. As is commonly believed, no reconnaissance activities targeting the RDP (3389) were observed in SINET. There were many scans targeting high-port applications and FTP (21). In addition, a deeper analysis of the high-port application traffic is required.
Anomaly detection is an effective way to detect security incidents on the network. As we saw in Tables 1 and 2, as long as most of the traffic from the IoC is either unknown or incomplete, we have no choice but to use anomaly detection. However, in order for anomaly detection algorithms to be effective, they need to be filtered in advance with crafted traffic filtering. If the filtering as a pre-processing is not done well, the anomaly detection will not be successful. At this point, the problem lies in how to do efficient filtering for large-scale data.
In 2009 researchers from Google wrote a paper with the title The Unreasonable Effectiveness of Data . In , they argue that a highly effective machine learning algorithm with a trillion lines of a dataset cannot work well with a clean dataset with a few million lines. The concept of our system is partly based on this paper. That is, first of all, the amount of observed session data is an issue to be considered. What kind of algorithm implementation and its tuning is proper often depends on the size of traffic data.
Concerning the countermeasures, the NII-SOCS team analyses the anomaly high port traffic and The NII-SOCS team will alert each university of the incident. It became clear that APT groups exploiting the current situation of COVID-19 are active in the use of high port traffic. BGP flowspec can be adopted for the mitigation of traffic bursts.
Recently, APT groups are exploiting the COVID-19 pandemic as part of their cyber operations. In response to cyber threat actors, IoC (Indicator of Compromise) is being provided to help us take some countermeasures. However, there have been few things understood concerning traffic patterns of COVID-19 related IoCs in the academic backbone network. In this paper, we analyze how the coronavirus-based threat actors behave on the academic infrastructure network SINET. Our analysis is based on the passive measurement with IoC. To extract and analyze the traffic patterns of the COVID-19 attacker group, we implemented a data flow pipeline for handling huge session traffic data observed on SINET. With the help of our dataflow pipeline, we have obtained some important insights. From the output of our pipeline, it is clear that the attacker’s traffic can be broken down into several patterns. To name a few, we have witnessed (1) huge burstiness (port 25: FTP and high port applications), (3) diurnal patterns (port 443: SSL), and (3) periodic patterns with low amplitude (port 25: SMTP). Concerning the application breakdown on ingoing burst traffic around September 3 and outgoing burstiness on around September 9, a lot of incomplete application traffic was observed. At this point, COVID-19 IoC-related traffic was not well recognized and therefore needs to be inspected in more detail. It can be concluded that some unveiled patterns by our pipeline are informative to handling security operations of the academic backbone network. Future work includes a qualitative study of the traffic of high-port applications. As far as we can see, most of the traffic is homogeneously distributed over 60,000 port numbers, and we believe that anomaly detection can be effective using this feature.
