International Journal of Computer Networks & Communications (IJCNC)



Mahabaleshwar Kabbur, Anand R and Arul Kumar V
School of Computer Science & Applications,
REVA University, Bengaluru-64, Karnataka, India


Vehicular Ad-hoc network (VANET) is one of the emerging technologies for research community to get various research challenges to construct secured framework for autonomous vehicular communication. The prime concern of this technology is to provide efficient data communication among registered vehicle nodes. The several research ideas are implemented practically to improve overall communication in VANETs by considering security and privacy as major aspects of VANETs. Several mechanisms have been implemented using cryptography algorithms and methodologies. However, these mechanisms provide a solution only for some restricted environments and to limited security threats. Hence, the proposed novel mechanism has been introduced, implemented and tested using key management technique. It provides secured network environment for VANET and its components. Later, this mechanism provides security for data packets of emergency messages using cryptography mechanism. Hence, the proposed novel mechanism is named Group Key Management & Cryptography Schemes (GKMC). The experimental analysis shows significant improvements in the network performance to provide security and privacy for emergency messages. This GKMC mechanism will help the VANET user’s to perform secured emergency message communication in network environment.


Network Protocols, Wireless Network, Mobile Network, Virus, Worms & Trojan.


The transportation system plays an important role in the development of any country’s economic growth. Thus, the demand for vehicles increases. This increased utilization of vehicles has several advantages such as better and efficient transportation, and also it has several disadvantages related to road safety and other issues such as accidents. A recent study revealed that, a total of 232 billion accidents are reported in the United States and 100 thousand deaths are reported every year in China, and it is still increasing [1]. In these accidents, more than 57% of accidents are caused due to human error such as lack of attention, poor cooperation among vehicle drivers and poor decisions. The frequent exchange of accident alarm between vehicles can help to avoid these incidents. This communication between vehicles can be performed using wireless communication. Recently, increased growth of wireless communication has gained huge attraction in various real-time applications such as mobile communication, wireless sensor networks and satellite communications, etc. The technological growth in networking, embedded technology has enabled various development opportunities for the automobile industry due to that vehicles are equipped with various types of smart devices such as Wi-Fi, GPS and other smart devices. Due to these smart devices, vehicles can communicate each other through wireless network and facilitates the formation of Vehicular Ad Hoc Network (VANET) where vehicles can communicate to avoid congestion and accidents. Recently, numerous researches are conducted to the establishment of reliable Intelligent Transport System (ITS) which has several facilities such as traffic monitoring, collision control,traffic flow control, nearby location information services, and internet availability in vehicles.Generally, VANETs are characterized by the following factors such as dynamic network topology, on-board sensors, unlimited power, and storage, etc. Similarly, the VANET communication systems can be classified based on the communication types which are: IntraVehicular communication inside the vehicle, vehicle to vehicle communication (V2V), vehicle to infrastructure (V2I) and hybrid communication (V2X) where a vehicle can communicate to the vehicle and road-side units (RSU) [2].During the last decade, the development of ITS and VANET have gained attention by research,industrial and academic field due to its promising nature of reliable transportation system.Several types of research have focused on this field and developed various approaches to improve the performance of VANETs. However, this communication is performed using wireless communication architecture where routing is considered a challenging task. VANETs have
several applications which are mainly categorized into two categories like, safety and non-safety applications. The safety applications perform transmitting safety messages and warning messages for assisting the road to prevent accidents. These messages can include various types of information such as road accidents, traffic jams, emergency vehicles, and road construction, etc. Figure 1 shows actual research scenario of VANET and how emergency messages are unsafe in data transmission process.

These safety messages urges for high security and low latency. On the other hand, non-safety applications include traffic management tasks and infotainment. However, infotainment applications do not require higher security. The safety messages need to be transmitted quickly and reliably. The dynamic network topology becomes a tedious task in VANET to deliver the safety message.

Despite several advantages of VANET in safety and information application, these networks require high security which is considered a challenging task

 Vehicles exchange secret information which can attract attackers to steal and misuse the information hence, a eliable security model is required.
 Due to high dynamic network topology, no authentication is performed due to this, the illegitimate nodes participate in the Security is a prime concern due to following reasons: communication to harm the VANET communication.
 The VANET architecture is infrastructure-less which is easy to attack by outsider attackers hence providing security is important to the users.
 Privacy preservation is an important factor of VANET.
 Transmitting and receiving accurate information without any tampering or spoofing for secure communication.
 Data reliability, confidentiality and user anonymity provides enhanced security to the network.Due to the aforementioned reasons, VANET security is widely studied. These attacks include availability attacks such as denial of service (DoS) and black hole attach, authenticity attacks such as Sybil attack and GPS attack, data confidentiality such as eavesdropping and data trust, non-repudiation such as loss of event traceability. Figure 2 shows a classification of various attacks on VANET.

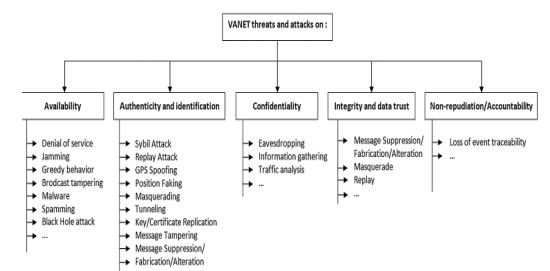

Fig 2. Examples of VANET threats and attacks

These attacks can lead the development of a poor ITS. Hence, security becomes the prime concern for these applications. Several routing approaches have been introduced which include AODV [3], DSDV [4], DSR [5] and OLSR [6] for efficient data delivery and communication. Moreover, heuristic optimization algorithms are also introduced such as Heuristic algorithm using Ant Colony Optimization [7], Meta-heuristic [8], CACONET [9], and improved hybrid ant
particle optimization (IHAPO) [10], etc. Similarly, artificial intelligence schemes are also introduced such as Fuzzy Logic based routing [11], and neural networks [12]. Several techniques are introduced to overcome the security related issues in VANET. Recently, CARAVAN [13], AMOEBA [14], REP [15], VSPN [16] and many more approaches have been developed to facilitate location privacy. Similarly, cryptography based schemes are also introduced to secure the message. [17] Introduced cryptography approach to deal with the Sybil attacks. Some of the security schemes are introduced based on the key-management protocol such as [18] presented Diffie-Hellman key generation scheme. Key management and key generation are the crucial stages of authentication. [19] Presented ID-based authentication protocol. Furthermore, the cryptographic schemes are expanded based on the symmetric and asymmetric cryptography schemes [7]. However, achieving security in these types of dynamic networks is always considered a challenging task and various researches are still in progress to provide more security in VANETs. This work focuses on security requirements of VANET and introduces a novel approach for secure communication in VANETs.
The main contributions of the work are as follows:
 Development of a novel approach for group key distribution which includes
authentication process to improve the network security. Incorporating novel data encryption and decryption process based on the Elliptic Curve Cryptography (ECC) scheme. The rest of the manuscript is organized as literature review study, which is presented in section 2.The proposed solution for the security and QoS enhancement in the VANET is presented in section 3 and section 4 presents the experimental study. The comparative analysis shows robust
performance of the proposed model. Finally, section 5 presents concluding remarks.

    This section represents brief discussion about recent techniques of secure communication in VANETs. This section includes various schemes such as authentication, key generation, key exchange, hash function and cryptography schemes. Ref. by [20] presented a robust approach for secure and QoS aware routing approach for VANET. According to this approach, Ant colony optimization scheme is used to find the optimal route based on the data traffic type.
    The ACO scheme helps to achieve the best fit solution for the given problem. Later,VANET-oriented Evolving Graph (VoEG) model is developed to measure the likelihoodamong vehicles. Ref. by [21] introduced 2FLIP approach to maintain the location privacy.
    This process uses message authentication code (MAC) and hash operations to induce two
    factor authentications. This approach uses biometric system for each driver to collect the
    traces of each driver where this biometric is verified using the tamper-proof device (TPD) is
    embedded in onboard unit (OBU). The one-way hash function is generating to secure the
    V2V and V2R communication. This mechanism secures the message using MAC generation
    and a hash function is re-generated for verification. Ref. by [22] introduced an authentication
    model for anonymous users based on the signature and message recovery. This approach uses
    batch operations to authenticate the multiple signatures, which help to reduce the
    authentication time. The main contributions of this approach are as follows: The ID based
    anonymous signature scheme is developed for authentication where, length of the packet will
    be shorter, resulting in reduced communication overhead. In the next stage, the message is
    recovered using signature which reduces the computation overhead by neglecting invalid
    signature messages. Finally, batch authentication is used where all the messages can be
    authentication at the same time. Bad mouthing and providing false information are serious
    issues in VANETs. Generally, reputation management schemes are used for this purpose but,
    they cannot handle the self-promoting attack and it may violate location privacy. To deal
    with these issues, Ref. by [23] presented privacy preserving and reputation management
    model to mitigate bad mouthing attacks. This work presents a service reputation to compute
    QoS of the user, if any user provides low QoS then it is identified as malicious node.
    Furthermore, this work focuses on location privacy by presenting the hidden-zone and kanonymity scheme. Ref. by [24] discussed that the current routing scheme will not ensure the
    on-time packet delivery due to, high dynamic nature of VANETs which affects the process of
    safety alert message. These safety messages require security to maintain the hassle free traffic

hence in this work a secure routing scheme VANSecis presented to avoid threats to the
network. This approach is based on trust management which identifies the false and
malicious nodes. Ref. by [25] presented Ad hoc On-demand Multipath Distance Vector
(AOMDV) routing algorithm. This algorithm provides minimum of three paths to route the
packets. However, AOMDV suffers from the lack of security schemes, cryptography and
intrusion detection schemes because of these issues this protocol is vulnerable to various
threats such as black holes and man-in-the-middle attack. Hence, this scheme introduces
secure and efficient AOMDV protocol for VANETs. The security is enabled by detecting the
malicious vehicles which are not authenticated and pose malicious behaviour. Furthermore,
best path is obtained using Route Reply (RREP) packet. Ref. by [26] focused on the data
security in VANETs and suggested that the secured data can be delivered using LEACH
protocol. Hence, in this work, authors considered the combination of LEACH protocol and
lightweight cryptographic model. For increasing security, the Random Firefly is used for
identifying the trustworthy vehicles in the considered network topology. After identifying the
reliable vehicles, the lightweight security and Hash function methods are used for securing
the information for transmission. Ref. by [27] presented Security Aware Fuzzy Enhanced
Reliable Ant Colony Optimization (SAFERACO) routing protocol to distinguish the
malicious and trustworthy nodes during communication. The misbehaving nodes are
discarded from the routing process. The user authentication plays an important role to
improve the security of VANETs. Several approaches are developed based on authentication.
Tan et al. [28] authentication based approach for increasing the security in VANETs. In this
work, authors introduced elliptic curve cryptography which is further improved by using
bilinear pairing. The vehicles which are in the defined range are selected and assigned a
group key for authentication. Later, the encrypted message is delivered to the corresponding
RSU which provides the vehicle priority and assessment information which helps to arrange
the route for the vehicles to deliver the message in the optimal period of time. Lu et al. [30]
introduced a trust and privacy model for improving the security in VANETs. This work
presents block chain based anonymous reputation system (BARS) for trust management. In
this work, certificate and revocation schemes are used based on the extended block chain
technology. Furthermore, a reputation management scheme is presented which uses historical
interaction of the vehicle and indirect opinions of other vehicles.

    This section presents the proposed model for secure and efficient communication in vehicular
    Ad-Hoc networks. The significant amounts of works have been carried out to improve
    communication performance but security remains a challenging task. Moreover, the dynamic
    network topology creates several challenging issues. Thus, user authentication and key
    management will be a tedious task to maintain the cure communication. This research work is
    focusing on key management and data security. The proposed model of GKMC organized as
    A. First of all, we deploy a Vehicular Ad-Hoc network and define the preliminary and initial
    assumptions related to the network.
    B. In the next phase, V2V, V2 and V2X communication protocol is presented where key
    management, authentication, key exchange modules are presented.
    C. Finally, the cryptography scheme is presented to secure the data packets.
    International Journal of Computer Networks & Communications (IJCNC) Vol.13, No.4, July 2021
    A. Preliminaries and Network Modelling
    The VANET architecture contains several components such as trusted authority (TA), road side
    units (RSUs), service provider (SP), and onboard unit (OBU) mounted vehicles as shown in
    figure 2. Each entity of network has assigned specific tasks. Generally, TA is considered as car
    manufacturer or transport management department. Trust authority is responsible for registering
    the RSUs and to generate public and private keys to authenticate each user. TA performs several
    computations hence we assume that enough storage is provided to TA along with adequate
    computation capability. Road Side Units (RSUs) are the infrastructures, which are deployed at
    the road intersection and road side which act as relays for V2I communication. Figure 3 shows
    required architecture of VANET for proposed system.

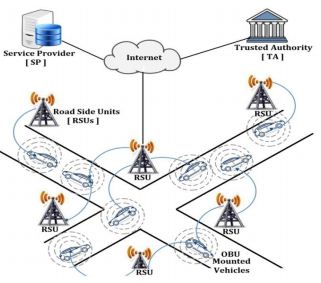

Fig 3: VANET Model

The communication between RSU and vehicle is performed using dedicated short-range
communications (DSRC) protocol. The main task of RSU is to verify the legitimacy of the
received message from vehicles [8].The service provider provides different types of application
to all vehicles. To provide an application services, the RSU receives the message from vehicles,
verifies its legitimacy and if the message is valid then forwarded to the application server for
providing the required service. The SA, TA and RSU can communicate through a safety cable
channel. Similarly, OBU is a wireless unit, which is installed on the vehicle with GPS and a small
device for short range communications.
B. Security Requirements
In VAETs, data security and privacy are considered as an important factor to develop the secure
VANET model. This work focuses on the following security requirements [28][29][30]:
 User authentication and message integrity: in this architecture, once the message is
transmitted to the receiver, then the receiver must ensure the message integrity and
validity by verifying the signatures.
 Vehicle identity protection: the actual vehicle identity is only known by the trusted
authority and the vehicles. This helps to maintain anonymity from other vehicles in the

Message traceability: during communication, if any bogus message is received by the
receiver, then TA should be able to track the original identity of the vehicle.
 Message stealing: during data communication of message transmission phase, the
protocol should be able the secure the high confidentiality message by avoiding message
stealing by attackers.
 Fake Message attack: the fake messages are disseminated to harm the network entities
hence the protocol should restrict the fake message circulation in the network.
 Fake identity: according to this attack the real identity of vehicle is forged and used for
concealing the information. Hence, the identity of vehicles should be anonymized to
prevent this attack.
Similarly, here it focus on achieving the solution for non-repudiation attack, replay attack and
DOS attack to develop a more robust and secure network architecture.
Hence, this work introduced a combined novel key management and data security approach for
VANETs. The proposed model is implemented in two fold manner where first of all key
management is performed and later, data encryption is applied. The proposed approach is denoted
as GKMC (Group Key Management & Cryptography Schemes).

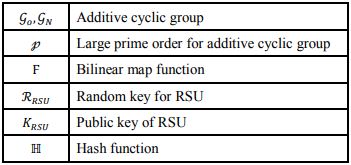

Table 1. Mathematical Properties

C. GKMC(Group Key Management & Cryptography Schemes)
(I) Group Key Management
This work first describes the bilinear map generation to incorporate the security functionality in
the network. Let us consider that 𝒢𝑜 and 𝒢𝑁 are the additive cyclic group with the large prime
order 𝓅. A map function Ϝ is computed as in equation 1.
Ϝ̂: 𝒢𝑜 × 𝒢𝑁 → 𝒢𝑁 (1)
In which it should satisfy the following conditions to generate the bilinear pairing.
 Bilinear: for all 𝑀, 𝑁 ∈ 𝒢𝑜 and for all 𝑎, 𝑏 ∈ 𝒵𝓅

, the function is Ϝ̂(𝑎𝑀, 𝑏𝑁) =
Ϝ̂(𝑎𝑀, 𝑏𝑁)
𝑎𝑏. Similarly, for all 𝑀, 𝑁, 𝑌 ∈ 𝒢𝑜 the bilinear map as in equation 2 and 3.

Ϝ̂(𝑀 + 𝑁 , 𝑌) = Ϝ̂(𝑀, 𝑌)Ϝ̂(𝑁, 𝑌) (2)
Ϝ̂(𝑀 , 𝑁 + 𝑌) = Ϝ̂(𝑀, 𝑁)Ϝ̂(𝑀, 𝑌) (3)

Non-degenerate: there exists that the 𝑀, 𝑁 ∈ 𝒢𝑜, there is Ϝ̂(𝑀 + 𝑁 , 𝑌) ≠ 1
 Computability: for all 𝑀, 𝑁 ∈ 𝒢𝑜efficient approach is present to compute the Ϝ̂(𝑀, 𝑁)
 Symmetric: As per equation C4 for all 𝑀, 𝑁 ∈ 𝒢𝑜
Ϝ̂(𝑀, 𝑁) = Ϝ̂(𝑁, 𝑀) (4)

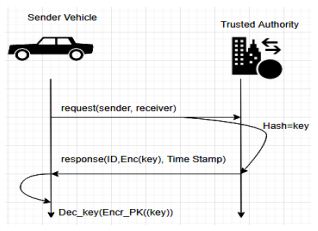

According to the proposed approach first, it represents the authentication process between RSU
and vehicle. The complete authentication process is divided into three phases as initialization,
authentication and distribution of group keys. The working process of these stages is described in
the following subsections.
I.a. Initialization
In the first step of proposed GKMC approach, we perform user registration and key allocation for
each vehicle in the network. In VANET architecture, a vehicle must be registered with the TA
then TA assigns secret information to the corresponding vehicle. During this process, the TA
stores driver information such as contact information, address and license plate number. Let us
consider that the 𝐺ℋ as cyclic additive group, 𝒬ℋ is the generator and unique vehicle id is
denoted as 𝑖𝑑. Here, we adopt the Hash function as 𝓀:{0,1}
∗ × 𝐺ℋ → 𝒵𝓅
∗ where 𝒵𝓅
∗ denotes the
nonnegative integer set which is less than the prime number 𝓅. Based on these assumptions, the
TA generates a secret key 𝑆𝑖𝑑 for each vehicle in the network. The key is given as in equation 5.
𝑆𝑖𝑑 = 𝒽(𝑖𝑑, 𝒬ℋ) (5)
The generated key is assigned to the appropriate vehicle after registration. The secret key for each
user/vehicle is stored in the TA’s key storage dataset. Simultaneously, the TA selects a random
integer to assign the private key for RSU. This random number is selected as ℛ𝑅𝑆𝑈 ∈ 𝒵𝓅

. Let 𝐺1
be an additive cyclic group of order 𝑞 generated by 𝑃. Thus, the RSU public key can be
computed as in equation 6.
Here, RSU public key, generator 𝑃, hash function 𝓀 and 𝐺1 will be published to all devices
whereas the RSU private secret key ℛ𝑅𝑆𝑈 is kept secret during this process. This process is used
for registering the vehicle. Let us assume that the registered vehicle is entering the range of RSU.
If that vehicle demands for any service from the VANET, then key assignment is the necessary
task. This vehicle 𝑣 selects a partial private key as 𝑅𝑣 ∈ 𝒵𝓅

, and the corresponding partial public
key is given as in equation 7.
𝑄𝑣 = ℛ𝑣𝑃 (7)
Where 𝑃 is the generator, using these parameters service request, public key and vehicle id are
delivered to the corresponding RSU which are arranged as 〈𝑆𝑒𝑟𝑣𝑖𝑐𝑒𝑅𝑒𝑞𝑢𝑒𝑠𝑡,𝑄𝑣,𝑖𝑑〉. Once the
partial public key 𝑄𝑣 is generated, the RSU request to TA for providing the secret key 𝑆 for
vehicle 𝑖𝑑 i.e. RSU request to TA for 𝑆𝑖𝑑. At this stage, we generate a secure hash function as
∗ × 𝐺1 → 𝐺1. With the help of this, the partial keys can be generated as in equation 8.
𝑄𝑖𝑑 = ℍ(𝑖𝑑,𝑄𝑅𝑆𝑈) (8)
Based on the secret key, partial public key and secret key of RSU, a certificate is delivered to the
vehicle as in equation 9.

𝐶 = 𝑄𝑖𝑑𝑆𝑖𝑑ℛ𝑅𝑆𝑈 (9)
Thus, the partial private key can be derived as in equation 10.
𝑅𝑢 = 𝑅𝑅𝑆𝑈𝑄𝑖𝑑 (10)
Now, the public key can be presented as 〈𝑄𝑣,𝑖𝑑〉 and the private key set is given as 〈ℛ𝑣,ℛ𝑢

I.b. Authentication
In this process, we present authentication process for the vehicle. We assume that at a time 𝑡, the
vehicle starts using the road message service. The partial public key and time combine as in
equation 11.
𝑄1 = 𝑄𝑣𝑡 = ℛ𝑣𝑃𝑡 (11)
Moreover, a cyclic group 𝐺2 is generated with the prime order 𝑠 and the bilinear operator is given
as Ϝ̂:𝐺1 × 𝐺1 → 𝐺2. Here, the intermediate value of partial public key can be obtained as in
equation 12.
𝑄𝑖𝑑 = ℍ(𝑖𝑑,𝑄𝑅𝑆𝑈) (12)
Where 𝑖𝑑 is the vehicle id, and 𝑄𝑅𝑆𝑈 is the public key of RSU which are already known to the
vehicle. Along with this, we generate two important parameters 𝛼 and 𝛽for authentication as in
equation 13.
𝛼 = Ϝ̂(𝑄𝑅𝑆𝑈,𝑄𝑖𝑑)
𝛽 = ℎ(𝑡 ∥ 𝛼, ℛ𝑖𝑑)
Where ℛ𝑖𝑑 is the secret key of vehicle which is allocated during initialization phase. Based on
these parameters, we generate the final signature as in equation 14.
𝑈 = ℛ𝑢 + 𝑄𝑖𝑑ℛ𝑣𝑡𝑣 (14)
From here, the vehicle sends the authentication request as 〈𝑈, 𝑖𝑑,𝑡, 𝑣〉 and RSU performs the
verification process whether 𝛼 =
. In order to deliver the message, the following
verification condition must be satisfied as in equation 15.
= Ϝ̂(𝑃,𝑄𝑖𝑑, ℛ𝑅𝑆𝑈) = Ϝ̂(ℛ𝑅𝑆𝑈, 𝑃,𝑄𝑖𝑑) = Ϝ̂(ℛ𝑅𝑆𝑈,𝑄𝑖𝑑) (15)
After satisfying this condition, the authentication phase is completed.
I.c. Key Distribution
In this phase, the generated group keys are distributed to each legitimate vehicle. This key
assignment is done by TA. Let us assume that the secret ℰ ∈ 𝒵𝓅

is randomly selected by TA, and
then RSU computes as in equation 16.
𝕎 = ℰ𝑄𝑣𝑇 (16)

𝔽 = ℎ(𝕎 ∥ 𝑣, ℛ𝑢
Here RSU is capable to generate the partial public ℛ𝑢as described before. Now,the 〈𝕎,𝔽, 𝑇〉
iscomputed by RSU and transmitted to vehicle. Here our aim is to combine the secret key with
the current time stamp 𝑇. In this process, the vehicle compares the value of 𝐹 with stored values
and if it is found valid then secret is derived as in equation 17.
𝑁 = 𝕎𝑇
−1 = 𝑄𝑣𝑇ℰ𝑇
= ℰ𝑃
Hence, the final group can be achieved as in equation 18.
𝐺𝑘 = ℎ(𝑁) = ℎ(ℰ𝑝) (18)
(II) Data encryption and decryption
This phase presents the data encryption and decryption approach to provide secure data
exchange. According to this process, the first task is to secure the data using encryption key
which is used by receiver to encrypt and decrypt the data by sender and receiver. This phase uses
the state value(𝑠𝑡𝑎𝑡𝑒) of receiver vehicle as an encryption key. To maintain the location privacy,
this methodology uses hash state value before transmitting to the corresponding vehicle.
II.a. Key Generation
This complete process of data encryption and process of key generation is shown in figure 4

Fig 4: Data encryption process and key generation

As shown in Figure 4, complete process of key generation is completed by using following steps:
(a) The sending vehicle 𝑣𝑠
sends the message request (𝑀𝑒𝑠𝑠𝑎𝑔𝑒𝑟𝑒𝑞) of receiver vehicle
request to the trusted authority where public key is used for encrypting the message
request. This is expressed as in equation 19.
𝐶𝑖𝑝ℎ𝑒𝑟𝑉𝑠𝑇𝐴 = 𝐸𝑛𝑐𝑟𝑇𝐴𝑝𝑘(𝕊𝐼𝑑 + ℝ𝐼𝐷) (19)

As given in eq. 15, the public key of TA is used for encrypting the sender vehicle id 𝕊𝐼𝑑
and receiver vehicle ℝ𝐼𝐷
(b) The trusted authority decrypts the cipher text of eq. (15) using its own secret key as in
equation 20.
𝐷𝑒𝑐𝑀𝑒𝑠𝑠𝑎𝑔𝑒 = 𝐷𝑒𝑐𝑟𝑇𝐴𝑠𝑘(𝐶𝑖𝑝ℎ𝑒𝑟𝑉𝑠𝑇𝐴) (20)
(c) This decryption process provides the state values of receiver vehicle and hashes these
values. Hash values are considered as the key for sender vehicle to encrypt the data. This
is denoted as in equation 21.
𝑘𝑒𝑦 = 𝐻𝑎𝑠ℎ(𝑠𝑡𝑎𝑡𝑒𝑟1, 𝑠𝑡𝑎𝑡𝑒𝑟2, … . 𝑠𝑡𝑎𝑡𝑒𝑟𝑁) (21)
(d) TA uses sender public key to encrypt the key, the encrypted data and time stamps are
send to the sender vehicles from TA. The final received message from TA is denoted as
in equation 22.
𝐶𝑖𝑝ℎ𝑒𝑟𝑇𝐴𝑉𝑠 = 𝐸𝑛𝑐𝑟𝑉𝑠𝑝𝑘(𝐼𝐷 + 𝑘𝑒𝑦 + 𝑇𝑖𝑚𝑒𝑠𝑡𝑎𝑚𝑝) (22)
(e) After receiving the data from (18) sender vehicle uses own private key to decrypt this
data and gets the real key for further encryption along with the time stamps. This is
computed as in equation 23.
𝑇𝑖𝑚𝑒𝑠𝑡𝑎𝑚𝑝 + 𝑘𝑒𝑦 = 𝐷𝑒𝑐𝑟𝑉𝑠𝑝𝑘(𝐶𝑖𝑝ℎ𝑒𝑟𝑇𝐴𝑉𝑠
) (23)
II.b. Data encryption
Before transmitting the data from sender vehicle to receiver vehicle we encrypt the data using
time stamp and secret key to provide the data security during transmission. This encryption
format is given as in equation 24.
𝑀𝑒𝑠𝑠𝑎𝑔𝑒 = 𝑇𝑖𝑚𝑒𝑠𝑡𝑎𝑚𝑝 + ℝ𝐼𝐷 + 𝐸𝑛𝑐𝑟𝑘𝑒𝑦(𝐼𝐷 + 𝑑𝑎𝑡𝑎) (24)
This encrypted data is transmitted to the receiver vehicle where data decryption is performed
through repeal mechanism.
II.c. Data Decryption
The receiver vehicle receives the encrypted data packet as cipher text along with the time stamp.
At the receiver end, we perform the data decryption to achieve the original data. The actual
process of data decryption is shown in figure 5.

Fig 5. Data decryption process

The current time stamp is greater than the previous time stamp hence we use decryption key as its
previous time stamp history. Figure 4 shows the decryption process with required parameters.
This decryption is performed using following steps:
(a) Receiver vehicle (𝑣𝑟
) sends the received cipher text to TA about status value from where
it receives the cipher text as in equation 25.
𝐶𝑖𝑝ℎ𝑒𝑟𝑉𝑟𝑇𝐴 = 𝐸𝑛𝑐𝑟𝑇𝐴𝑝𝑘 (ℝ𝐼𝐷 + 𝑇𝑖𝑚𝑒𝑠𝑡𝑎𝑚𝑝) (25)
(b) After receiving the cipher text, the TA decrypts the data using its own secret key and the
decrypted message is achieved as in equation 26.
𝐷𝑒𝑐𝑀𝑒𝑠𝑠𝑎𝑔𝑒 = 𝐷𝑒𝑐𝑟𝑇𝐴𝑠𝑘 (𝐶𝑖𝑝ℎ𝑒𝑟𝑉𝑠𝑇𝐴) (26)
(c) In the next step, historical state values are achieved and hashed to generate the key for
further encryption as
𝑘𝑒𝑦 = 𝐻𝑎𝑠ℎ(𝑠𝑡𝑎𝑡𝑒𝑟1, 𝑠𝑡𝑎𝑡𝑒𝑟2, … . 𝑠𝑡𝑎𝑡𝑒𝑟𝑁) . (27)
(d) Now the pubic key of receiver vehicle is used to encrypt the receiver ID, key and its time
stamps as in equation 28.
𝐶𝑖𝑝ℎ𝑒𝑟𝑇𝐴𝑉𝑟 = 𝐸𝑛𝑐𝑟𝑉𝑟𝑝𝑘 (ℝ𝐼𝐷 + 𝑘𝑒𝑦 + 𝑇𝑖𝑚𝑒𝑠𝑡𝑎𝑚𝑝) (28)
(e) In next step, the 𝑣𝑟 uses private key to decrypt the cipher text and achieves the real key
for decryption as in equation 29.
𝑇𝑖𝑚𝑒𝑠𝑡𝑎𝑚𝑝 + 𝑘𝑒𝑦 = 𝐷𝑒𝑐𝑟𝑉𝑟𝑝𝑘 (𝐶𝑖𝑝ℎ𝑒𝑟𝑇𝐴𝑉𝑟
) (29)
(f) Finally, this key is used for decrypting the cipher text and original message is received as
in equation 30.
𝐷𝑒𝑐𝐷𝑎𝑡𝑎 = 𝐷𝑒𝑐𝑘𝑒𝑦(𝑀𝑒𝑠𝑠𝑎𝑔𝑒)
International Journal of Computer Networks & Communications (IJCNC) Vol.13, No.4, July 2021

    This section shows the experimental analysis using proposed approach. The obtained
    performance is compared with the existing techniques. This research work is mainly focused to
    ensure the security of VANET.
    4.1. Achieved Security Issues
    These proposed works achieve the following security issues such as:
     Authentication: in this work, authentication is an important task to avoid the attacker
    nodes to join the network. Later, Hash values are obtained from the key and an
    authentication process is performed after achieving the RREP message from the
    communicating node.
     Message confidentiality: this work applies symmetric cryptography where public and
    private secrete keys are generated from the RSA key generation method.
     Location privacy and anonymity: this security aspect is obtained by generating the
    Hash of the location of the vehicle and vehicle ID.
    4.2. Performance Measurement Parameters
    This section presents the experimental analysis using proposed approach. The performance of
    proposed approach is measured in terms of packet loss, throughput, packet delivery, end-to-end
    delay, average message delay and message loss ratio. The simulation parameters are given in
    table 2.

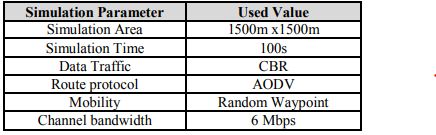

  2. Table 2. Simulation Parameters

According to table 2, proposed approach is considered total of 100 nodes which are deployed in
the 1500m x1500m area. The vehicles follow the Random Waypoint model with the constant bit
rate data traffic. Total 10 nodes are considered as faulty node which is responsible for various
attacks such as Denial-of-service, black hole and badmouthing etc. In this work, we measure the
performance of proposed approach under various attacks to show the robust performance. The
obtained performance is measured using following performance metrics:
(a) Packet Loss Ratio: is measured by taking the ratio of the dropped packets which are
generated from the source but not delivered to the destination as in equation 31.
𝑃𝑆𝑒𝑛𝑡 − 𝑃𝑟𝑒𝑐𝑒𝑖𝑣𝑒𝑑
× 100 (31)
International Journal of Computer Networks & Communications (IJCNC) Vol.13, No.4, July 2021
Where 𝑃𝑆𝑒𝑛𝑡 denotes the number of sent data packets, 𝑃𝑟𝑒𝑐𝑒𝑖𝑣𝑒𝑑 denotes the received
number of data packets.
(b) Throughput: is measured by computing the total of bytes received successfully in one
communication session. This is computed as in equation 32.
𝑇ℎ𝑟𝑜𝑢𝑔ℎ𝑝𝑢𝑡 =
𝑃𝑆𝑒𝑛𝑡 − 𝑃𝑟𝑒𝑐𝑒𝑖𝑣𝑒𝑑
× 100 (32)
(c) Packet delivery ratio: this is measured by taking the ratio of delivered packet to the
destination which are generated from source nodes. It can be calculated as in equation 33.
× 100 (33)
(d) Average end-to-end delay: this is the time take by the data packet to reach to the
destination. During this phase, the route discovery, data retransmission and propagation
time etc. are considered. This is computed as in equation 34.
𝐷𝑒𝑙𝑎𝑦 =
∑ (𝐷𝑖 − 𝑠𝑖
× 100 (34)
Where 𝐷𝑖 denotes the 𝑖
𝑡ℎ packet receiving time, 𝑠𝑖 denotes the sending time for 𝑖
𝑡ℎ packet
and 𝑃𝑠𝑢𝑐𝑐𝑒𝑠 denotes the number of successfully transmitted packets.
(e) Average message delay: this is the measurement of total delay occurred to deliver the
message from one source to destination. This can be computed as in equation 35.
𝐴𝑣𝑒𝑟𝑎𝑔𝑒𝐷𝑒𝑙𝑎𝑦 =
∑ ∑ (𝑇𝑠𝑖𝑔𝑛
𝑖𝑚 + 𝑇𝑡𝑟𝑎𝑛𝑠 𝑖𝑚𝑅𝑆𝑈 + 𝑇𝑣𝑒𝑟𝑖𝑓𝑦 𝑖𝑚𝑅𝑆𝑈) 𝑀𝑠𝑒𝑛𝑡
∑ 𝑀𝑠𝑒𝑛𝑡
𝑁𝑣 𝑖
Where 𝑁𝑣 is the total number of vehicles, 𝑀𝑠𝑒𝑛𝑡
is the total number of packet sent by vehicle
𝑖𝑚 is the time required to sign a message by vehicle, 𝑇𝑡𝑟𝑎𝑛𝑠 𝑖𝑚𝑅𝑆𝑈 is the time require to transmit the message 𝑚 to RSU and 𝑇𝑣𝑒𝑟𝑖𝑓𝑦 𝑖𝑚_𝑅𝑆𝑈 is the time required for authentication. Similarly, we
measure the message loss ratio as in equation 36.
𝑀𝑒𝑠𝑠𝑎𝑔𝑒𝑙𝑜𝑠𝑠𝑟𝑎𝑡𝑖𝑜 =
∑ 𝑀𝑠𝑒𝑛𝑡
𝑁𝑣 𝑖
𝑖=1 − ∑ 𝑀𝑟𝑒𝑐
𝑅𝑆𝑈𝑛 ∗ ∑ 𝑀𝑠𝑒𝑛𝑡
𝑁𝑣 𝑖
4.3. Comparative Performance Analysis
This section shows the comparative experimental analysis where, performance of the proposed
approach is compared with the existing techniques by varying the number of vehicles, speed and
malicious nodes in the network.
International Journal of Computer Networks & Communications (IJCNC) Vol.13, No.4, July 2021
4.3.1 Varying vehicles with fixed Speed
In this phase, performance is evaluated by varying the number of vehicles ranging from 20 to 100
with 10 numbers of malicious nodes present in the network and the speed of vehicles is fixed in
the range of 70-72kmph. First, it computes the packet loss ratio for this experimental setup and
compared the performance with AOMDV [25] and SE-AOMDV [25] protocols.
a. Packet loss ratio: the comparative performance in terms of packet loss ratio is shown in
figure6. According to this experiment, the existing protocols AOMDV [25] and SEAOMDV [25] [25] drop the packet due to malicious nodes in the network. However, the
existing protocols suffer from the malicious nodes and drop the packets, whereas,
proposed approach shows robust performance.

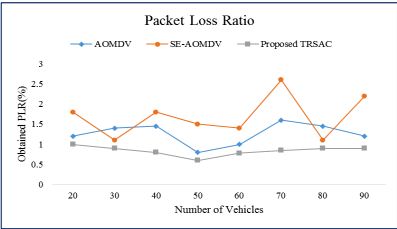

Fig 6. Packet Loss ratio performance

The average packet loss rate is obtained as 1.26%, 1.68% and 0.84% using AOMDV [25],
SE-AOMDV [25], and Proposed approach. This experiment shows that the proposed approach
achieves 0.66% and 0.49% improvement when compared with the AOMDV [25] and
SE-AOMDV [25] methods.
b. Throughput performance: in the next phase of the proposed approach, it measures the
throughput performance for same experiment setup. The obtained performance is
depicted in figure 7. The more number of vehicles creates issues in link stability and
frequent selection of relay nodes creates a complex environment for communication
leading towards the decreased throughput, whereas, proposed approach helps to main the
network reliability and reduces packet drops.

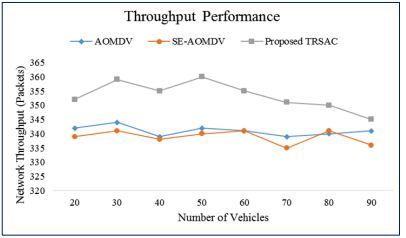

Fig 7. Througput performance

The average network throughput performance is reported as 341, 338.875 and 353.375 using
AOMDV [25], SE-AOMDV [25] and proposed approach.
c. End-to-End Delay: the comparative performance in terms of end-to-end ratio is shown
in figure8. Similarly, we compute the end-to-end delay performance for varied number of
vehicles for the considered experimental scenario.

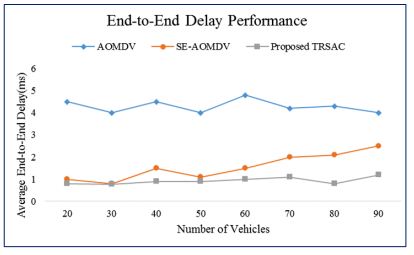

Fig 8. End-to-End delay performance

This experiment shows that the average end-to-end delay is obtained as 4.28ms, 1.56ms, and
1.1ms using AOMDV [25], SE-AOMDV [25] and proposed approach.

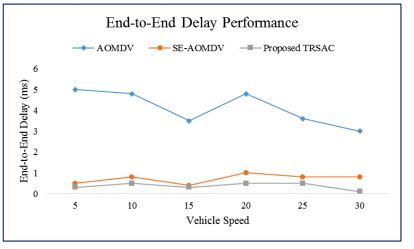

4.3.2 Varying speed with fixed vehicles
In this sub-section, experimental analysis considers 40 vehicles with a varied speed ranging from
5-30ms. The experimental study presented in AOMDV [25], SE-AOMDV [25]. This experiment
shows that the increased vehicle speed causes packet loss.

a. Packet loss ratio: first, it computes the packet loss ratio and compares the achieved
performance with existing techniques. The obtained packet loss performance is depicted
in figure 9.

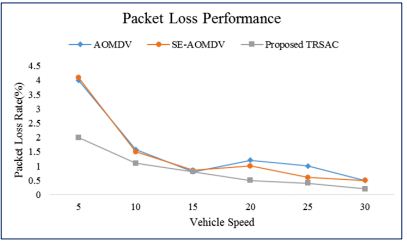

Fig 9. Packet Loss Performance

The proposed approach takes advantage of link connectivity and efficient relay node
selection to reduce the packet loss. According to this experiment the average packet loss
is obtained as 1.51%, 1.42% and 0.83% using AOMDV, SE-AOMDV and proposed
b. Throughput performance: similarly, it measures the system throughput for varied
speed of vehicle and compared the obtained performance with existing technique. The
achieved performance is depicted in figure 10.

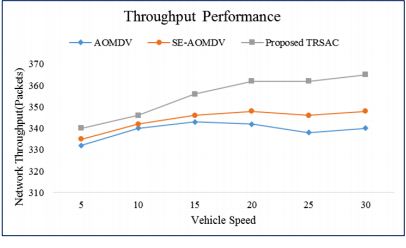

Fig 10. Network Throughput Performance

According to this experiment the average Network Throughput Performance is obtained as 1.27%, 1.38% and 1.62% using AOMDV, SE-AOMDV and proposed approach, c. End-to-End delay: later, experimental analysis has been done for end-to-end delay computation. The proposed approach uses light weight computations and less computational cost helps to achieve the less delay. The obtained performance is
compared as depicted in figure 11.

Fig 11. End-to-End delay performance

According to this experiment, the average end-to-end delay performance is obtained as 4.11ms,0.71ms, and 0.36ms using AOMDV, SE-AOMDV, and proposed approach. d. Packet delivery rate: in order to show the robust performance of proposed approach we extend the experimental study with SUMO mobility model where 100-900 vehicles are considered. The performance is measured in terms of average packet delivery and average delay for varied number of vehicles. Figure 12 shows a comparative performance in terms of packet delivery. As discussed before, the proposed approach archives better throughput due to link connectivity and optimal relay selection.

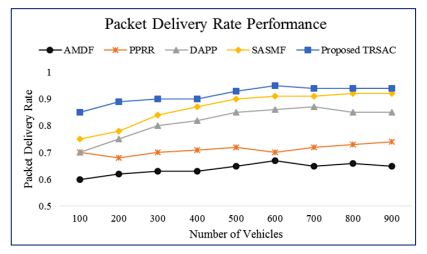

Fig 12. Packet delivery performance

Figure 11 shows a comparative performance where the packet delivery performance is obtained as 0.64, 0.71, 0.81, 0.86, and 0.91 using AMDF [32], PPRR [33], DAPP [31],SASMF [34] and Proposed approaches.


This proposed approach focused on improving the VANET by incorporating key management and data cryptography process. According to the proposed approach first, it introduces a novel key management scheme where any new upcoming vehicle is registered with Trusted Authority (TA) and authenticated to perform the communication. This helps to maintain security and reduces outsider attacks. In the next phase, introduced Elliptic curve cryptography scheme to encrypt and decrypt the data during vehicle communication. Hence, the proposed approach provides better security. Moreover, the proposed approach uses lightweight computations which help to reduce the computational overhead of the network. The comparative study is carried out which shows the improved performance using proposed approach.


The authors declare no conflict of interest.


[01] Liu, J., Wan, J., Wang, Q., Deng, P., Zhou, K., &Qiao, Y. (2015). A survey on position-based routing for vehicular ad hoc networks. Telecommunication Systems, 62(1), 15–30. doi:10.1007/s11235-015-9979-7.
[02] Tomar, R., Prateek, M., &Sastry, G. H. (2016). Vehicular adhoc network (VANET)-an introduction. International Journal of Control Theory and Applications, 9(18), 8883-8888.
[03] Zhang, W., Xiao, X., Wang, J., & Lu, P. (2018, November). An improved AODV routing protocol based on social relationship mining for VANET. In Proceedings of the 4th International Conference on Communication and Information Processing(pp. 217-221). ACM.
[04] Yang, X., Sun, Z., Miao, Y., Wang, N., Kang, S., Wang, Y., & Yang, Y. (2015, March). Performance Optimisation for DSDV in VANETs. In 2015 17th UKSim-AMSS International Conference on Modelling and Simulation (UKSim) (pp. 514-519). IEEE.
[05] Abdelgadir, M., Saeed, R. A., &Babiker, A. (2017). Mobility routing model for vehicular Ad-Hoc networks (VANETS), smart city scenarios. Vehicular Communications, 9, 154-161.
[06] Kadadha, M., Otrok, H., Barada, H., Al-Qutayri, M., & Al-Hammadi, Y. (2017, June). A streetcentric QoS-OLSR protocol for urban vehicular ad hoc networks. In 2017 13th International Wireless
Communications and Mobile Computing Conference (IWCMC) (pp. 1477-1482). IEEE. [07] Silva, R., Lopes, H. S., & Godoy, W. (2013, September). A heuristic algorithm based on ant colonyoptimization for multi-objective routing in vehicle ad hoc networks. In 2013 BRICS Congress on Computational Intelligence and 11th Brazilian Congress on Computational Intelligence (pp. 435-440). IEEE.
[08] Taherkhani, N., & Pierre, S. (2012, October). Congestion control in vehicular ad hoc networks using meta-heuristic techniques. In Proceedings of the second ACM international symposium on Design and analysis of intelligent vehicular networks and applications (pp. 47-54). ACM.
[09] Aadil, F., Bajwa, K. B., Khan, S., Chaudary, N. M., &Akram, A. (2016). CACONET: ant colony optimization (ACO) based clustering algorithm for VANET. PloS one, 11(5), e0154080.
[10] Jindal, V., &Bedi, P. (2018). An improved hybrid ant particle optimization (IHAPO) algorithm for reducing travel time in VANETs. Applied Soft Computing, 64, 526-535.
[11] Li, G., Ma, M., Liu, C., &Shu, Y. (2017). Adaptive fuzzy multiple attribute decision routing in VANETs. International Journal of Communication Systems, 30(4), e3014.
[12] Bagherlou, H., &Ghaffari, A. (2018). A routing protocol for vehicular ad hoc networks using simulated annealing algorithm and neural networks. The Journal of Supercomputing, 1-25.
[13] Sampigethaya, K., Huang, L., Li, M., Poovendran, R., Matsuura, K., &Sezaki, K. (2005).CARAVAN: Providing location privacy for VANET. Washington Univ Seattle Dept of Electrical Engineering.
[14] Sampigethaya, K., Li, M., Huang, L., &Poovendran, R. (2007). AMOEBA: Robust location privacy scheme for VANET. IEEE Journal on Selected Areas in communications, 25(8), 1569-1589.


Mr. Mahabaleshwar Kabbur, research scholar of REVA University. He has obtained his Master’s degree in Computer Applications (MCA) and research degree in Master of Philosophy in computer science (M.Phil). He has 14 years of experience in teaching and 03 years of experience in research. He is pursuing his doctoral research on “Security on Wireless networking for VANET”. He is published 12 research articles in UGC approved international journals and presented 15 articles in various National and International conferences. His specializations and research interests include Network Security,Content-Based Image Retrieval Techniques & IoT.

Dr. Anand R, Assistant Professor in School of Computer Science & Applications REVA University holds doctoral degree in Computer Science from SCSVMV University, Tamil Nadu. He has completed B. Sc (Computer Science) from Madurai Kamaraj University, Tamil Nadu and M.Sc (Computer Science) from Manonmanium Sundarnar University, Tamil Nadu. He has 18 Years of experience in teaching and 10 years of experience in research. He has published 11 research articles in various International / National Journals and conferences and also his 02 Patents got published on topic “Anti-Intrusion Device for Computer Network” Application No: 201941013025 and “Vital Sign Monitoring System” Application Number Application No: 201941030703. His research areas include Data mining,Software engineering, Cloud security and Cryptography.

Dr. V. ARUL KUMAR, Assistant Professor in School of Computer Science &Applications REVA University holds doctoral degree in Computer Science from Bharathidasan University-Tamil Nadu. He has completed B. Sc (Applied Sciences –Computer Technology), M.Sc (Applied Sciences – Information Technology) from K.S.R College of Technology and M.Phil in Computer Science from Bharathidasan University, Tamil Nadu. He has 6 Years of experience in teaching and 8 years of experience in research. He has qualified in State Eligibility Test (SET) conducted by other Teresa Women’s University. He has published 24 research articles in various International / National Journals and conferences. His research areas includes data Mining, cloud security and cryptography.

Leave a Reply

Fill in your details below or click an icon to log in: Logo

You are commenting using your account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s


This entry was posted on August 13, 2021 by .
%d bloggers like this:
