Multi-Layer Classifier For Minimizing False Intrusion

Shaker El-Sappagh, Ahmed saad Mohammed, Tarek Ahmed AlSheshtawy

Faculty of Computers & Informatics, Benha University, Egypt.

Abstract


Intrusion detection is one of the standard stages to protect computers in network security framework from several attacks. False alarms problem is critical in intrusion detection, which motivates many researchers to discover methods to minify false alarms. This paper proposes a procedure for classifying the type of intrusion according to multi-operations and multi-layer classifier for handling false alarms in intrusion detection. The proposed system is tested using on KDDcup99 benchmark. The performance showed that results obtained from three consequent classifiers are  better than a  single classifier. The accuracy reached 98% based on 25 features instead of using all features of KDDCup99 dataset.

Keywords


Intrusion detection, multi-layer classifier, KDD CUP 99, False Alarms

1. Introduction


Nowadays,  communication technology is widely  used  for  communication and transmission purposes in many applications working on  different  platform. This captures the attention towards network security.  In this technology, the security becomes a challenging problem and vulnerable for intrusions. Subsequently, it is necessary to utilize a system for network security such as the intrusion detection systems (IDSs) [1, 2]. Network  Intrusion  Detection systems had become the  most  important  components  of  recent  network  infrastructure  due  to  the  effects of  fast  security  threats  in  today’s  computer  network. Intrusion detection system is generating a good  number of alarms; however, it deployed algorithmic procedures to reduce false positives [3]. The  great number of false  positive  alarms  is  made it difficult for security analyst to recognize successful  attacks and to take reconditioned  actions for such  threat.   Alarms contain  a  high  rate  of  unsuccessful  alarms recognized  as  false alarms which demand estimation to  recognize  and reduce the  unsuccessful  ones.  These are raised once  an  intrusive incident detected and presenting the security analyst the chance to react against any such  threat  [4]. Data Mining (DM) and machine leaning are commonly utilized within the scope of intrusion detection to find  the hidden patterns of intrusions and their  connection  surrounded by each other .  DM can be applied to understand from traffic data utilizing the target learning procedures to discover intrusion models of evaluation learning procedures to recognize dubious actions [5].

Classification is one of  DM categorization that assigns topics to one of  several classes [6].The huge issue in IDSs that the presence of huge number of false alarms; this issue motivate several experts to discover the solution for minifying false alarms.This research will be suggesting multi-classifier  for handling this issue.

In this research, a new multi-classifier is suggested for improving the minifying false alarms in intrusion detection system. The basic idea is to use multi classifiers instead of using one classifier.  The remaining of this paper is organized as follows: In section 2, we present previous works of applying classification techniques for intrusion detection. Section 3, we present the description of KDDCUP99 dataset. Section 4, we discuss the attacks type of KDDCUP99. Section 5, we display the performance measure of the intrusion detection system. Section 6, we explain all steps of the  proposed system, Section 7, we display the results that are obtained from the  proposed system and finally in Section 8, we provide the important conclusions of the proposed system

2. Previous Work


Many classification techniques are used for classifying intrusion detection datasets. Classifiers have been suggested and developed to reduce false alarm of intrusion detection in the scope of network security based on different ideas. Recently papers in this scope can be summarized as follows:  Aggarwal and Sharma [7], selected a set of classification algorithms on the basis of their effectiveness according to speed and,  the ability of handling large data-set and after that, for KDD’99 data-set simulated 10 selected existing classifiers according to Weka tool. Manju [8], analyzed the performance of the  Intrusion Detection System using various classification approaches. The objective of this paper was to analyze and predict the network attacks by classifying them as normal and abnormal, and for implementing and measuring the efficiency of this system, the standard KDD99 benchmark data-set has been chosen. Gupta. et al.[9], implemented a variety of data mining procedures which consisted of linear regression and K-means for automatic generation of rules for classifying network activities. A comparative study of those algorithms for detecting intrusions has been made based on the  KDD99 data-set as well. Liyu Duan  and Youan Xiao [10] large volume of the data and unbalanced data ,intrusion data were inevitable obstacles. So, to solve those issues utilizing fuzzy c-means procedure to reconstruct feature vectors according to central points.  This paper shows deep learning procedure for intrusion detection, which implemented in GPU-enabled TensorFlow and evaluated utilizing  the KDD 99 dataset. Osamah et al [12] in his paper, introduced learning procedure for intrusion detection according to tree calculation on the KDD-99.

3. KDDCup99 dataset


In order to apply the proposed mechanism, the  KDDCup99 dataset will be used as the  standard dataset. KDDcup99 data-set has been considered the point attraction for numerous researchers in  the domain of intrusion detection system. It has been most widely used for evaluating  IDS.  The  10%  of  KDDCup99  dataset is  the original data-set that includes  494,020 records as  showed  in Figure 1 .Every record includes forty-one features with either  normal  or  abnormal  class  with  one  fixed attack such as Dos, Probe, U2r, R2l as shown in Table 1  [13],[14].




Figure 1. Sample of 10% Kddcup99 in Text Format

Table 1: Num of Records and Attack category of KDD’99 Dataset


Features of KDD’99 Dataset can be  labeled into following:

  • Standard features: standard features consists of whole attributes that can be taked from a TCP/IP link. Some of these features guiding to potential lateness in detection [15].
  • Traffic features: Traffic features consists of features  that are calculated with related to a window period and is splitted into features of same  service and the same host (time-based features). However,  there  are  several slow  probing  attacks  that  scan  the  hosts  (or ports)  using a much larger  time  interval  than  2    To fix this issue, these features are recomputed but according to the link window of 100 links rather than a period window of two seconds(based traffic features) [15].
  • Content features: To detect  R2L and U2R attacks ,  need Content features to be fit  to look for dubious attitude in the data [16].

Table 2: The No. Attributes of KDDCUP99

4. Attacks Type Of Kddcup99


Attacks occur into one of the following types [17]:

  1. User to Root  attack :  It is a type of  utilizing  that the intruder  begins out by accessing the account of current client on the system (probably acquired by guessing password, etc).
  2. Remote to local attack: This happens in the case where an intruder who are capable of sending packets to  the  machine  is  exploited  some vulnerability  for gaining local access as the that machine’s user
  3. Denial of  Service attack :  It  is an thread where the intruder  creates some of the space resources as well  crowded to handle legal requests or refuse legal  users access to a machine.
  4. Probing attack: It is attempting  to  gain  information  concerning a network  of  computers  for  the  obvious  aim to circumvent its security controls.
  1. Performance Measure Of Intrusion Detection System

The performance of classifier can be estimated by using various procedures according to the following criteria [18]:

  • True positive (TP): Number  of  attack  is  correctly  identified attack event.
  • True negative (TN): Number of normal is correctly identified normal event.
  • False positive (FP): Number of normal is incorrectly identified attack event.
  • False negative  (FN): Number of attack is incorrectly identified normal. Table 3 displays the confusion matrix.

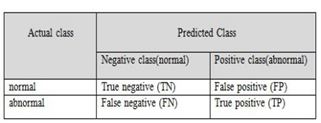

Table3: Confusion Matrix


  • False Alarm Rate (FAR): It is the proportion of the rate samples which are incorrectly  identified  asn attack  to  the  overall  samples  of  normal behavior as shown in equation 1.

FAR= FP/ (TN+FP)                              (1)

  • Sensitivity: It is awarded an indication of the attack behavior  that is correctly specified as shown in equation 2.

Sensitivity=TP/(TP+FN)                       (2)

  • Specificity (SPC):  It is awards an indication of  the normal  behavior that  is specified  correctly as shown in equation 3

Specificity  = TN/ (FP+TN)      (3)

6. The Proposed System

Multi-layer classifier can be comprised into three layers. The first layer will detect the abnormal  from  normal  traffic using naïve Bayes,  the  second  layer will classify the abnormal activity into 4 classes of attack and normal  activity using neural network (backpropgaion),  while the  last  one  is to classify 4 classes of attack into  23 subclass and  normal activity using Decision Tree. The outcomes  of  the Multi-layer classifier are  evaluated  in  testing  stages. The general structure of the Multi-layer classifier of classifying intrusion detection is demonstrated  in  details as shown in figure 2.

The  proposed  of  multi-layer classifier  is  training  and  testing based  on  KDDcup99  dataset, this work have  been  used  the  whole dataset about 494,020 records which include normal behavior  samples and  attack types.  Selected training data is about 329,510 records while the testing data is 164,510.  To  evaluate  the  proposed  system  cross  validation  will  be  used  by splitting  the  training  and  testing  data  in  k  times. Table 4 displays the type of classes, which are used in dataset.

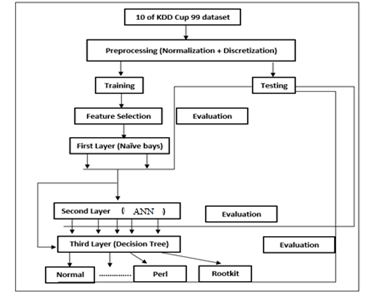

Fig 2: General Structure of the Multi-layer classifier

Table 4: Description of Category Traffic Dataset


6.1 The Proposed Procedures For Classifying Intrusion

The proposed procedure for classifying intrusion on KDDcup99 dataset is shown in algorithm 1 according to multi-operations and multi-layer classifier. Multi-operations can be comprised into the following steps:

  • Prepare dataset: take the sample of 10% kddcup99 dataset using K-fold cross- validation  process  to divide the dataset into three subsets of equaled size (k=3). Each time, one of  the  k  used  as  testing  data  is about  one-third  of records  and the remaining one for training data is about two-thirds of records.
  • Normalization: Normalization is utilized  on continuous  features  by  making  the values of feature in domain 0 to 1, lead to enhance  effectiveness  of  the  system  .
  • Discretization: it is  used  utilized  convert  the  continuous attributes  to  discrete attributes lead to speed of the process.

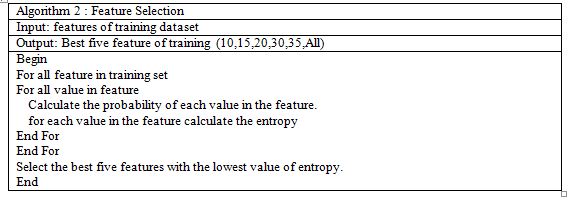

  • Feature selection technique: procedure for determining the relevant feature by reducing the computation time and selecting the best feature as display in algorithm 2.


7, Results


The Dataset includes  41  features with  a  label  to determine  the  type  of  each record whether  normal  or  type  of  attack  traffic.  In  addition  to  the  main  class attribute of 23 subclass types in dataset, two features of class categories have  been  added  to  the  data and reach up to 44 attributes according to the  23  subclass  to  their  main  class  type  of normal and abnormal traffic as  shown  in  Table  2.  These features  are  treated  as  class  category  which  are  used  in  the  experiments  of  the  system.  Kddcup99  dataset will be split  randomly  into  two  non-overlapped  parts  329,510 records   of   training   data   and   164,510   records  of  testing  data. According to   the  cross  validation  procedure,  the  data  is  splitted  into 3  equal  bins  of  folds  approximately.  Training and testing data are performed in k times. In first layer, fold 1 is reserved for the test data and  the  remaining  folds  (fold2,  fold3)  are  used  to  train  using  Naïve bays classifier.  The second  layer,  fold  2  is  reserved  for  the  test  data  and  the  remaining folds (fold1, fold3) are used to train using backpropgaion classifier , the third layer, fold 3 is  reserved  for  the  test  data  and  the  remaining  folds  (fold1,  fold2)  are used to  train using ID3. Evaluation  metric  in terms  of  accuracy  are used  for  evaluating  the  efficiency  of  the  suggested system.

The experiments showed  that  after examining  the  results  of  the data, it was found that the accuracy of a  multi-layer classifier with  three  classifiers as shown in Table 5, Table 6 and Table 7  was  better  than  the accuracy by using one classifier. If one classifier as ID3 was adopted as a  single  part,  it  does  not  give  a  precision index  and  the  second  one of  Naïve  Bayes  classifier.  Especially, in  the  case of  equal  values  in  the results  or  assigned  number after  the  interval,  therefore  it  will  use more than one level  to give  a  better decision  from  a  single  classifier  where it increases accuracy, especially applications that rely on accuracy such as intrusions.

Table 5: Total Accuracy for First Layer

Table 6: Total Accuracy for Second Layer


Table 7: Total Accuracy for Third Layer



The performance of  proposed procedure showed  that  the  total accuracy in the first  layer  selecting  30  features  had  best  results, the total accuracy in second layer and third layer selecting  25 features  had  best  results as described in Figures 3.

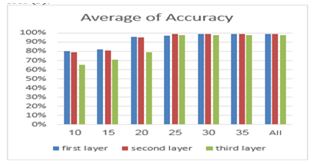

Fig 3: Average  Accuracy of Three Layers

The  result  of the first layer, second layer and third layer were compared and evaluated with criteria FAR, specificity, sensitivity and time in minutes for 25 features as shown in Table 8. Table 9 displays the comparison of experimental result between the prior studies and proposed system.

Table 8: FAR, Specificity, Sensitivity and Time for Multi-classifier=

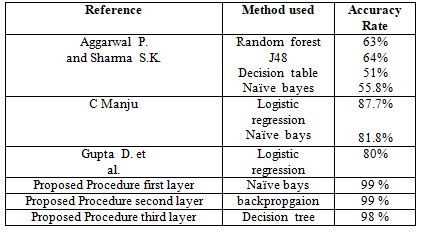

Table 9: Comparison of Related Work and Proposed System.


7. Conclusions


False alarms are a big problem in intrusion detection.This paper handled false alarms in intrusion detection by presenting a proposed multi-operations and multi-layer classifier. Depending on the results of the proposed approach to classify the type of intrusion and classifying them into their subclasses of intrusion. There are several conclusions from our study, The use of  supervised  machine learning classifiers  such as  Naive Bayes,  ANN,  and  decision  tree  give the high  efficiency  and accuracy for the proposed approach. Using  cross validation  technique  estimates and compares the performance of  different  algorithms and  finds  the best  one from available  data. Since it is very large dataset, we applied the cross validation technique to avoid falling into over fitting. The performance showed that results obtained from three consequent classifiers are better than single classifier.The accuracy reached 98% based on 25 features instead of using all features of KDDCup99 dataset.

References


[1] Vaidya  h.,  Mirza  SH.,  and  Mail  N.,”Intrusion  System”, International  Journal  of  advance  research  in  engineering, science and technology,  e-ISSN:2393-9877,  p-ISSN:2394-2444,vol  3,  Issue  3, Mar 2016.

[2] Nadiammai  G.V  and  Hemalatha  M.,”Effective  Approach  Toward Intrusion  Detection  System  Using  Data  Mining  Techniques”, Elsevier  B.V. Egyption Informatics Journal, 2014.

[3] Islam  A.  and  Islam  M.,   “A  Novel  Signature_Based  Traffic     Classification   Engine   Reduce   False   Alarms   in   Intrusion Detection  systems”,  International  Journal  of  Computer  Networks and Communications (IJCNC) vol 7, No.1, Jan 2015.

[4] Al-Saedi  K.  and  Manickam  S.,  “research  proposal:  An  Intrusion Detection  System  Alert Reduction and Assessment Framework Based  on  Data  Mining”,  Journal  of  Computer  Science,  9(4):421-426,2013.

[5] Dult,  I.  and  Dr.Borah  S.  “Some Studies  in  The  Intrusion Detection  Using  Data  Mining Techniques”.   International Journal   of  Innovative   Research   in   Science,   Engineering   and Technology, 4(7), 2015.

[6] Novakovic,  J.,  Strbac  P.  and  Bulatovic,  “Toward  Optimal  Feature  Selection  Using Ranking Methods and Classifications Algorithms”. Yugoslav Journal of operations research, 2011.

[7]Goeschel  K.,  “Reducing  False  positives  in  Intrusion Detection systems using Data-Mining Techniques utilizing Support Vector Machines, Decision Trees and Naïve Bayes for off-line analysis”, IEEE,  International  Conference  on  30  March-3  April  2016,  USA,  7506774,  July  2016.

[8] Mahmood D.Y., “Classification Trees with Logistic Regression Functions  for  Network  Based  Intrusion  Detection  System”, (IOSR-JCE)  Journal  of  computer  Engineering,  e-ISSN:  2278-0661, p-ISSN: 2278-8727,  vol 19, Issue 3, pp 48-52, June 2017.

[9]Belavagi  M.C.  and  Muniyal  B.,  “Performance  Evaluation  of Supervised    Machine    Learning    Algorithms    for    Intrusion Detection”,  (IMCIP)  International  Multi-conference  on  Information Processing-2016, Elsevier,  vol 89, pages 117-123, 2016.

[10] L. Duan and Y. Xiao, “An Intrusion Detection Model Based on Fuzzy C-means Algorithm,”,  8th International Conference on Electronics Information and Emergency Communication (ICEIEC), Beijing, pp. 120-123. (2018)

[11] Wang, Zheng. “Deep learning-based intrusion detection with adversaries.” IEEE Access 6 , 38367-38384.(2018):

[12]Raheem Esraa and Saleh Alomari ,”An Adaptive Intrusion Detection System by using Decision Tree Osamah Adil”, Journal of AL-Qadisiyah for computer science and mathematics Vol.10 No.2,(2018).

[13]Siddiqui M.K. and Naahid Sh., “Analysis of Kdd cup 99 Dataset Using  Clustering  Based  Data  Mining”,  International  Journal  of database theory and application, pp.23-34, vol.6, No.5(2013).

[14]Tavallaee  M.,  Bagheri  E.,  Lu  W.  and  Ghorbani  A.A,  “A  Detailed Analysis  of  the  Kdd  Cup  99  Data  set”,  proceedings  of  the   IEE   symposium   on   computational   intelligence   in   security   and defense applications ,2009.

[15]Nelcileno  A.,    R.  Oliveira,    A.  Akira  Shinoda,  B.  Bhargava,  “Identifying  Important  Characteristics  in  the  KDD99  Intrusion  Detection  Dataset  by  Feature  Selection using a Hybrid Approach”, pp:2, 2010.

[16] Mahbod T., E. Bagheri, Wei Lu, and A. A. Ghorbani ,” A Detailed Analysis of the KDD CUP 99 Data Set”, p.2, 2009.

[17] Brifcani  A.M.A.  and  Issa A.S., “Intrusion Detection and Attack Classifier  based  on  Three  Techniques: A Comparative Study”, Journal  of engineering  and Technology, Vol.29, No.2, 2011.
