AN EFFICIENT MCOMPUTE THE RATE MATRIX FOR MULTI-SERVER RETRIAL QUEUES WITH CLOUD COMPUTING SYSTEMS

Dang Thanh Chuong1, Hoa Ly Cuong1, Hoang Dinh Long2
and Duong Duc Hung3

1Faculty of Information Technology, University of Sciences, Hue University, Vietnam
2University of Education, Hue University, 32-34 Le Loi St., Hue, Vietnam
3Hue University, 03 Le Loi St., Hue, Vietnam

ABSTRACT

This study presents the usage of retrial queues with cloud computing systems in which the operating unit (the server) and the storing unit (buffer) are independently considered. In fact, the tasks cannot occupy the server to the system. Instead, they are stored in the buffer and sent back to the server after a random time. Upon a service completion, the server does not always get to work while waiting for a new task or a task from the buffer. After the idle time, the server instantly starts searching for a task from the buffer. The analysis model proposed in this study refers to a retrial queue system searching for tasks from theorbit with limited size under a multi-server context, and the model is modelized into the 3-dimension Markov chain. The solution is based on building an algorithm under the analytical methodology of the quasi birth-death (QBD) process that utilizes the Q-matrix to calculate the probability of states toward the proposed model.

KEYWORDS

3-Dimension Markov Chain, Cellular Mobile Networks, Cloud Computing, Quasi Birth-Death (QBD) Process, Retrial Queueing.

1. INTRODUCTION

Retrial queueing requently occurs in all aspects of our life. The characteristic of the retrial is that customers are relocated to an orbit, a queueing for retrial customers that continually repeat demand for services after failure [1]. Numerous articles dealing with retrial queueing accept that the servers share either fresh calls or repeated calls from an orbit. Phung-Duc et al. proposed the models with two-way communication [2]-[5]. Innovated servers, in some of other cases, are to search blocked calls to serve [6]-[13]. It is assumed that after serving a customer, the server is vacant in a given interval and searches for the blocked customer later. In idle time, if a fresh or repeated call arrives, it will be served immediately. The servers seek a retrial customer with exponential distribution after idle time. At that moment, they are unable to serve other customers. This means that if a new customer arrives, they will be moved to the orbit. After the search time, the customer successfully searched is served. Otherwise, the servers remain idle [12],[13].

The fact is that, cloud computing is available for resources, particularly the capability of storage and computing without user’s management. This term is used to represent the available data center for users. Big data clouds allocate resources to different directions from the data centre. If users are closely connected, the servers are assigned. The cloud restricted to an organization is called private cloud, while the cloud available for organizations is called public cloud. Cloud computing shares resources to maintain the coherence and economies of scale.

The proposed model will be used to analyze retrial queueing in cloud computing platforms with separate processing and storage units[14]-[17]. The processing unit serves only one customer at a specific time. The freshly arriving calls are stored in a buffer if all servers are busy. When finishing serving a customer, a server remains idle for a while, waiting to select a particular customer from the buffer. The idle interval is called the search time. The whole is modelled by utilizing a retrial queueing for searching calls that follow a solution [1].

There were research works involving retrial queueing. Artalejo et al. [6] investigated the retrial queueing by searching customers in the orbit. Specifically, after serving a customer, the server promptly selects another customer from the orbit with the probability 𝑝 or remains idle with the probability 1−𝑝. This is similar to the model in which the server picks a customer from the orbit. In the model, there is, nevertheless, no idle and searching time.

In [9], the authors considered the retrial queueing 𝐵𝑀𝐴𝑃/𝐺/1 with customers that arrive following the BMAP process. Individuals who arrive following the batch when all servers are busy proceed to the orbit. While the customers that access the system after the batch are promptly served, the rest is transferred to the orbit. The customers from the orbit repeatedly attempt to attain success with the inter-arrival time following the exponential distribution based on the number of customers in the orbit. On the other hand, the mechanism of searching clients can be activated at the moment the server just concluded a customer with the given probability, depending on the number of customers in the orbit.

The searching time is stochastic and seems to depend on the number of customers in the orbit. The customer picked after the search process is immediately served if some of the servers are vacant [4]. It is assumed that the service time follows the general distribution regardless of retrial customers from the orbit. The notation of the general distribution is 𝐺. Artalejo and Phung-Duc [4],[5] examined the model with two cases in which, after idle time, the server handles outcoming calls with the inter-arrival following the exponential distribution. This is regarded as the search time in the model of this article. After an outcoming call, the server is, notwithstanding, available. For example, there is no customer to pick out. Other articles reported that the retrial rate and the number of customers in the orbit are linear functions [18], [19].

In this paper, we model the mechanism that operates after the server’s free time [12]. This means that the mechanism that searches for a customer is immediately initiated after the server’s vacant duration. Accordingly, the model in which the platform of cloud computing employs the retrial queueing, is considered where the processing and storage unit are separated. The researches in [22]-[26] mainly base on a 2-dimensional Markov to build models.

The main result of the paper is proposed the multi-server with the orbit’s limited buffer in cloud computing systems. The model applies a 3-dimensional Markov chain combined with the quasi birth-death process to work out possibility of blocking. We have also built an algorithm for computing the blocking probability of the system based on the construction of the 3-dimensional infinitesimal generator matrix Q to compute steady-state probabilities corresponding to the quasi birth-death process of the proposed model in the article. The disparity is that the number of the servers that are serving a repeated customer or a fresh customer and the number of the servers that are searching for a customer in the orbit are considered.

The organization of the article is as follows, In Section 2, the detailed problems with the proposed model and an algorithm for computing the blocking probability. The analysis results will be presented evaluated the model performances in Section 3 and the conclusion is presented in Section 4.

2.ANALYSIS MODEL FOR MULTI-SERVER CLOUD COMPUTING SYSTEM

2.1. Problems

We concentrate our attention on the retrial queueing for cloud computing, in which the processing units (the servers) and the storage units (the buffers) are separately considered as in [12]. Accordingly, a processing unit is capable of serving one and only one customer at a particular moment. Thus, a call arriving while all servers are active is stored in a queueing (a buffer), and by then, it reattempts to be served. Successfully executing a mission, the server is accessible, and the processing unit seeks a job from the queueing within a specified interval. Such periods are commonly called search time. In earlier works [6],[9], the idle time and search time are discrete. As a result, the computational model represents the mechanism that the search time is allowed after the server’s idle time [12]. The system employs retrial queueing with searching customers. Compared with the model in [13], the innovation point is the extension with the multi-server.

2.2. The model and Parameters

2.2.1. Some assumptions of the Model

The analytical method is based on the followings:

• The customers to be served arrive to the server with the average rate 𝜆.
• The service time for arriving customers follows the exponential distribution with the average time 1/ν1, or in other words, the average rate is ν1.
• After completing a task, the server remains vacant with the interval following the exponential distribution with the average time 1/𝛼.
• During idle time, a client, regardless of repeated clients or fresh clients, entering the service, is immediately served.
• Thereafter, the server continues seeking a customer in the orbit. Also, the search time follows the exponential distribution 1/ν2, or the average rate ν2.
• Arriving while all servers are busy, a customer is transferred to the orbit in order to be returned in the exponential average time 1/μ, or the average rate μ.

2.2.2. The analytical method for the Single server

The analytical method is similar to the model in [12], but the main difference is that the orbit size in this model is limited (0≤𝑁(𝑡)≤𝐿).

Let 𝑆(𝑡)(𝑡≥0) denote the server state at the moment 𝑡. Accordingly, we also define the server states as [1]:

Let 𝑁(𝑡)(𝑡 ≥ 0) denotes the number of customers in the orbit at the moment 𝑡≥0. Then, {𝑋(𝑡)=(𝑆(𝑡),𝑁(𝑡)),𝑡≥0} forms the Markov chain in the state space 𝒮={0,1,2}×{0,1,2,…,𝐿}. The state transition diagram is shown in Figure 1. We assume that the system is stable, which means that the steady-state probabilities subsist. The necessary and sufficient condition for the stable system is 𝜆<𝜈1that will be used in the following analyses [12].

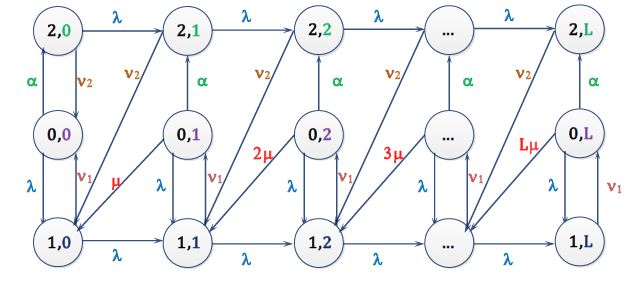

Figure 1.The state transition diagram for the single server

Let 𝜋𝑖,𝑗=𝑃[𝑆(𝑡)=𝑖,𝑁(𝑡)=𝑗] are the balance probabilities at the state (i,j). The state transition matrices 𝐴𝑗, 𝐵𝑗 and 𝐶𝑗, 3×3 matrixes, represent the steps in Figure 1 [1]:

(a). 𝐴𝑗(𝑖,𝑘) denotes the transition rate from the state (𝑖,𝑗) to the state (𝑘,𝑗) (0≤𝑗≤𝐿;0≤𝑖,𝑘≤2) which is caused by the fact that the server is idle, serving a client or seeking for a customer from the orbit (in case of 𝐴0). The 3×3 matrix 𝐴𝑗 with entries 𝐴𝑗(𝑖,𝑘) is written as

(b). 𝐵𝑗(𝑖,𝑘) denotes the transition rate from the state (𝑖,𝑗) to the state (𝑘,𝑗+1) (0≤𝑗≤𝐿−1;0≤𝑖,𝑘≤2) which is caused by a rejected demand due to the fact that the server is serving or is searching for a customer. The 3×3 matrix 𝐵𝑗 (or 𝐵) with entries 𝐵𝑗(𝑖,𝑘) is written as

(c). 𝐶𝑗(𝑖,𝑘) denotes the transition rate from the state (𝑖,𝑗) to the state (𝑘,𝑗−1) (1≤𝑗≤𝐿;0≤𝑖,𝑘≤2) which is caused by the fact that a customer returning from the orbit is served by the idle server, or a client in the orbit is successfully searched. The 3×3 matrix 𝐶𝑗 with entries 𝐶𝑗(𝑖,𝑘) is written as.

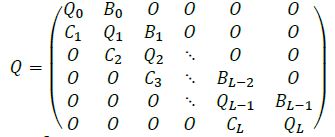

The infinitesimal generator matrix Q is given by:

where𝑄_𝑗=𝐴^j−𝐷^𝐴𝑗−𝐷^𝐵−𝐷^𝐶𝑗, (1≤𝑗≤𝐿−1), trong đó:

Note that: 𝑄₀=𝐴₀−𝐷^𝐴₀−𝐷^𝐵 và 𝑄_L=𝐴_𝐿−𝐷^𝐴_𝐿−𝐷^𝐶_𝐿.

Let 𝜋𝑗=(𝜋₀,𝑗,𝜋_1,𝑗,𝜋₂,_𝑗) are the level probability vectors. We obtain the set of balance equations as follows:

𝜋₀𝑄₀+𝜋₁𝐶₁=(0,0,0)

𝜋_𝑗𝐵_𝑗+𝜋_𝑗+1𝑄_𝑗+1+𝜋_𝑗+2𝐶_𝑗+2=(0,0,0), (0≤𝑗≤𝐿−2)
𝜋_𝐿−1𝐵_𝐿−1+𝜋_𝐿𝑄_𝐿=(0,0,0)

The values 𝜋𝑗 are computed by solving the set of the equations (1)-(3) by applying the quasi birth-death process according to the infinitesimal generator matrix Q [20] and [21]. The analysis results are shown after modelling the problem for the multi-server.

2.2.3. The analytical model for the multi-server system

This study proposes an improved model of the single server described above with a limited-size orbit multi-server. Thus, the analytical method utilizes the retrial queueing model 𝑀/𝑀/𝑐/𝐿 (𝑐>1,𝐿>1) [27] with the aforementioned parameters in which each of the servers is regarded as a single server [1-3, 7].

Let 𝑆1(𝑡) and 𝑆2(𝑡) denote the number of the servers that are serving a repeated customer or a fresh customer and those searching for a customer in the orbit, and 𝑁(𝑡) connotes the number of customers in the orbit at the moment 𝑡. It is evident that 𝑋(𝑡)={𝑆₁(𝑡),𝑆₂(𝑡),𝑁(𝑡);𝑡≥0} generates the state space.

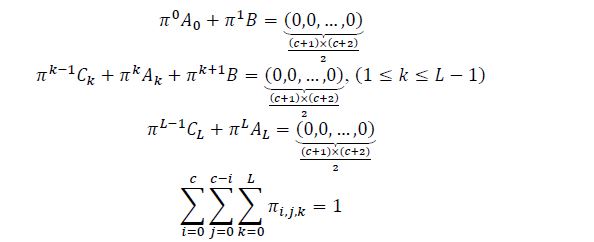

Thenceforth, the infinitesimal generator matrix 𝑄 is a 3-dimensional matrix as in [7][13] (Figure 2):

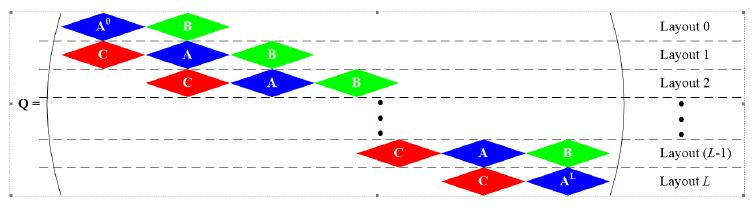

Figure 2. The infinitesimal generator matrix 𝑄 is a 3-dimensional matrix

The matrices 𝐴𝑘(0≤𝑘≤𝐿), 𝐵 and 𝐶𝑘(1≤𝑘≤𝐿) are the (c+1)(c+2)/2 *(c+1)(c+2)/2

matrices. We consider the indexes (𝑖,𝑗,𝑘) corresponding to state transition steps as follows:
1) The values 𝑘 (0≤𝑘≤𝐿) are retained (the state transition rates from (𝑖,𝑗,𝑘) to (𝑖′,𝑗′,𝑘)). The state transition matrices are 𝐴0, 𝐴k and 𝐴𝐿. It is required to compute (𝑖,𝑗) within the range ((𝑖+𝑗)≤𝑐; 𝑖≥0,𝑗≥0)(∗). The number of pairs (𝑖,𝑗) fulfilling (∗) is 𝐶²_𝑐+2= (c+2)(c+1)/2.Also, it is the size of rows (or columns) of 𝐴₀, 𝐴_𝑘 and 𝐴_𝐿. They contain entries following the indices of rows (or columns) as in Table 1.

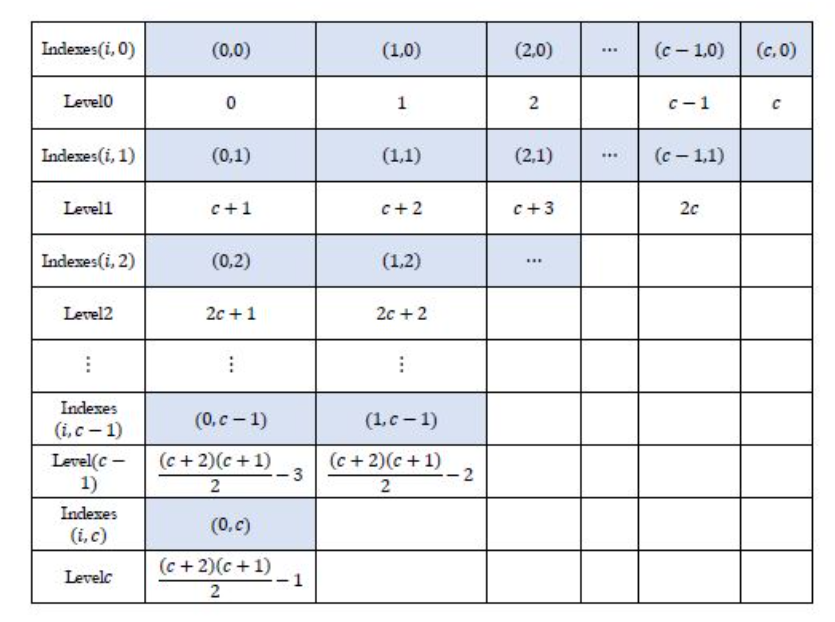

Table 1.The indexes of rows (or columns) of submatrices.. Example of a Petri Net

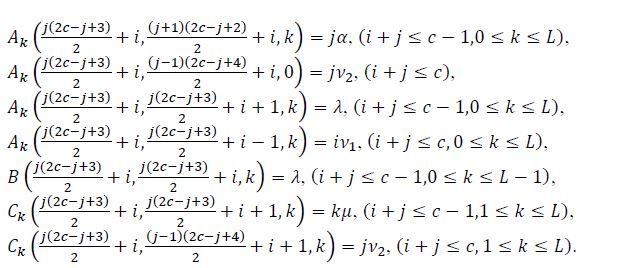

By indexing as mentioned, we compute the general indices (𝑖,𝑗) corresponding to (c+2)(c+1)/2 – (c+1-j)(c+2-j)/2 +i =j(2c-j+3)/2 + i.

The matrix 𝐴0 with its non-zero entries is computed as follows:
o The state transition rates from (𝑖,𝑗,0) to (𝑖,𝑗+1,0),(𝑖+𝑗≤𝑐−1) correspond to the event that a server restores the searching state.

o The state transition rates from (𝑖,𝑗,0) to (𝑖,𝑗−1,0),(𝑖+𝑗≤𝑐) correspond to the event that a searching server becomes idle.

o The state transition rates from (𝑖,𝑗,0) to (𝑖+1,𝑗,0),(𝑖+𝑗≤𝑐−1) correspond to the event that a server enters the searching state because a fresh customer is immediately served by an available server.

o The state transition rates from (𝑖,𝑗,0) to (𝑖−1,𝑗,0),(𝑖+𝑗≤𝑐) correspond to the event that a server has just serviced a customer.

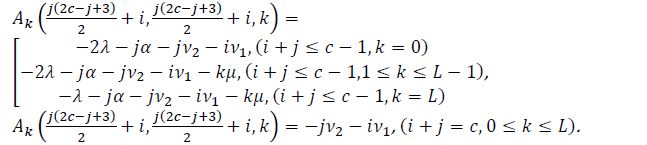

The elements on the main diagonal of matrix 𝐴₀ are:

The matrix 𝐴𝑘(1≤𝑘≤𝐿−1) and 𝐴𝐿 with their non-zero entries are computed as follows:
o The state transition rates from (𝑖,𝑗,𝑘) to (𝑖,𝑗+1,𝑘),(𝑖+𝑗≤𝑐−1) correspond to the event that one more server restores the searching state.

o The state transition rates from (𝑖,𝑗,𝑘) to (𝑖+1,𝑗,𝑘),(𝑖+𝑗≤𝑐−1) correspond to the event that a server has entered the serving state while a fresh customer is immediately served by an available server.

o The state transition rates from (𝑖,𝑗,𝑘) to (𝑖−1,𝑗,𝑘),(𝑖+𝑗≤𝑐) correspond to the event that a server just finished serving a customer.

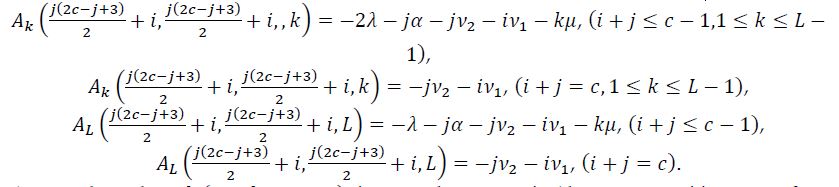

The elements on the main diagonal of the matrices 𝐴_𝑘(1≤𝑘≤𝐿−1) and 𝐴_𝐿 are:

2) The values 𝑘 (0≤𝑘≤𝐿−1) increase by one unit (the state transition rates from (𝑖,𝑗,𝑘) to (𝑖′,𝑗′,𝑘+1)). The state transition matrices are 𝐵𝑘 (or 𝐵). The size of 𝐵 is the same as that of 𝐴0, 𝐴k and 𝐴𝐿. Their non-zero elements are referred hereafter.
o The state transition rates from (𝑖,𝑗,𝑘) to (𝑖,𝑗,𝑘+1),(𝑖+𝑗=𝑐,0≤𝑘≤𝐿−1) correspond to the event that a fresh customer perceives that all servers are busy, and she is transferred to the orbit.

3) The values 𝑘 (1≤𝑘≤𝐿) decrease by one unit (the state transition rates from (𝑖,𝑗,𝑘) to (𝑖′,𝑗′,𝑘−1)). The state transition matrices are 𝐶𝑘. The size of 𝐶 is the same as that of 𝐴0, 𝐴k, 𝐴𝐿 and 𝐵. Their non-zero elements are as follows:
o The state transition rates from (𝑖,𝑗,𝑘) to (𝑖+1,𝑗,𝑘−1),(𝑖+𝑗≤𝑐−1,1≤𝑘≤𝐿) correspond to the event that a repeated customer returns to be immediately served by an available server.

o The state transition rates from (𝑖,𝑗,𝑘) to (𝑖+1,𝑗−1,𝑘−1),(𝑖+𝑗≤𝑐,1≤𝑘≤𝐿) correspond to the event that a customer in the orbit is successfully served by the searching server.

The blocking probability is determined as follows:

From the analyses above, we propose an algorithm for computing the blocking probability as follows:
Algorithm 1:
Input: The state space 𝑆.
Output: The probability 𝑃𝐵 (from equation (8)).
Method:

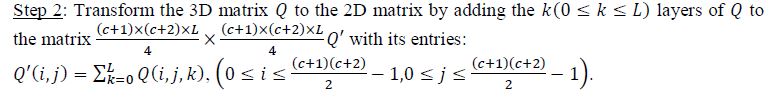

Step 1: Compute 𝑄

• Step 1.1: Formulate the state transition matrices 𝐴_𝑘(0≤𝑘≤𝐿), 𝐵 and 𝐶_𝑘(1≤𝑘≤𝐿) as follows:

Step 1.2: Generate the entries on the main diagonal of the infinitesimal generator matrix Q:

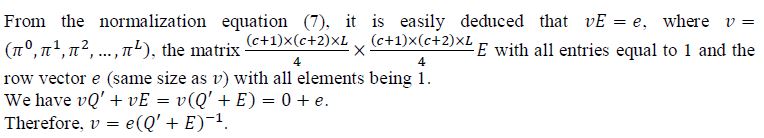

Step 3: Compute the vector 𝑣

Step 4: Determine the blocking probability 𝑃𝐵 according toequation (8).
The complexity of the Algorithm 1is demonstrated as:

• The complexity of formulating the state transition matrices in Step 1.1 is 𝑂(𝑐²𝐿). The
  complexity of generating the entries on the main diagonal of the infinitesimal generator matrix Q
  in step 1.2 is 𝑂(𝑐²𝐿² ). The algorithmic complexity in step 1 is 𝑂(𝑐4𝐿3 ).
• The complexity in Step 2 is 𝑂(𝑐²𝐿).
• In Step 3, it is 𝑂(𝑐6𝐿3 ) to calculating the inverse matrix (𝑄′ + 𝐸)−1, and 𝑂(𝑐⁶𝐿³ ) is for
  the matrix product 𝑒(𝑄′ + 𝐸)−1. Hence, the complexity in step 3 is 𝑂(𝑐¹²𝐿⁶ ).
• The complexity in step 4 is 𝑂(𝑐)
  => As a result, the time complexity of the algorithms 1 calculated with the rules of the addition is
  𝑂(𝑐¹²𝐿⁶ ).

2.2.4. Model illustration:

Consider the case where 𝑐 = 2 and𝐿 = 2.

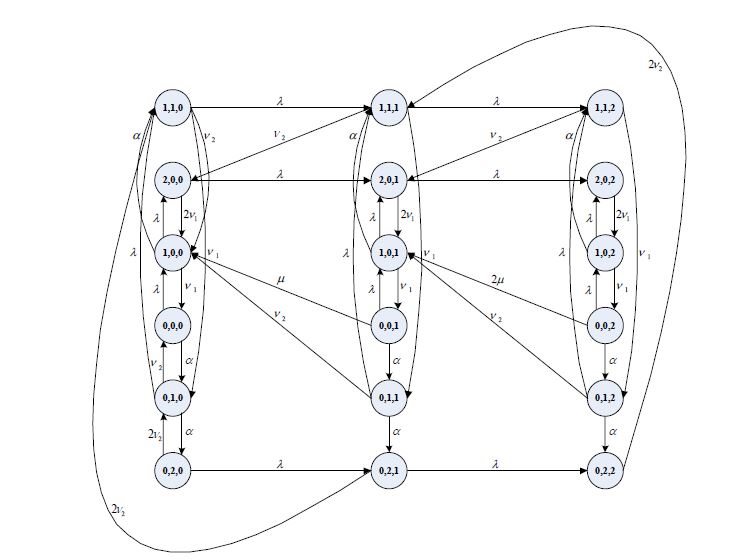

The state transition diagram for a multiserver is illustrated in Figure 2.

Figure 3. The state transition diagram for a multi-server where 𝑐 = 2 and 𝐿 = 2.

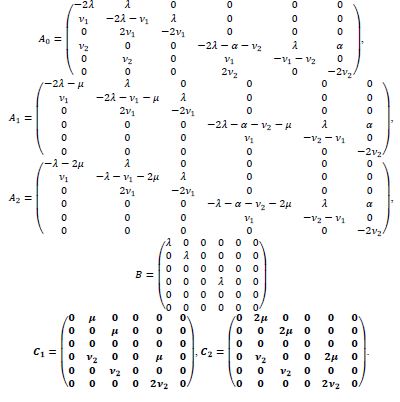

From the diagram in Figure 3, we deduce the submatrices of the matrix 𝑸 as follows:
When c=2 and L=2, the size of the matrices A_k(0≤k≤2), B and C_k(1≤k≤2) is 6×6. It implies that the size of the matrix 𝑄 is 18×18×3.

3.RESULTS

The efficiency of performance as the change of the parameters of the system is firstly considered with the fresh and handover calls. When the blocks occur, the fresh calls reattempt to connect in the intervals of the stochastic distribution. We assume the base station of the cell that can process 𝑐 connections simultaneously. Table 2 enumerates the parameters to analyze the results[13]. The Mathematica program of Wolfram Research [28] is a powerful tool to compute and simulate network models and is utilized in our model.

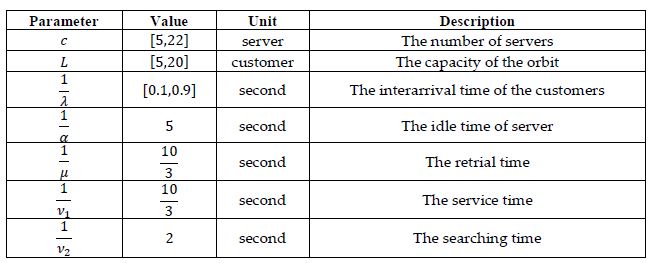

Table 2.The parameters of the model.

We simulate the model with the following parameters: 𝑐=5, 𝜆=2/5 and 𝐿 from 5 to 20. Thus, we came to the blocking probabilities (𝑃𝐵) presented in Figure 4. The higher 𝐿 is, the lower the blocking probabilities can be reached, which is caused by the increase of the orbit capacity.

Figure 4. The blocking probabilities 𝑃𝐵 following 𝐿.

Figure 5 presents the effects when 𝐿=5, 𝜆=2/5, 𝑐 ranges from 5 to 22. As a consequence, the higher 𝑐 is, the slighter the blocking probabilities are obtained, which is appropriate for the initial assumptions because the possibility for the number of the available servers augments.

Figure 5. The blocking probabilities 𝑃𝐵 following 𝑐.

Figure 6. The blocking probabilities 𝑃𝐵 following 𝜆.

Furthermore, to confirm the correctness of the model, we consider the case where 𝜆 fluctuates as presented in Table 1: 𝑐 = 5 and 𝑐 = 1 and the others are default parameters. In comparison with 𝑐 = 1, the instance 𝑐 = 5 provides superior results, and the consequences of 𝑐 = 1 proximate those of 𝑐 = 5 when 𝜆 augments (Figure 6).

4.CONCLUSIONS

The paper proposes a retrial queueing model for the single and multi-server systems in cloud computing. The results reveal that the effect of the model for the multiserver system, which reduces the blocking probabilities with the steady average flow of customers in the orbit, depends on the arrival rate 𝜆. The model in this article is characterized by the queueing 𝑀/𝑀/𝑐/𝐿 with the number of the serving and searching servers. The advantage of the multi-server model is that the blocking probabilities are fairly low compared to the single-server model. The article also proposes an algorithm for computing the blocking probability of the system based on the construction of the 3-dimension infinitesimal generator matrix Q to compute steady-state probabilities corresponding to the quasi birth-death process of the proposed model.
